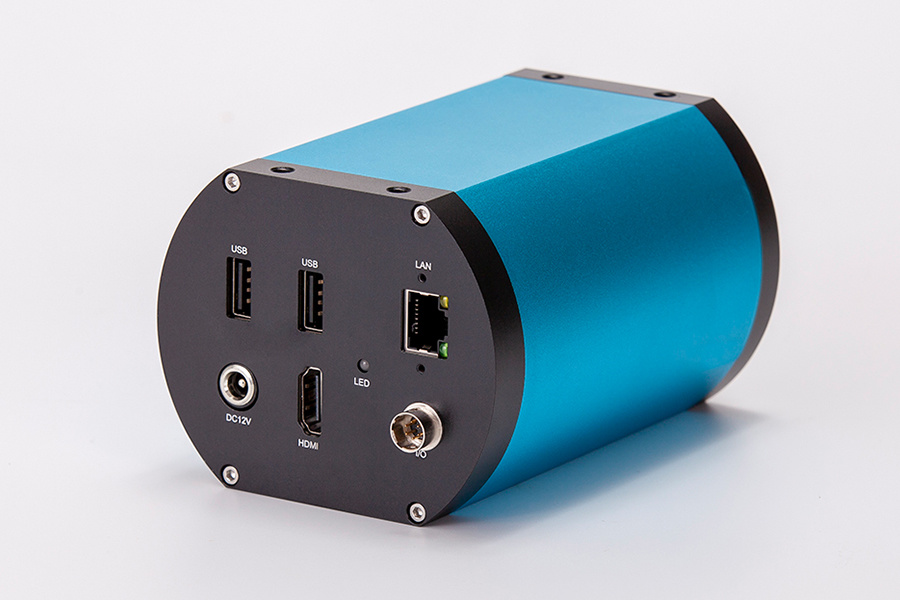

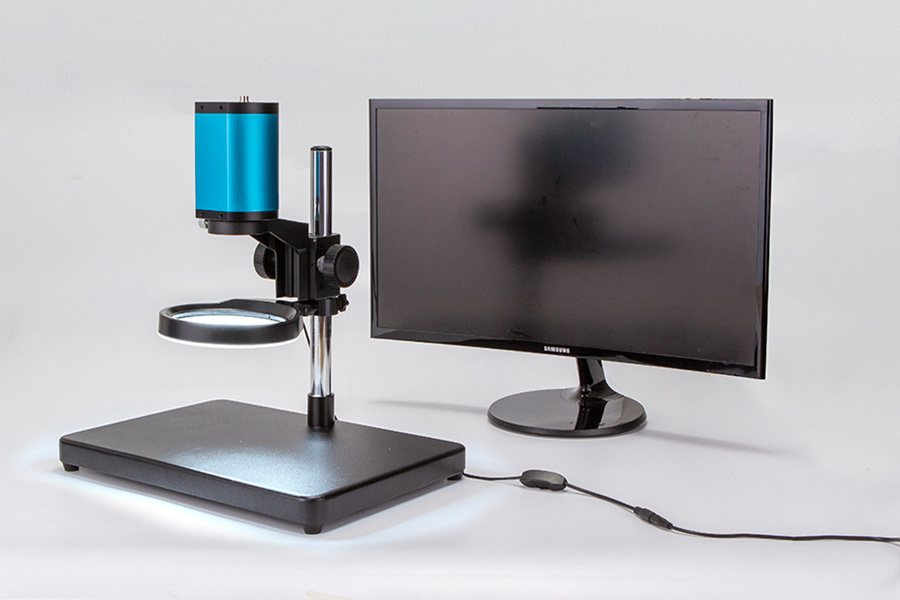

Autofocus Industrial Camera (MSS-C-N313)

  • Commodity name: Autofocus Industrial Camera (MSS-C-N313)
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Product features

    Autofocus 8 MP 4K Industrial camera Matching ultra-high definition infinity lens high speed 60FPS Appearance detection



    ▍Camera Parameters

    Model

    MSS-C-N313

    Sensor type

    Color CMOS

    Effective pixel

    8MP

    Target size

    1/2.8"

    Menu

    All digital UI design

    Operation mode

    Mouse operation

    Power Input

    DC 12V

    Display Interface

    HDMI / network port

    Frame rate

    4K@60fps/4K@50fps

    Scanning mode

    progressive scanning

    White balance

    Manual / automatic / one button

    Exposure mode

    Manual / automatic

    Shutter speed

    1/50s(1/60s)~1/10000s

    Working distance

    10cm~∞

    Optical power

    1~28

    Digital magnification

    1~6

    Storage function

    Support USB2.0/USB3.0



    Magnification

    FOV(10cmW.D.)

    FOV(30cmW.D)

    1X

    171mm*92mm

    420mm*230mm

    2X

    89mm*50mm

    196mm*110mm

    3X

    71mm*40mm

    150mm*84mm

    4X

    60mm*33mm

    116mm*65mm

    5X

    52mm*29mm

    101mm*57mm

    14X

    24.3mm*13.5mm

    45.5mm*25mm

    28X

    12.15mm*6.75mm

    22.75mm*13mm

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
