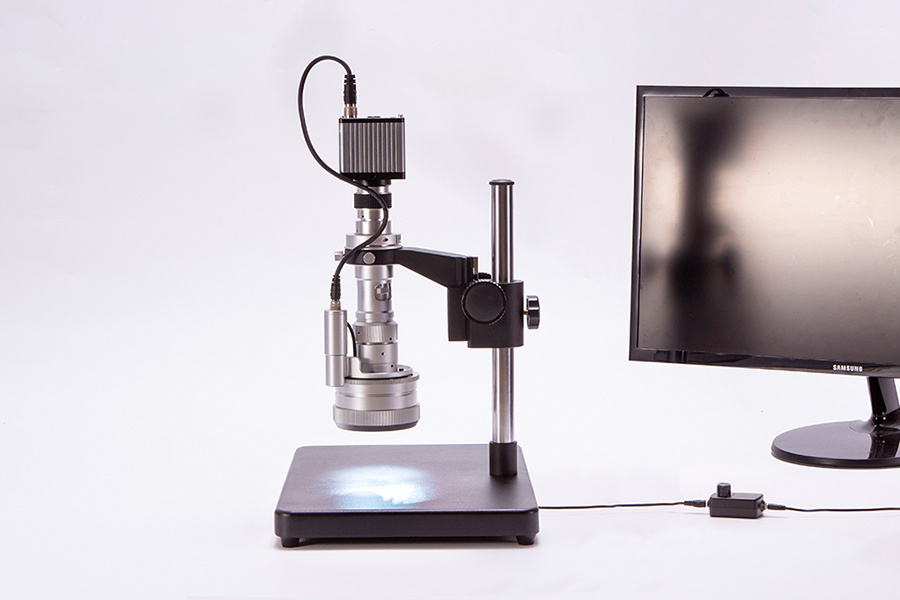

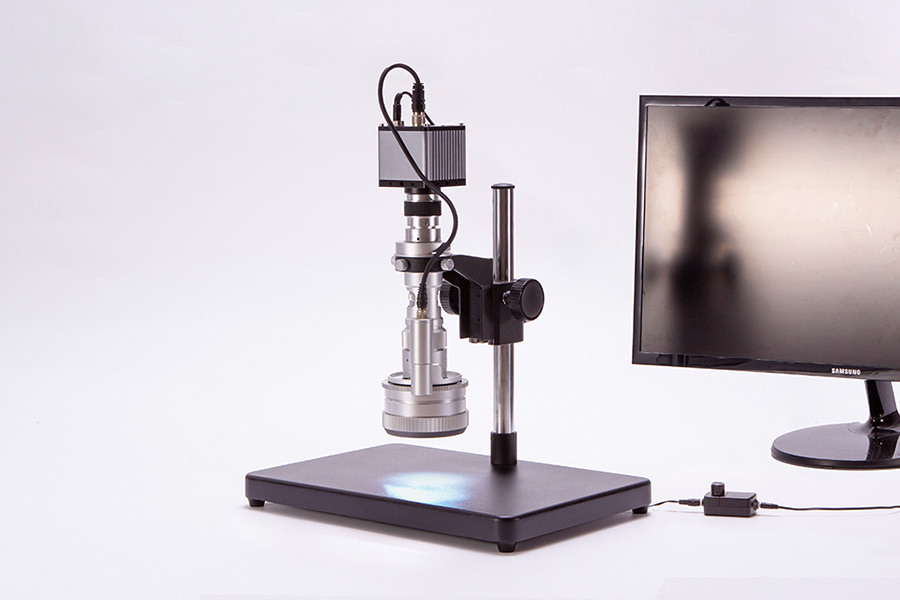

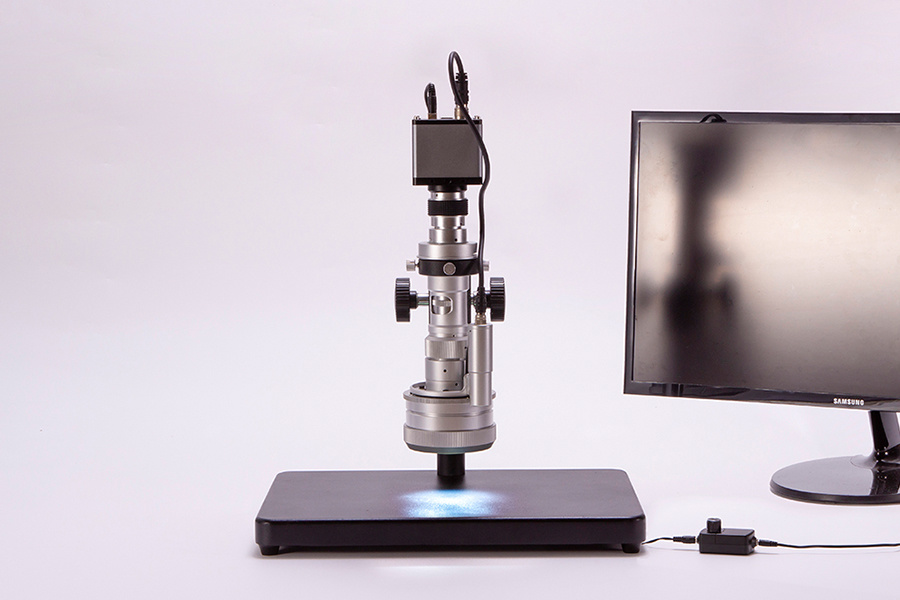

HD Electric Microscope (MSS-M-3D)

Commodity name： HD Electric Microscope (MSS-M-3D)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Product Features
◆ Automatic cruise observation, can select forward and reverse circulation
◆ Programming fixed-point observation can automatically define n positions of interest
◆ Simulate manual observation
◆ Adjustable speed
◆ Visualization of observation angle and direction

▍Video Description

MSS-M-3D high-definition electric microscope, easy to use, 3D image observation, mouse operation, U disk storage, including horizontal and vertical flip, playback and browse, rectangular frame startup positioning, split line setting and other functions, integrated in industrial microscope, widely used in 3C electronics, hardware and plastic and other industries

▍Camera Parameters

Model: MSS-3D-7111
Chip structure	FPGA+ARM	Optical size	1/2inch
operating system	LINUX 3.10	Pixel Size	3.75um*3.75um
Kernel structure	Dual Core Cortex-A9	Image resolution	1920*1080
Dominant frequency speed	1Ghz	Frame rate	60fps
Optical dimensions	1/2inch	white balance	One button white balance
resolution	1920×1080	Suppress strong light selection	Level 3 selection
Frame rate	60fps	Edge enhancement mode	4-level selection
Interface	2 USB interfaces, which can be connected to USB flash disk, wireless mouse or keyboard	Color adjustment	R. G, B independently adjustable
working voltage	12v	Built in crosshair	32 movable lines
working temperature	-10 ° - 70 °	Video output	HDMI digital output
Overall dimensions	717172mm	Lens interface	C
weight	450g	Voltage input	DC 5-12V

▍Lens Parameters

	Total magnification with 24 inch display	22x	30x	90x	140x
Lens optical parameters	Magnification	0.4X	1X	1.7X	2.6X
	view	16*12	6.4*4.8	3.7*2.8	2.4*1.8
	Depth of field	6.7mm	1.3mm	0.57mm	0.32mm
	TV distortion	-0.2%following	0.2%following	0.15%following	0.1%following
	Installation interface	C
	Working distance	46mm
	Viewing angle	30°
Compatible with CCD	1/2”
light source	Continuously adjustable
Motor speed	Continuously adjustable
Power Supply	output:DC12V

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
