Controller

Intel 82599

Baffle Height

Full height & half height

Fiber Type

10000Base-SR, 10000Base-LR, 10000Base-Cu

Power Consumption

8.0W

System Support

Windows 7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019
/2019 R2

Linux Stable Kernel version 2.6.x/ 3.x/4.x or later;

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.0 (5.0GT/s) x8 , compatible with x16

Data Rate Supported per port

10000MbE

Connector

2*SFP+

Standards Compliant

IEEE802.3ae 10 Gigabit Ethernet over fiber
IEEE 802.3x Full Duplex and flow control
IEEE 802.1AS
IEEE 802.1Q VLAN
IEEE 802.3AD
IEEE 1588
IEEE 802.3az - Energy Efficient Ethernet

PXE

Yes

iSCSI

Yes

FCoE

Yes

DPDK

Yes

WoL

No

VMDq

Yes

Jumbo Frames

Yes

RSS

Yes

PCI-SIG*SR-IOV

Yes

Operating Temperature

0 ℃ to 55 ℃ (-13 ℉ to 158 ℉ )

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉ )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

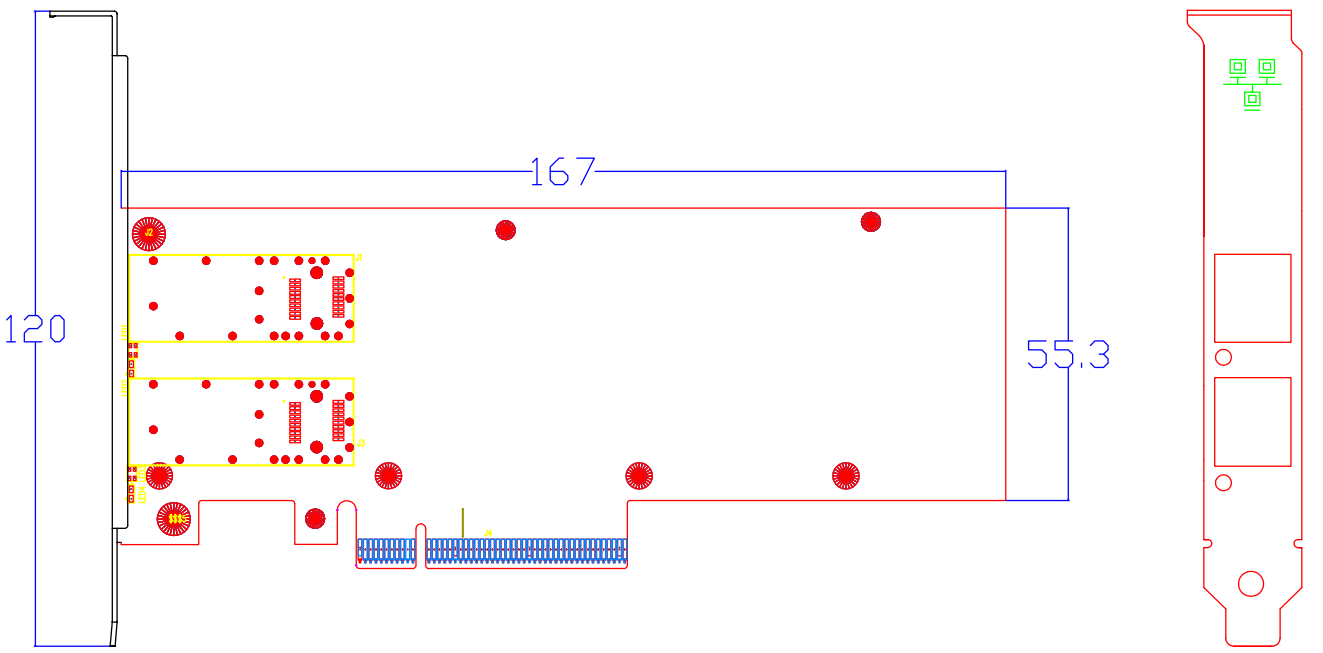

Size(mm)

167*120*21

Weight(g)

115

LED Indicators

Yellow Link + Green Blink

M/N

Description

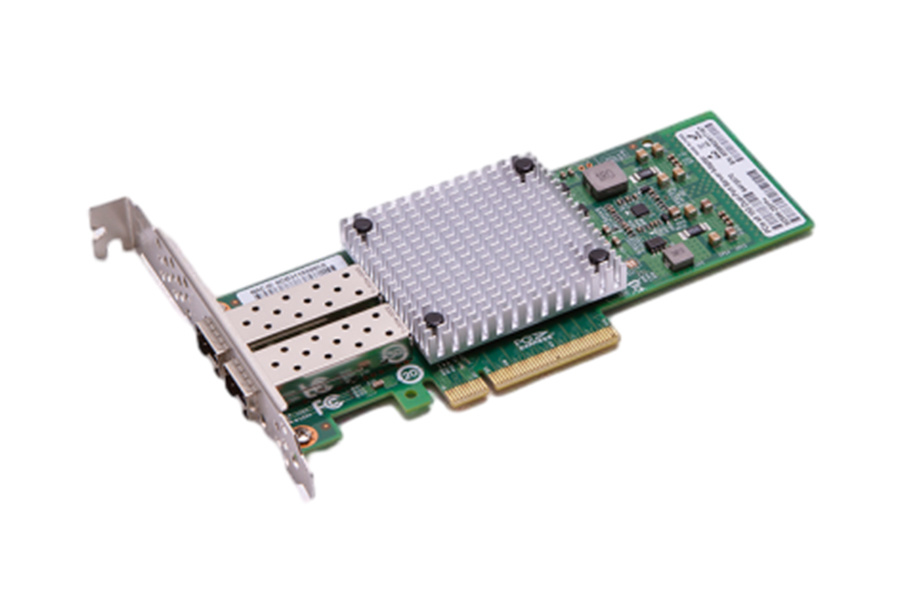

MSS-A-3113QU

PCIe x8 Dual-port 10G SFP+ Ethernet Network Adapter
2*SFP+ (Intel 82599 Based)
