(MSS-L-YX33) Bilateral Telecentric Lens

Commodity name： (MSS-L-YX33) Bilateral Telecentric Lens

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Image distortion due to field of view is small,
greatly improving shape measurement accuracy for parts with depth

●Both side telecentric lens with telecentric structure on both object side and image side.
●There is no image distortion due to the field of view, and shape measurement accuracy for parts with depth is greatly improved.
●Effective when used for more accurate measurements

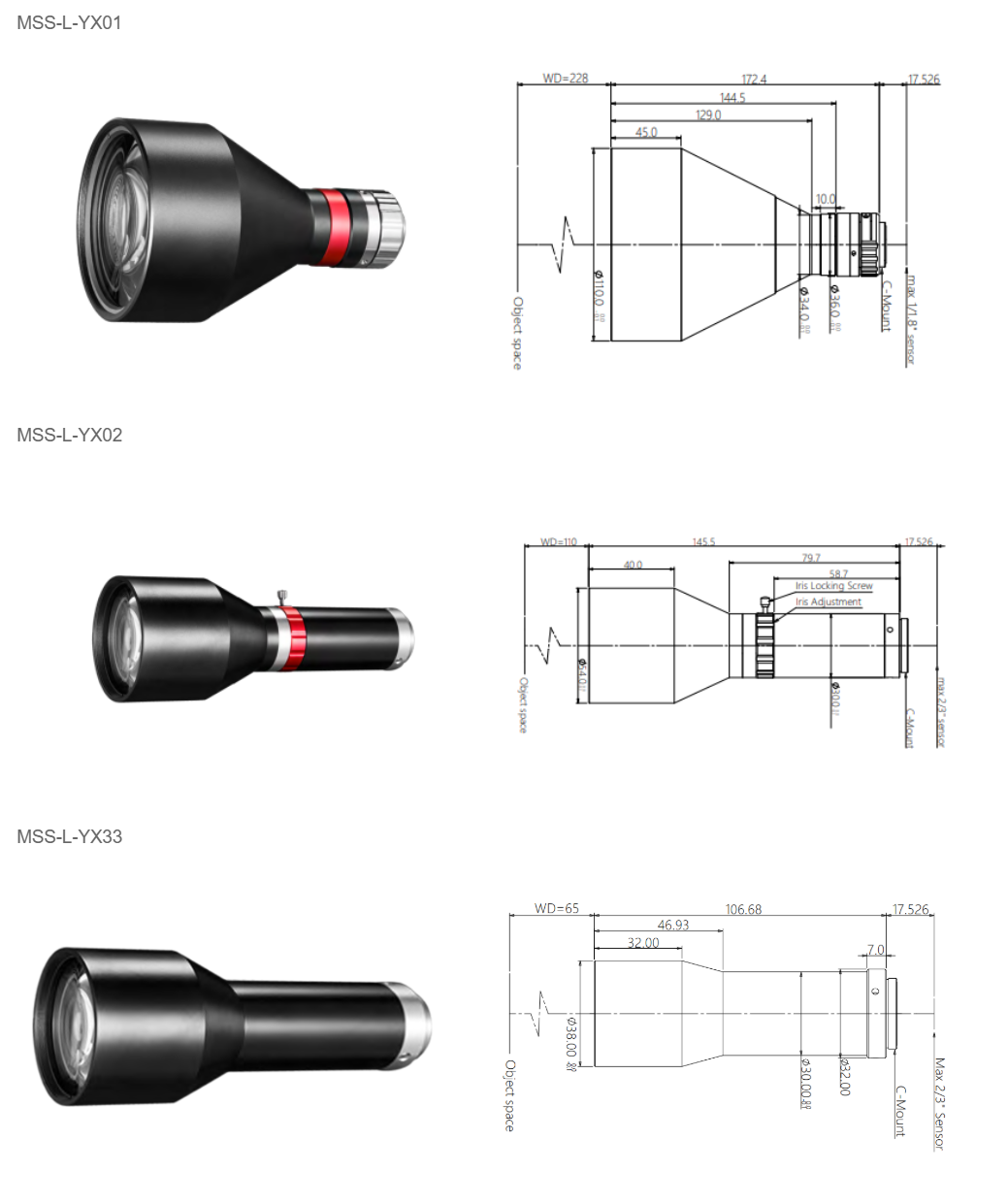

Model	MSS-L-YX01	MSS-L-YX02	MSS-L-YX33
optical magnification	0.1x	0.3x	0.5X
Working distance (W.D)	228mm±4mm	110±2mm	65±1mm
depth of field	34.8mm	6mm	5mm
Numerical aperture (N.A)	0.01	0.04	0.05
optical distortion	0.01	0.01	0.1
Mount	C-Mount	C-Mount	C-Mount
compatible camera	1/1.8"	2/3"	2/3"
Field of vision 1/2inch camera (H x V)	56.8mmx42.6mm	21.3mmx16.0mm	12.0mmx9.8mm
Field of vision 1/3inch camera (H x V)	42.6mmx31.9mm	16.0mmx12.0mm	9.8mmx7.0mm
Field of vision 2/3inch camera (H x V)	-	29.3mmx22.0mm	16.9mmx14.2mm

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
