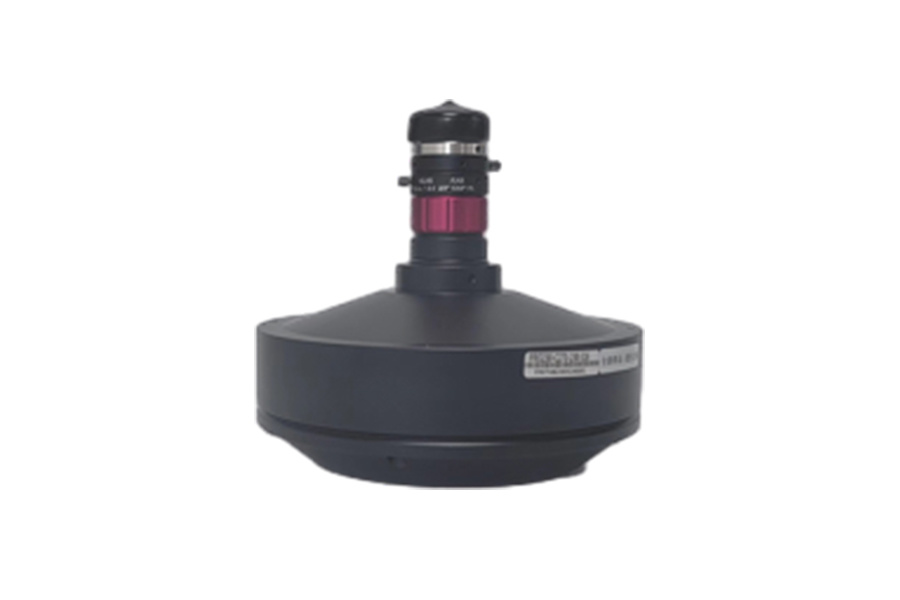

360 ° Catadioptric Lens (MSS-L-T27)

Commodity name： 360 ° Catadioptric Lens (MSS-L-T27)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Compared with the traditional multi view layout recognition mode, the 360 exterior wall imaging system has efficient and energy-saving lenses, as well as clear and stable imaging.

▍Product features
360 ° imaging of small-sized objects, capable of capturing components with diameters as small as 5mm. Ultra wide side shooting angle, with a side view angle of up to 45 ° for shooting objects. Compact and compact, the lens can be easily integrated into any system. Perfect color correction for RGB camera applications and color checks.

Support CCD	Image circle (φmm)	Imaging	Paired with FA lens focal length	Lens mount	Working wavelength(nm)	Detect object diameter(mm)
2/3″	7.07	Primary imaging of the outer wall detection	16mm	C-Mount	450-650	5-30
detection range
Object diameter size(mm)		object height(mm)		work distance(mm)		Is the top and outer walls imaged simultaneously
5		3		41		Outer wall imaging
7		5		39		Simultaneous imaging of outer wall and top
10		6		36		Simultaneous imaging of outer wall and top
15		11		30		Simultaneous imaging of outer wall and top
20		13		24		Simultaneous imaging of outer wall and top
25		18		15		Simultaneous imaging of outer wall and top
30		18		10		Outer wall imaging

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
