WD

Magnifications

Field of View

1/2"

(Length mm×Width mm)

1/3"

(Length mm×Width mm)

150mm

0.086x~0.84x

55.8x74.4~5.7×7.6

42x56~4.3x5.7

200mm

0.06x~0.58x

80×107~8.3×11

60×80~6.2×8.3

250mm

0.045x~0.44x

107×142~10.9×14.5

80×107~8.2×10.9

300mm

0.037x~0.36x

130x173~13.3x17.8

97x130~10x13.3

350mm

0.031x~0.3x

155x206~16x21.3

116×155~12×16

400mm

0.02x~0.25x

185×246~19.2×25.6

138×185~14.4x19.2

450mm

0.023x~0.22x

209x278~21.8×29.1

157×209~16.4x21.8

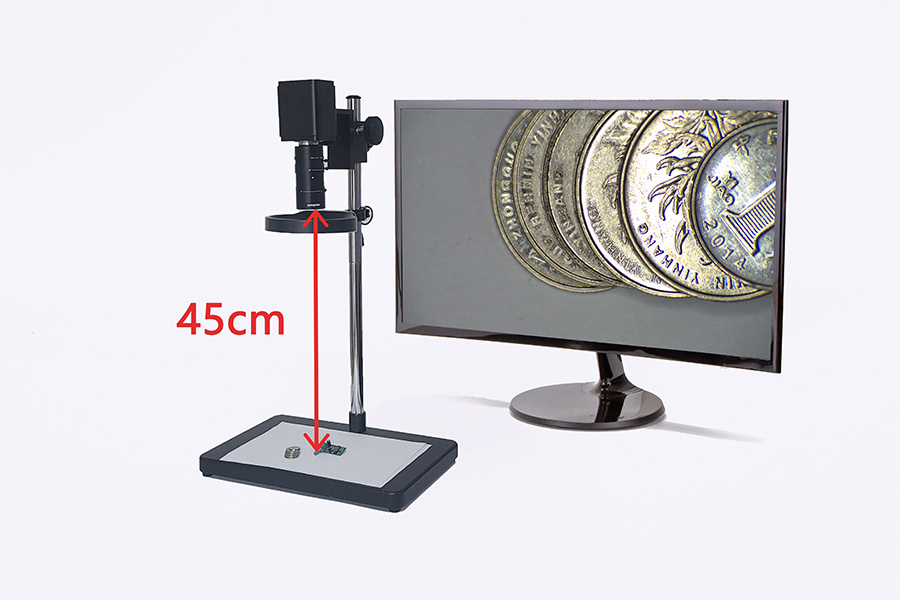

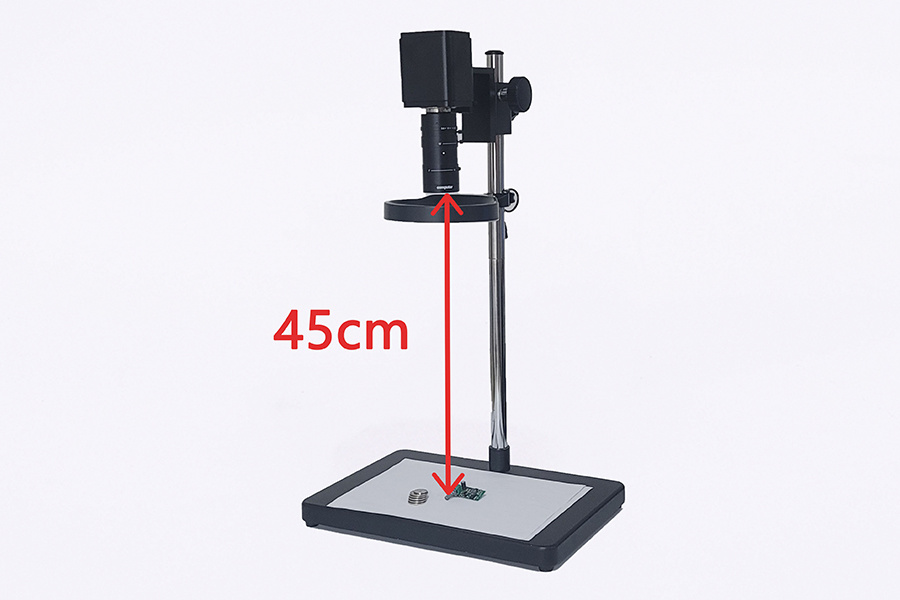

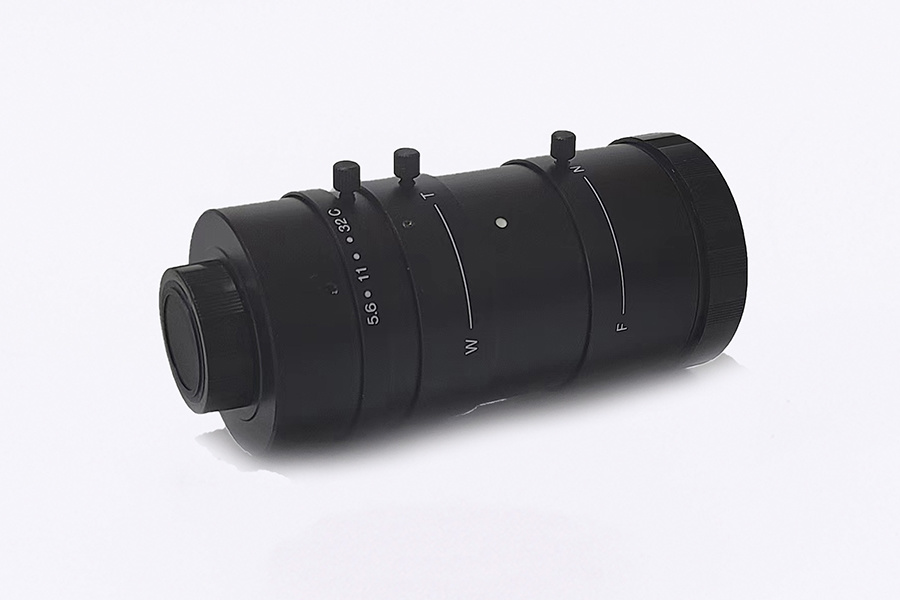

Model

MLH-10X

Magnification

0.084×to 0.84×

(Zoom Ratio of 10:1)

WD

150~450mm

Iris

F5.6~Close

Filter Size

M46 P=0.75

Weight

233g

largest Compatible Camera

1/2"

Model No.

NMY-10X

Effective

Lens Aperture

Front

D30mm

Max.Magnification

0.084mm -0.84mm

Rear

D6.6mm

Max.Aperture Ratio

1:5.6

Back Focal Length

23.29mm

Max.Image Format

6.4mmx4.8mm(28mm)

Flange Back Length

17.526mm

Operation Range

Iris

F5.6-F32C

Mount

C-Mount

Focus

0.15m-0.45m

Filter Size

M46   P=0.75mm

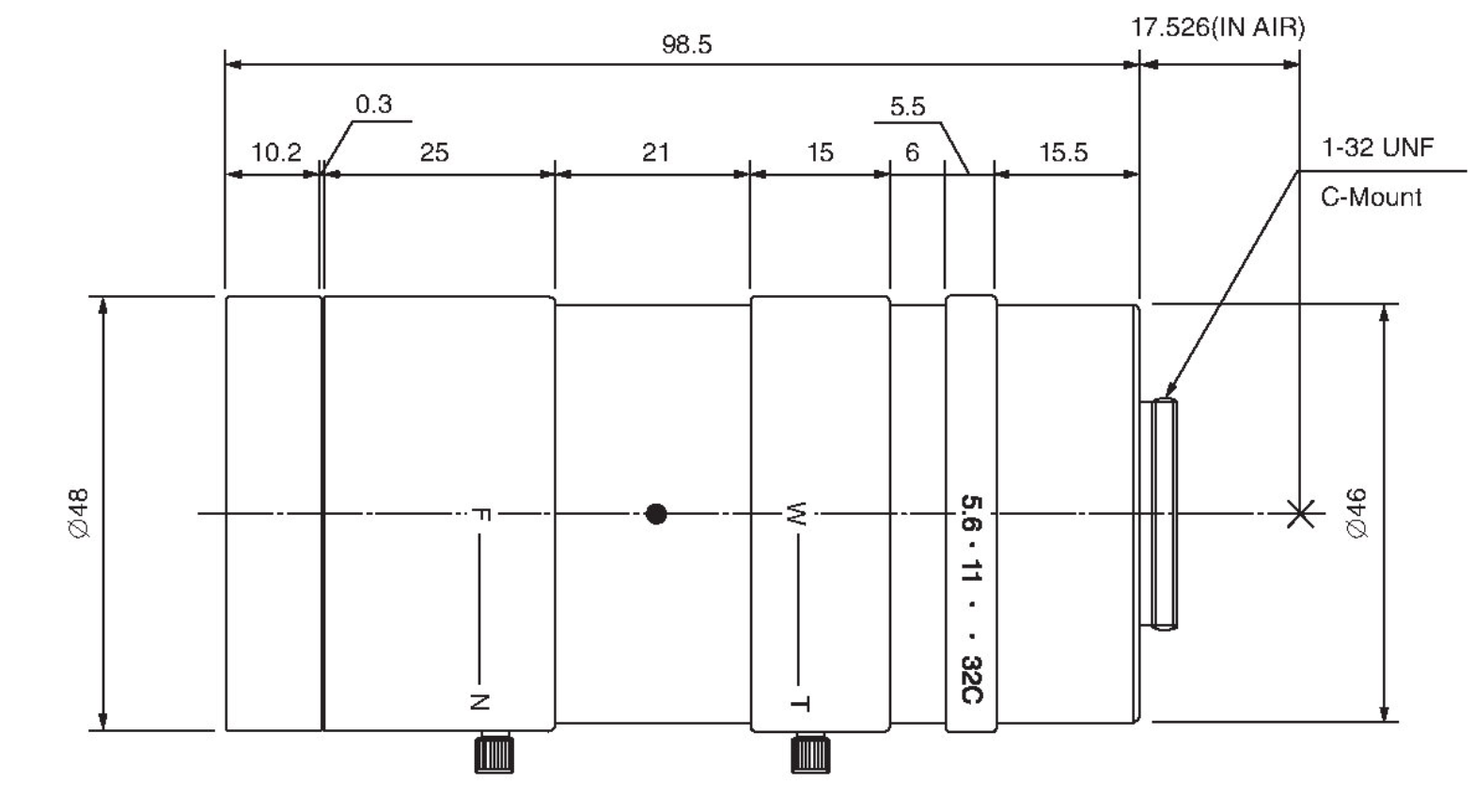

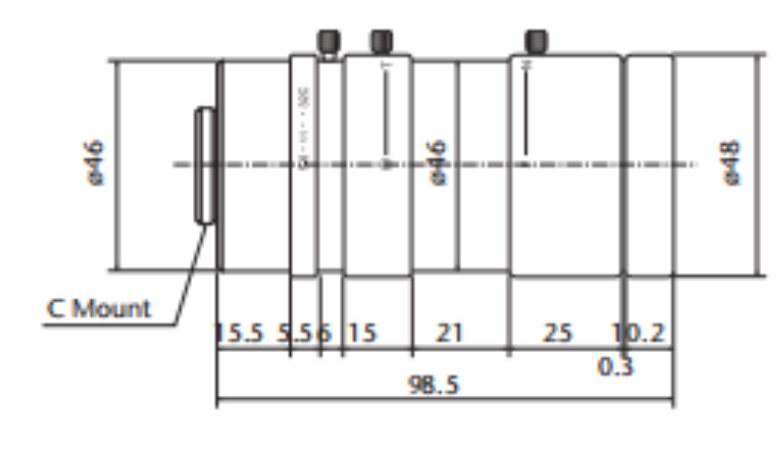

Dimensions

48mm    x98.5mm

Control

Iris

Manual

Weight

260g

Focus

Manual

Zoom

Manual

Object Size(1/2 type CCD)

Working  Distance

152.4mm(6")

92.2mm-9.6mm(D)       74.6mm-7.8mm(H)       56.4mm-5.9mm(V)

457.2mm(18")

349.4mm-34.6mm(D)279.2mm-28.0mm(H)208.8mm           -21.2mm(V)

Object Size(1/3 type CCD)

Working  Distance

152.4mm(6")

70.1mm -7.3mm(D)      56.4mm-5.9mm(H)         42.4mm-4.4mm{V)

457.2mm{18")

261.6mm-26.4mm{D)208.8mm-21.2mm(H)156.2mm-16.0mm{V)

Object Size(1/4 type CCD)

Working  Distance

152.4mm(6")

53.0mm-5.6mm(D)     42.4mm-4.4mm(H)31.8mm-3.4mm{V)

457.2mm(18")

208.8mm-21.2mm{D)156.2mm-16.0mm(H)117.0mm            -12.0mm(V)

Angle of View

D

1/2 type

21.6°-4.5°

1/3 type

17.0°-3.3°

1/4 type

13.0°-2.5°

H

18.0°-3.6°

13.8°-2.7°

10.6°-2.0°

V

13.8°-2.7°

10.6°-2.0°

8.0°-1.5°

Operating Temperature

-20℃-+50℃
