  • MSS-L-NG2518N-5MPF-海康镜头.jpg

MSS-L-NG2518N-5MPF

  • Commodity name： MSS-L-NG2518N-5MPF

Category:

Lens

Email:

shmss@mss-tech.cn

Get Quote
Also Like
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    NG-F series FA Lens are optimized for machine vision light sources and sensors, with high resolution, excellent image uniformity, high transmittance and good stability. Featured with fixed focal length, manual aperture and compact size, it is suitable for machine vision industry applications.


    ▍Key Feature
    · High resolution and consistency of image clarity
    · Lower distortion and higher relative illumination rate
    · Achromatic optical system design and better imaging performance with color camera
    · Excellent performance at high and low temperature
    · Good optical performance at ultra-short working distance

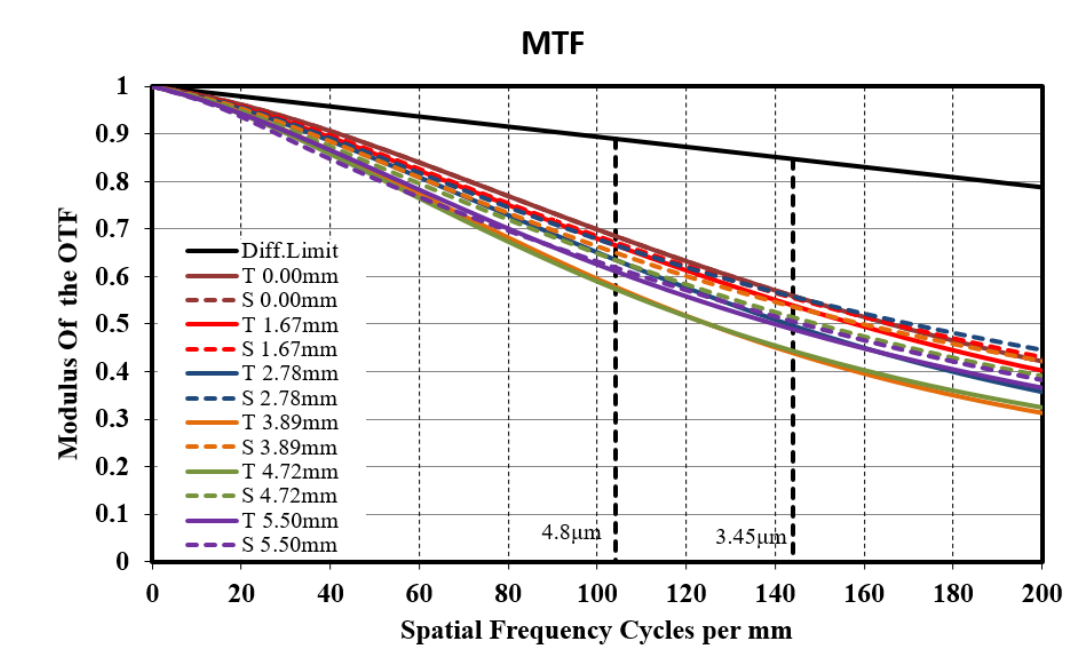

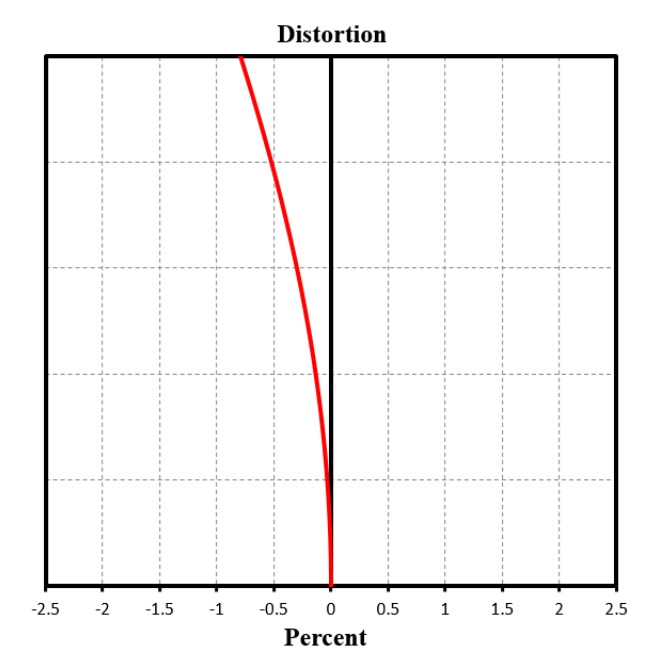

    ▍MTF ▍Relative Illumination ▍Distortion

    Note: The above curves are the simulate results based on F2.4, β=-0.025, WD=300 mm


    ▍Specification

    Model

    MSS-NG2518N-5MPF

    Performance

    Focal length

    25 mm

    F-number

    F1.8 to F16

    Imagesize

    Φ11 mm (2/3")

    Distortion

    0.77%

    Min. object distance

    0.2 m

    Field of view

    D (11.1 mm): 24.26° H (8.45 mm): 18.78° V (7.07 mm): 15.63°

    Mechanical

    Iris control

    Manual

    Focus control

    Manual

    Filter thread

    M27 × 0.5

    Mount

    C-Mount

    Flange back length

    17.526 mm

    Dimension

    Φ29 × 32 mm to 37 mm

    Weight

    54.0 g

    Temperature

    –10 °C to 50 °C (14 ° F to 122 ° F)

    General

    Certification

    RoHS 2.0

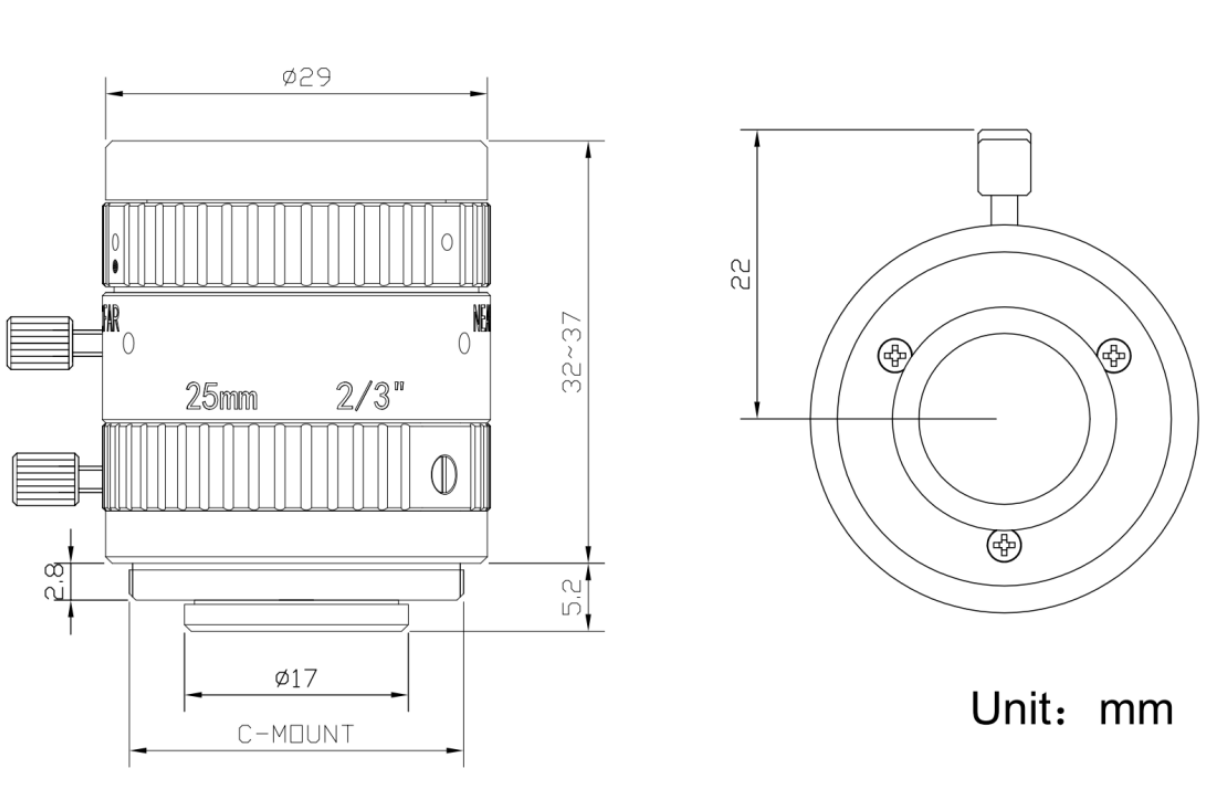

    ▍Dimension


    ▍Field of View



    Extension (mm)

    Working

    Distance

    (mm)





    Magnification

    Field of View (mm)

    2/3"

    1/1.8"

    1/2"

    H

    (8.45mm)

    V

    (7.07mm)

    H

    (7.38mm)

    V

    (4.92mm)

    H

    (6.22mm)

    V

    (4.67mm)

    30

    Near

    24.4

    -1.278

    6.6

    5.5

    5.8

    3.8

    4.9

    3.6

    Far

    25.0

    -1.204

    7.0

    5.8

    6.1

    4.1

    5.2

    3.9

    25

    Near

    27.9

    -1.086

    7.8

    6.5

    6.8

    4.5

    5.7

    4.3

    Far

    29.1

    -1.001

    8.4

    7.0

    7.4

    4.9

    6.2

    4.6

    20

    Near

    33.0

    -0.895

    9.4

    7.9

    8.2

    5.5

    6.9

    5.2

    Far

    35.2

    -0.800

    10.5

    8.8

    9.2

    6.1

    7.8

    5.8

    15

    Near

    40.8

    -0.704

    11.9

    10.0

    10.5

    6.9

    8.8

    6.6

    Far

    45.3

    -0.599

    14.0

    11.7

    12.3

    8.2

    10.3

    7.8

    10

    Near

    54.3

    -0.514

    16.4

    13.7

    14.3

    9.5

    12.0

    9.0

    Far

    65.7

    -0.399

    21.1

    17.6

    18.4

    12.2

    15.5

    11.6

    5

    Near

    83.9

    -0.324

    26.0

    21.7

    22.7

    15.1

    19.1

    14.3

    Far

    127.9

    -0.198

    42.4

    35.4

    37.1

    24.6

    31.2

    23.4

    2

    Near

    128.0

    -0.209

    40.2

    33.6

    35.1

    23.3

    29.5

    22.1

    Far

    324.4

    -0.077

    109.6

    91.6

    95.7

    63.6

    80.5

    60.4

    1

    Near

    156.0

    -0.171

    49.3

    41.2

    42.9

    28.5

    36.1

    27.1

    Far

    689.6

    -0.036

    234.4

    195.9

    203.8

    135.6

    171.6

    128.7



















    0

    200

    -0.133

    63.5

    53.0

    55.4

    36.8

    46.6

    34.9

    250

    -0.105

    80.5

    67.3

    70.2

    46.7

    59.1

    44.3

    300

    -0.086

    97.6

    81.5

    85.1

    56.6

    71.7

    53.7

    350

    -0.073

    114.7

    95.8

    100.0

    66.5

    84.2

    63.1

    400

    -0.064

    131.7

    110.0

    114.9

    76.4

    96.7

    72.5

    450

    -0.057

    148.8

    124.3

    129.8

    86.3

    109.3

    81.9

    500

    -0.051

    165.8

    138.5

    144.7

    96.2

    121.8

    91.3

    550

    -0.046

    182.9

    152.8

    159.5

    106.1

    134.3

    100.7

    600

    -0.042

    199.9

    167.0

    174.4

    116.0

    146.8

    110.1

    650

    -0.039

    217.0

    181.3

    189.3

    125.9

    159.4

    119.5

    700

    -0.036

    234.0

    195.5

    204.2

    135.8

    171.9

    128.9

    800

    -0.031

    268.2

    224.0

    233.9

    155.6

    197.0

    147.7

    900

    -0.028

    302.3

    252.5

    263.7

    175.5

    222.0

    166.5

    1000

    -0.025

    336.4

    281.1

    293.4

    195.2

    247.1

    185.3
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
