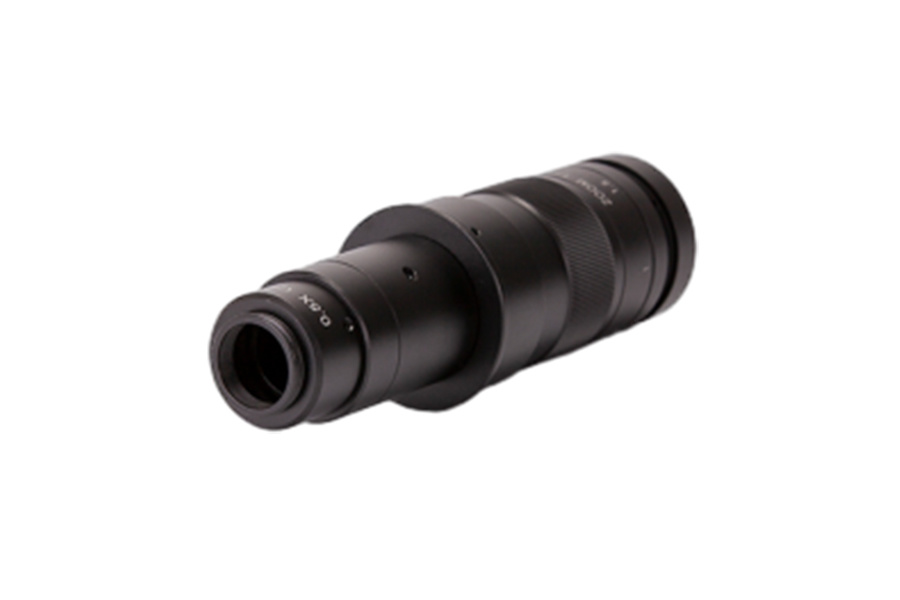

MSS-L-0745  Lens are a monocular continuous zooming Lens, using with the high definition colour CCD camera & TV together. Having long working distance, wide field of view; fine definition image. According to the different requirement in different condition, the user can select the supplementary objective: 0.3×,0.5×,0.75×,1.5×,2× and CCD adapter: 0.35×,0.5×,0.75×,1.5×,2×. There are also several kinds of illumination: double illumination( inclined light in halogen bulb, transmitted light in fluorescent),ring fluorescent illumination, or fiber optics light. It also can use with the image data analyzing system. The stand has: pillar(MSS-10A,10B,10C),  and universal stand(10US1).



▍Specifications
Continuous zoom!The clarity is guaranteed!
Ultra low price,Ultra high cost performance!

▍Technical Specifications

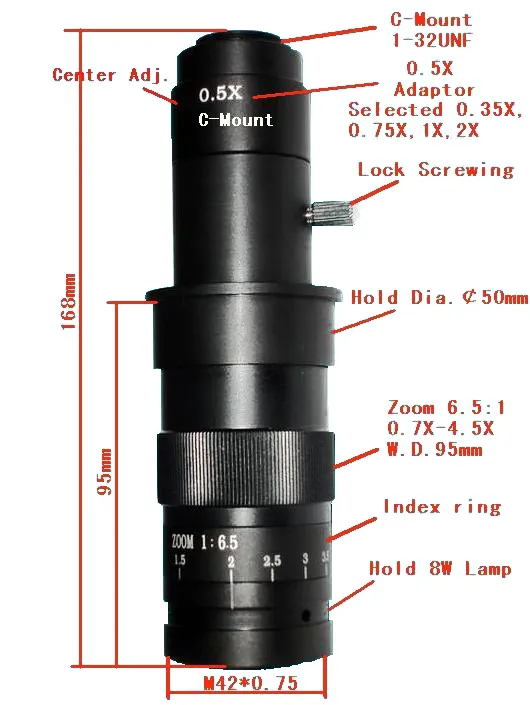

Zoom Range of the Lens Body: 0.7x ~ 4.5x   Zoom Rate:6.5:1
Working distance:W.D.95mm, holder diameterΦ50mm,



▍Standard optional

0.5X CCD Adapter (Lens Body length:L168mm)
Out size: 200*300*150mm
Netweight:0.55Kg/pcs
Grossweight:6.5kg/10pcs

▍Optional
CCD Adapter: 0.35X/L143mm,0.75X/L206mm,1X/L246mm,
1.5X/L271mm,2X/L295mm
Auxiliary Lenses: 0.3X/W.D.320mm,0.5X/W.D.180mm,0.75X/W.D.105mm,1X/W.D.95mm,1.5X/W.D.46mm,    2X/W.D.32mm
optical magnification:0.07X-18X  FOV: 0.33-81.6mm
Total magnification:4.3X-1065X(1/3"CCD,14"monitor)

▍Optical magnification
