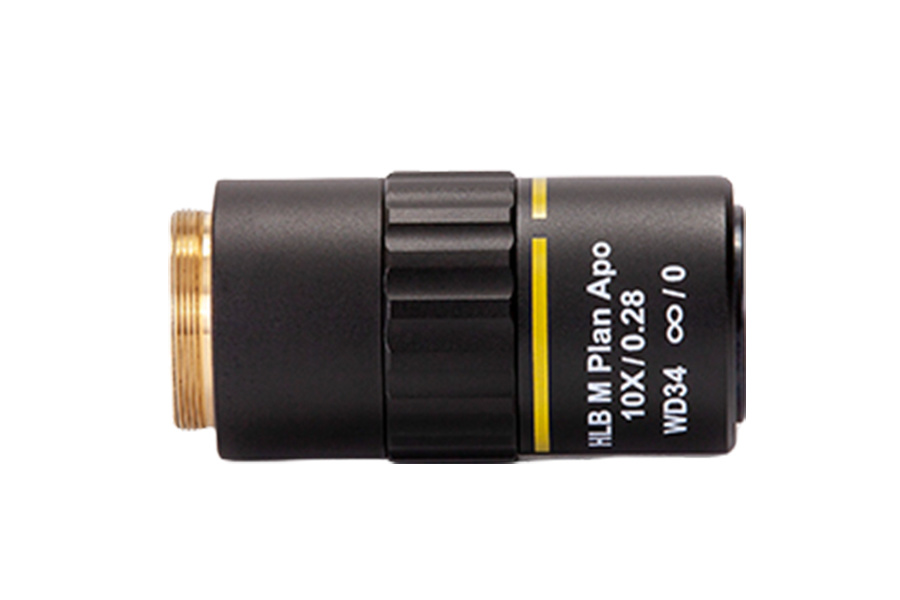

(MSS-L-028) APO Metallurgical Microscope Objective Lens

  • Commodity name: (MSS-L-028) APO Metallurgical Microscope Objective Lens

Category:

  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    The long working distance apochromatic objective lens or APO objective lens has an excellent optical system. This objective lens can provide a flat, monochromatic aberration-free (almost no chromatic aberration) image in the entire field of view. It is suitable for various microscopes and can be used with A series of zoom lenses from MSS are combined into a high-performance zoom lens system, which is ideal for semiconductor product inspection, flow cytometry or other high-efficiency high-magnification applications. Its advanced design provides very high resolution and outstanding contrast. Its resolution can be from 5 microns to 0.34 microns.


    ▍APO Lens Features
    1: Apochromatic optical design;
     2: Optional long working distance;
    3: Ultra-micro resolution;
    4: Parfocal distance 95mm;
    5: Infinity optical system, tube lens focal length 200mm;
    6: Objective lens thread M26X0.705.



    Parameter

    Model

    MSS-L-028



    Magnification

    10X



    Numerical aperture

    0.28



    working distance

    34mm



    focal length

    20



    depth of field

    3.5um



    resolution

    1um



    Field of View-Eyepiece (WF10/24)

    02.4



    Field of View-Camera 1/2"CCD

    0.48×0.64



    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    Your satisfaction and positive feedback is very significant to us.
    Thank you! Have a nice day!
