MSS-L-001

Commodity name： MSS-L-001

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Specifications
Continuous zoom!The clarity is guaranteed!
Ultra low price,Ultra high cost performance!

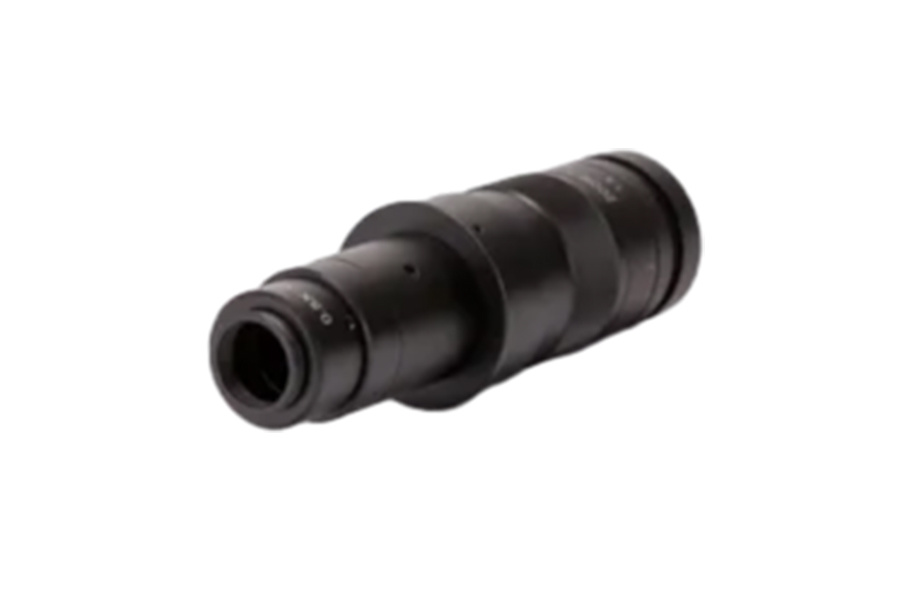

YET-1856 series Lens are a monocular continuous zooming Lens, using with the high definition colour CCD camera & TV together. Having long working distance, wide field of view; fine definition image. According to the different requirement in different condition, the user can select the supplementary objective: 0.3×,0.5×,0.75×,1.5×,2× and CCD adapter: 0.35×,0.5×,0.75×,1.5×,2×. There are also several kinds of illumination: double illumination(XDS-10C inclined light in halogen bulb, transmitted light in fluorescent),ring fluorescent illumination, or fiber optics light. It also can use with the image data analyzing system. The stand has: pillar(XDS-10A,10B,10C), and universal stand(XDS-10US1).

▍Technical Specifications

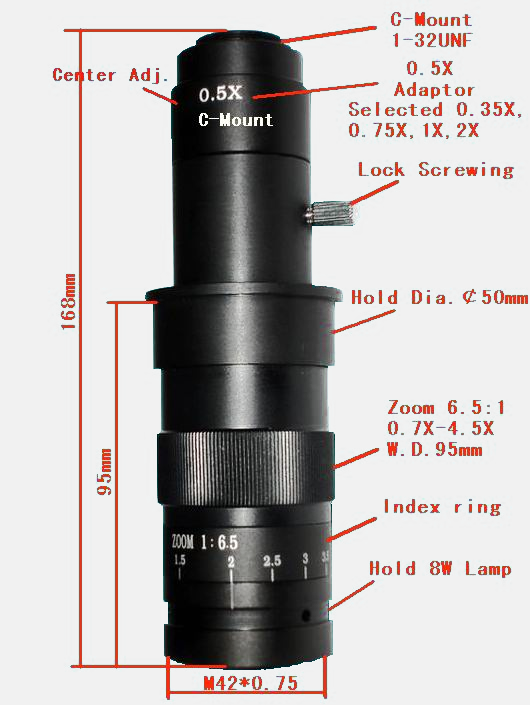

Zoom Range of the Lens Body: 0.7x ~ 4.5x Zoom Rate:6.5:1
Working distance:W.D.95mm, holder diameterΦ50mm,
Standard optional:0.5X CCD Adapter (Lens Body length:L168mm)
Out size: 200*300*150mm
Netweight:0.55Kg/pcs
Grossweight:6.5kg/10pcs

▍Optional
CCD Adapter: 0.35X/L143mm,0.75X/L206mm,1X/L246mm,1.5X/L271mm,2X/L295mm
Auxiliary Lenses: 0.3X/W.D.320mm, 0.5X/W.D.180mm, 0.75X/W.D.105mm,
1X/W.D.95mm, 1.5X/W.D.46mm, 2X/W.D.32mm
optical magnification:0.07X-18X FOV: 0.33-81.6mm
Total magnification:4.3X-1065X(1/3"CCD,14"monitor)

▍Table 1: Optical magnification

Supplementary lens	CCD adapter						Working Distance(mm)
Supplementary lens	0.35×	0.5×	0.75×	1×	1.5×	2×	Working Distance(mm)
0.3×	0.07~0.47×	0.11~0.68×	0.16~1.01×	0.21~1.35×	0.32~2.03×	0.42~2.70×	320
0.5×	0.12~0.79×	0.18~1.13×	0.26~1.69×	0.35~2.25×	0.53~3.38×	0.7~4.5×	180
0.75×	0.18~1.18×	0.26~1.69×	0.39~2.53×	0.53~3.38×	0.79~5.06×	1.05~6.75×	105
none	0.25~1.58×	0.35~2.25×	0.53~3.38×	0.70~4.50×	1.05~6.75×	1.40~9.00×	95
1.5×	0.37~2.36×	0.53~3.38×	0.79~5.06×	1.05~6.75×	1.58~10.13×	2.10~13.5×	46
2×	0.49~3.15×	0.70~4.50×	1.05~6.75×	1.40~9.00×	2.10~13.53×	2.80~18.00×	32

▍Table 2 : Digital magnification

CCD Camera	Monitor
CCD Camera	14″	15″	17″	21″	25″	29″
1/3″	59.2×	63.5×	72.0×	88.5×	105.8×	122.8×
1/2″	44.5×	47.6×	54.0×	66.7×	79.4×	92.1×
2/3″	32.3×	34.6×	39.3×	48.5×	57.7×	67.0×

▍Table 3 : CCD specification

CCD Camera	1/3″	1/2″	2/3″
The diagonal size in CCD camera recoding face	6mm	8mm	11mm

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
