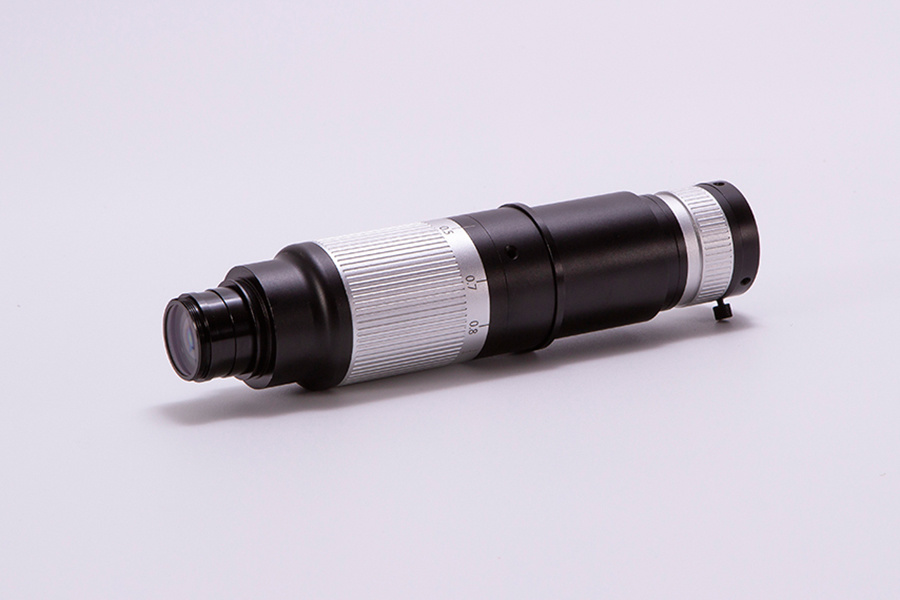

4K Apochromatic Zoom Lens (MSS-L-0330)

0.3-3.0X Ultra high Resolution 4K Apochromatic Zoom Lens，Apochromatic optical system. Ultra 4K image.1:10 zoom ratio.0.3-3.0X standard zoom body. User can choose different magnification C mount and objective lens
  • Commodity name： 4K Apochromatic Zoom Lens (MSS-L-0330)

Category:

Lens

Email:

shmss@mss-tech.cn

Get Quote
Also Like
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Product features
    1.Apochromatic optical system.Ultra 4K image.Greatly improve the analysis and automated intelligent computing judgment.
    2.MSS03300.3-3.0Xzoombody, support max sensor size of camera is 2/3 inch MSS0550 05-5.0Xzoombody Supports 1inchsensor camera.lmprove FOV more 1.5Xthan the traditional zoom lens at the same magnification.
    3.Modular design. t can be equipped with functional components such as coaxia lighting, APO objective and objective nosepiece etc.
    4.Using the principle of apochromatic system, the image is perfectly clear without refocusing in different wavelength lighting situations.Widely used in food, silicon chips,chips, electronic components,biology and other fields of detection and research.
    5. 1:10 zoom ratio.0.3-3.0Xstandard zoom body.User can choose different magnification C mount and objective lens.The expansible multipliers are shown below .


    ▍Specifications

    Model

    MSS0330

    Magnification

    0.3X

    0.5X

    1.0X

    2.0X

    3.0X

    Focus distance(mm)

    27

    45

    90

    180

    270

    Working distance(mm)

    100

    100

    100

    100

    100

    Depth of field（mm）

    5.80

    2.16

    0.63

    0.22

    0.12

    NA(mm)

    0.023

    0.037

    0.063

    0.090

    0.107

    Resolution(mm)

    0.015

    0.009

    0.005

    0.004

    0.003

    F/#

    6.5

    6.8

    7.9

    11.1

    14.0

    Dist%

    3.90%

    1.90%

    0.55%

    -0.04%

    -0.23%

    CCD

    2/3”

    2/3”

    2/3”

    2/3”

    2/3”

    Mount

    C

    C

    C

    C

    C

    F/#

    21.7

    13.5

    7.9

    5.6

    4.7



    Model

    Zoom body

    C mount

    Objective

    magnification

    WD

    MSS0330

    0.3-3.0X

    1X

    1X

    0.3-3.0X

    100mm

    MSS0550

    0.3-3.0X

    1.67X

    1X

    0.5-5.0X

    100mm

    MSS0990

    0.3-3.0X

    3X

    1X

    0.9-9.0X

    100mm

    MSS10100

    0.3-3.0X

    3.33X

    1X

    1.0-10X

    100mm

    Customized magnification

    MSS0440

    0.3-3.0X

    1.33X

    1X

    0.4-4.0X

    100mm

    MSS0660

    0.3-3.0X

    2X

    1X

    0.6-6.0X

    100mm

    MSS0770

    0.3-3.0X

    2.33X

    1X

    0.7-7.0X

    100mm

    MSS0880

    0.3-3.0X

    2.67X

    1X

    0.8-8.0X

    100mm



    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
