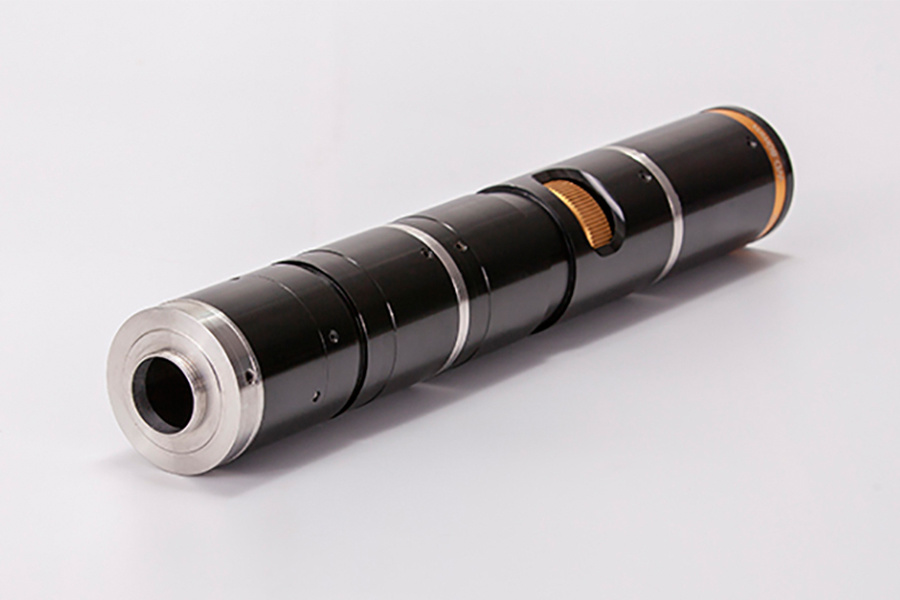

4K ZOOM LENS (MSS-L-4KL)

4K Detented 0.68X-5.0X . 1" sensor;
C-mount interface,
It can be used with 1 1inch target industrial camera!
Applied to high-precision measurement,positioning and visual inspection!
  • Commodity name： 4K ZOOM LENS (MSS-L-4KL)

Category:

Lens

Email:

shmss@mss-tech.cn

Get Quote
Also Like
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    A new generation of 4k high-resolution continuous zoom lens with large field of view. Compared with the traditional zoom system, the field of vision is improved by more than 1.45X.


    This 4K Detented Zoom Lens MSS-8612E, with precise optical path design,  with a large zoom ratio 0.68X-5.0X, Max. sensor size 1", working distance 80mm.


    ▍Products Advantage
    1. Supporting 1" sensor camera, which expands the FOV by more than 1.45X compared with the traditional lens in the same magnification.
    2. Designed with higher resolution requirements, the horizontal resolution with a 1-inch camera can reach 4K level.
    3. The magnification is 0.68X~5X, which is suitable for most testing applications.
    4. Modular design, multi-rate TV tubes and lens attachment are optional. Module components with other functions are additionally provided for selection.

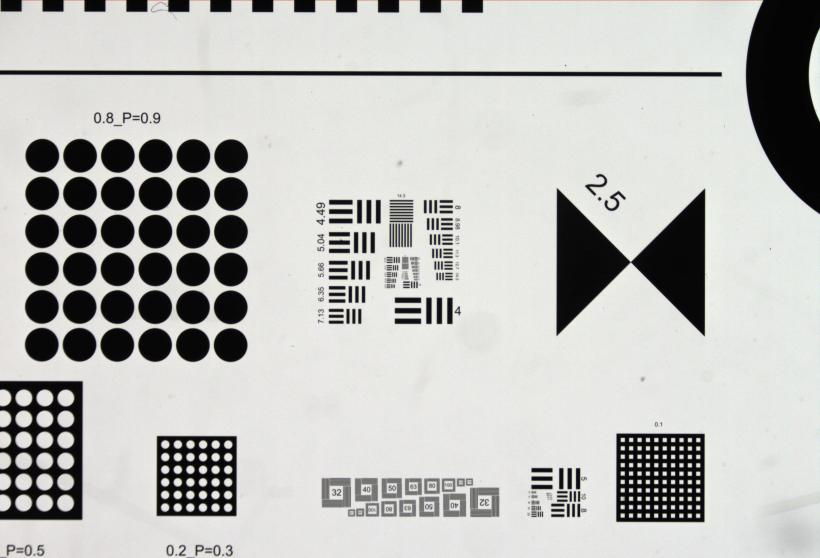

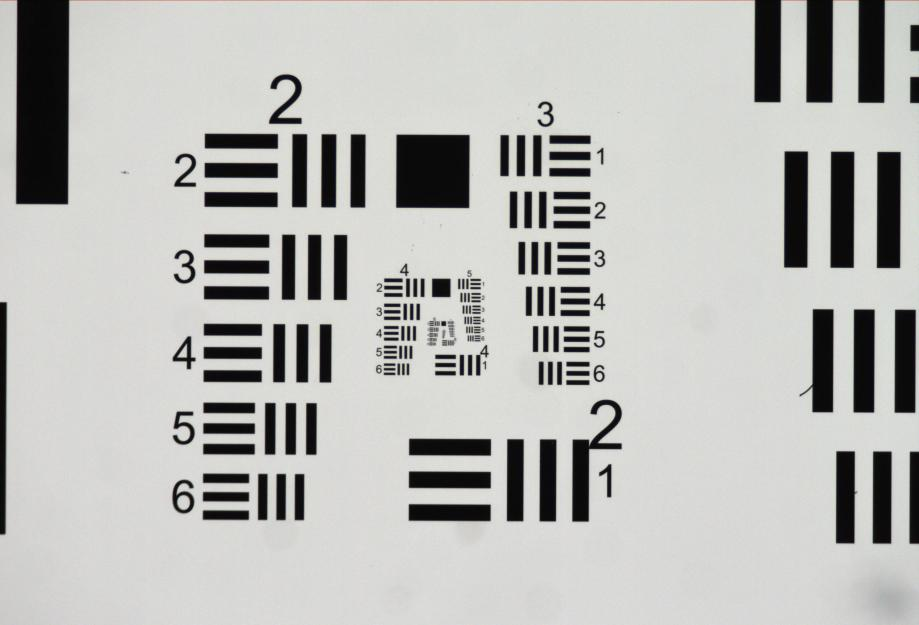

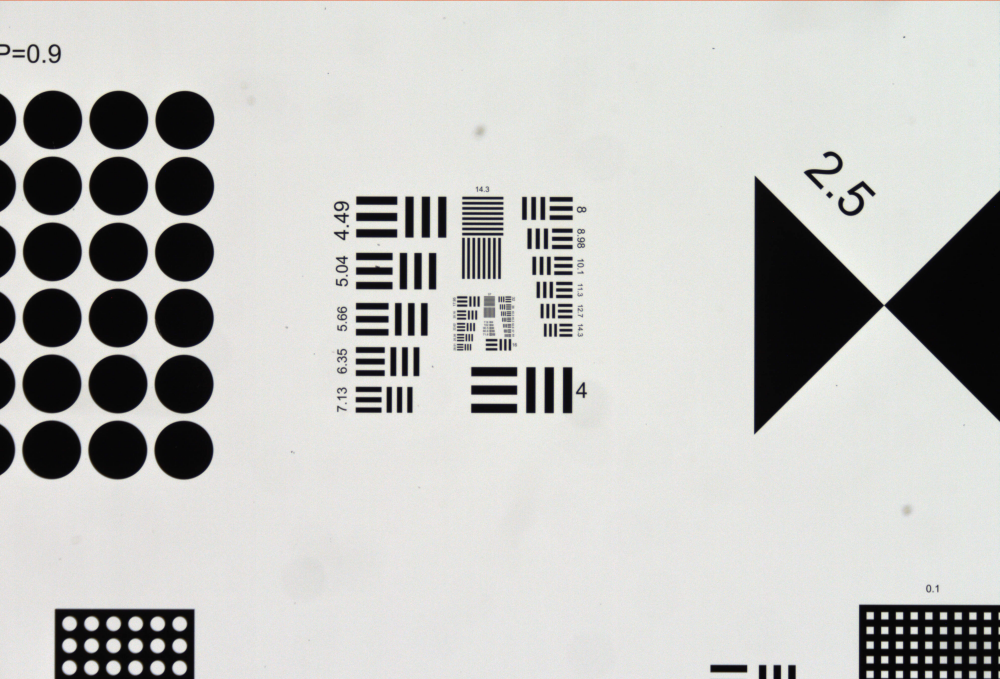

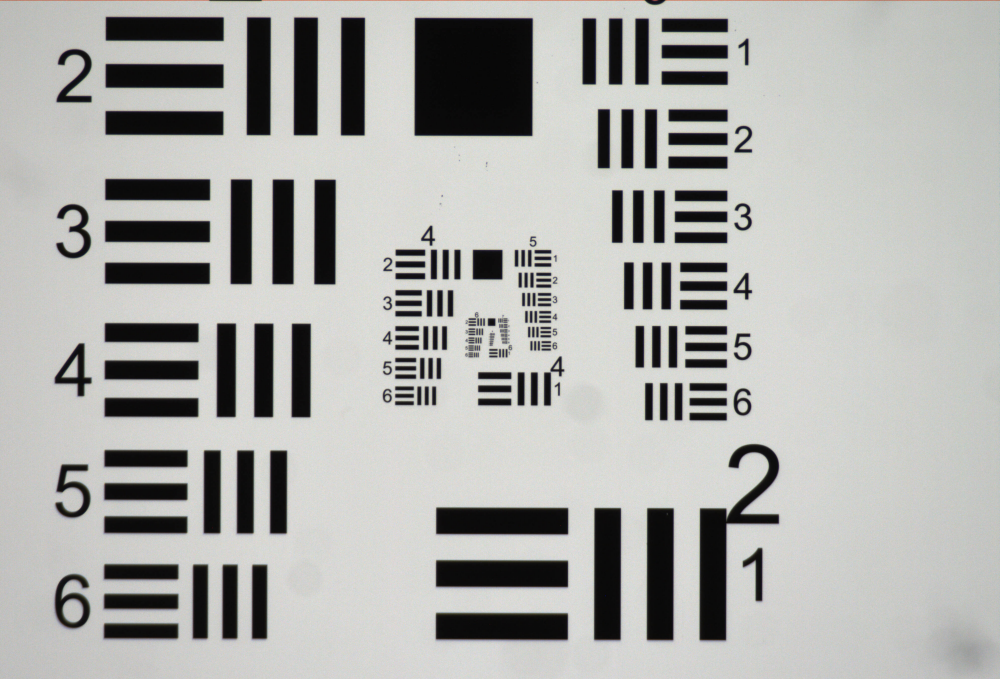

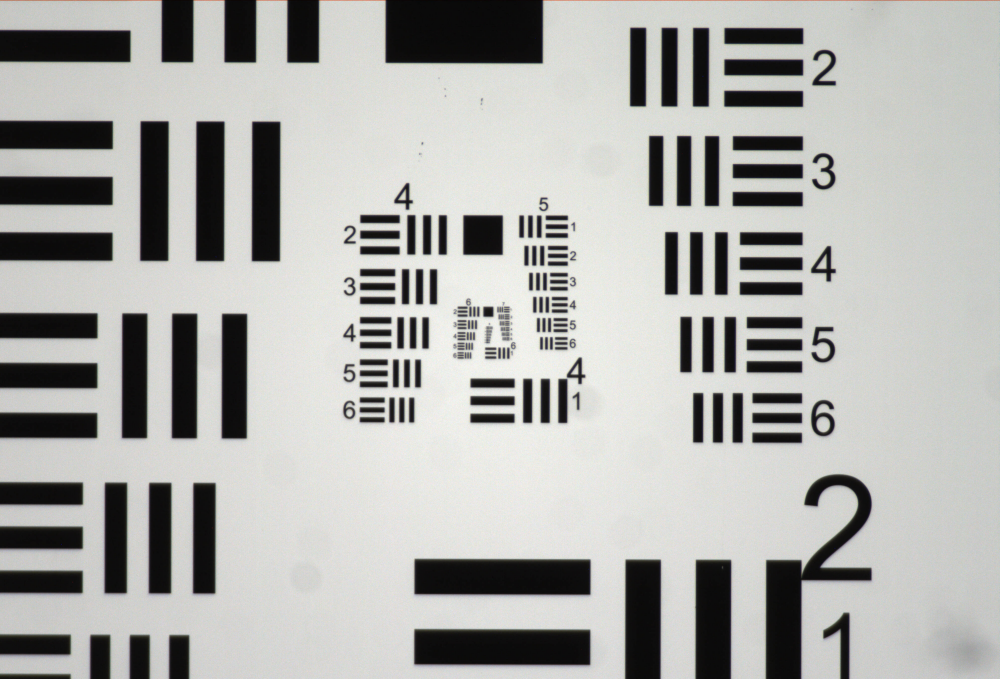

    ▍Actual Image

    0.68X

    1X

    		 2X

    3X

    4X

    5X



    ▍Specifications

    model

    MSS-8612E

    Category

    Manual zoom coaxial optical lens

    Optical magnification

    0.68X-5.0X

    Working distance

    80mm

    Optical power

    0.68X

    1.0X

    2.0X

    3.0X

    4.0X

    5.0X

    Depth of field (mm)

    1.78

    0.89

    0.25

    0.12

    0.08

    0.07

    N.A.

    0.033

    0.045

    0.08

    0.11

    0.12

    0.12

    F.No

    10.3

    11

    12.4

    13.5

    16.5

    20.6

    Resolution( μ m)

    10.17

    7.46

    4.19

    3.05

    2.8

    2.8

    TV distortion

    <0.02%

    <0.02%

    <0.02%

    <0.02%

    <0.02%

    <0.02%

    Field size(mm)

    1″

    23.53×18.82×14.12

    16.0×12.8×9.6

    8.0×6.4×4.8

    5.33×4.27×3.2

    4.0×3.2×2.4

    3.2×2.56×1.92

    2/3″

    16.18×12.94×9.71

    11.0×8.8×6.6

    5.5×4.4×3.3

    3.67×2.93×2.2

    2.75×2.2×1.65

    2.2×1.76×1.32

    1/2″

    11.76×9.41×7.06

    8.0×6.4×4.8

    4.0×3.2×2.4

    2.67×2.13×1.6

    2.0×1.6×1.2

    1.6×1.28×0.96

    1/3″

    8.82×7.06×5.29

    6.0×4.8×3.6

    3.0×2.4×1.8

    2.0×1.6×1.2

    1.5×1.2×0.9

    1.2×0.96×0.72

    Maximum Compatible Sensor

    1″

    Total length (mm)

    328

    Multiplying mode

    Manual

    Focus adjustment

    C-Mount

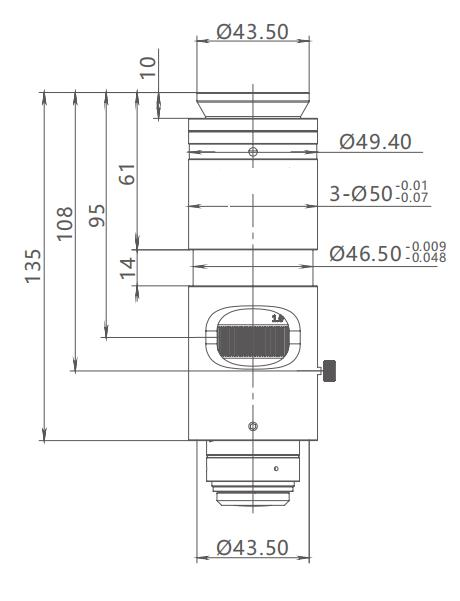

    ▍Product Size Display

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
