(MSS-P-YM-RL) Series Mechanical Booster Pump Unit

Commodity name： (MSS-P-YM-RL) Series Mechanical Booster Pump Unit

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Composition
YM-RL series mechanical booster pump unit contains a dry pump and a mechanical booster pump in a compact bench with all the connecting pipes and a control panel, which is used for vacuum ventilation of production and research equipment.

▍Applications
Evaporation, Sputtering, iron plating, optical deposition,Vacuum drying, freeze drying, The Ingot growth furnaces of the solar and LED industries, vacuum heat furnace, Sintering furnace and blazing furnace etc. Plasma etching, gas recycling system.

▍Characteristic
· Oil free, dry, clean.
· Homogenization at low temperature.
· Large pumping speed to reduce exhausting time
· Excellent anti-corrosion tolerance
· Low noise, low vibration.

▍Specifications

Model Item		YM-RL-301A	YM-RL-601A	YM-RL-1201A
		YM-RL-302A	YM-RL-602A	YM-RL-1202A
Maximum pumping speed m³/h (L/min)	50Hz	359(5980)	653(10900)	1012(16900)
	60Hz	365(6080)	701(11700)	1051(17500)
Ultimate pressure^*1(Pa)		0.67
Pump combination	Booster pump	NB300B	NB600B	NB1200B
	Dry pump	NRL60A/NRL90A	NRL90A/NRL180A	(NRL90A)^*2/NRL180A
Motor(kW)	Booster pump	0.75	2.2	3.7
	Dry pump	2.2/3.7	3.7/7.5	3.717.5
Oil capacity(L)	Booster pump	0.7	1.5	1.9
		BARRIERTA J100F FOMBLIN YL VAC25/6
	Dry pump	0.8/1.3	1.3/1.4	1.3/1.4
		BARRIERTA J100F FOMBLIN YL VAC25/6
Cooling water^*3	Supply pressure	0.1~0.3MPa
	In/out difference pressure	0.1MPa
	Flow rate	5L/min
	cooling water temperature	10～30℃
Nitrogen gas	Supply pressure	0.1~0.5MPa
	Regulated pressure^*4	0.05~0.1(Regulated pressure in pump)MPa 0.05～0.1MPa(Regulated pressure in pump)
	Flow rate^*5	5L/min
Weight		205/265	295/375	325/405
Inlet diameter		VG80	VG80	VG100
Outlet diameter		KF40
Options		①Vacuum gauge/inverter ②silencer ③cooling waterflow switch ④exhaust pressure relay ⑤control panel

* 1.The value is measured by Pirani vacuum gauge
* 2.Not recommended series.
* 3.No condensation of the cooling water.
* 4.The value of the pressure gauge adjusted by a regulator.
* 5.The fixed flow of nitrogen gas (axial seal gas) is 5.0SLM.

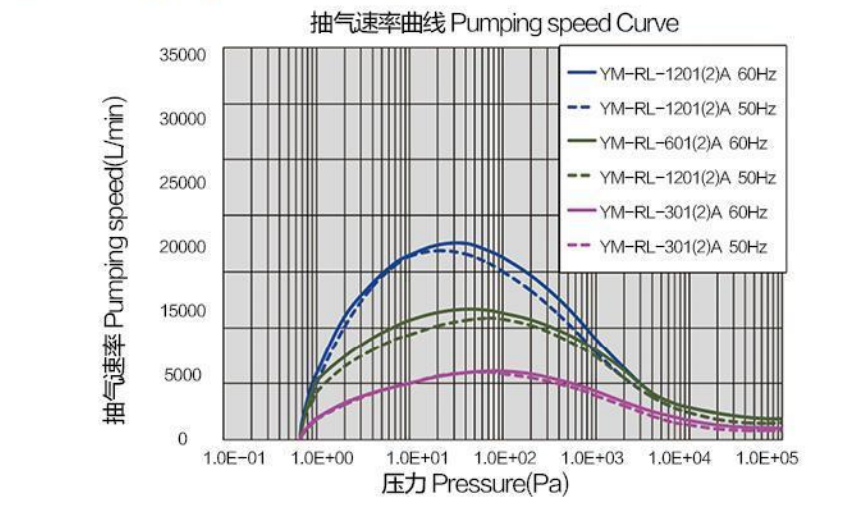

▍Pumping rate curve

Pumping speed Curve

Pressure(Pa)

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
