Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Display unit lSG1-N1
This is channel display and can be used as therma cathode ionization vacuum gauge, cold-cathode ionization gauge and diaphragm vacuum gauge when connected with certain sensor. lt can indicate measuring pressure and set the pressure output point to achieve simple operation. Furthermore, remote control and measurement can also be achieved by display unit. Besides, it has gained CE.

▍Applications
· For vacuum equipment requiring pressure display.
· For vacuum equipment requiring multiple setting points.
· For vacuum equipment requiring RS-485 communication.

▍Features
· Wide-range Measurement Measures from atmospheric pressure to 5 x10^-8Pa.
· Wiring Reduction Combined sensor and controller, thus reducing cables, saving space and energy,
· Input voltage: DC24V.
· Measured value output signal Pressure is 0 to 10V Log output .
· lmprovement in VisibilityLED error verification for better visibility.
· Maintenance Sensor head can be replaced easily.
· Control Output Signal 3 set point output.
· Type RS485 communication.
· Metal shell, good heat dissipation.
· Various vacuum units can be displayed
· Certification Conforms with CE, RoHS.

▍SW1-N1/SW1-N2
This is a wide range Pirani gauge which measures from atmospheric pressure to 5x10^-2Pa. And conforms with CE, RoHS.

▍Applications
· Process control in low vacuum processes such as for photovoltaic field, FPD, semiconductor, optics and electronic parts manufacturing systems.
· Process control in low vacuum range processes for industrial equipment such as vacuum furnaces, etc.
· Process control in low vacuum system, which requires multiple process chambers, such as in-line sputtering and single wafer processing equipment.

▍Applications
· Wide-range Measurement Measures from atmospheric pressure to 5 x 10^-2Pa.
· Wiring Reduction Combined sensor and controller, thus reducing cables, saving space and energy
· Input voltage: DC24V.
· Measured value output signal Pressure is 0 to 10V Log output.
· Improvement in Visibility LED error verification for better visibility.
· Maintenance Sensor head can be replaced easily
· SW1-N1 with 2 set point output
· SW1-N2 with type RS-232C,RS-485 communication.
· Metal shell, good heat dissipation.

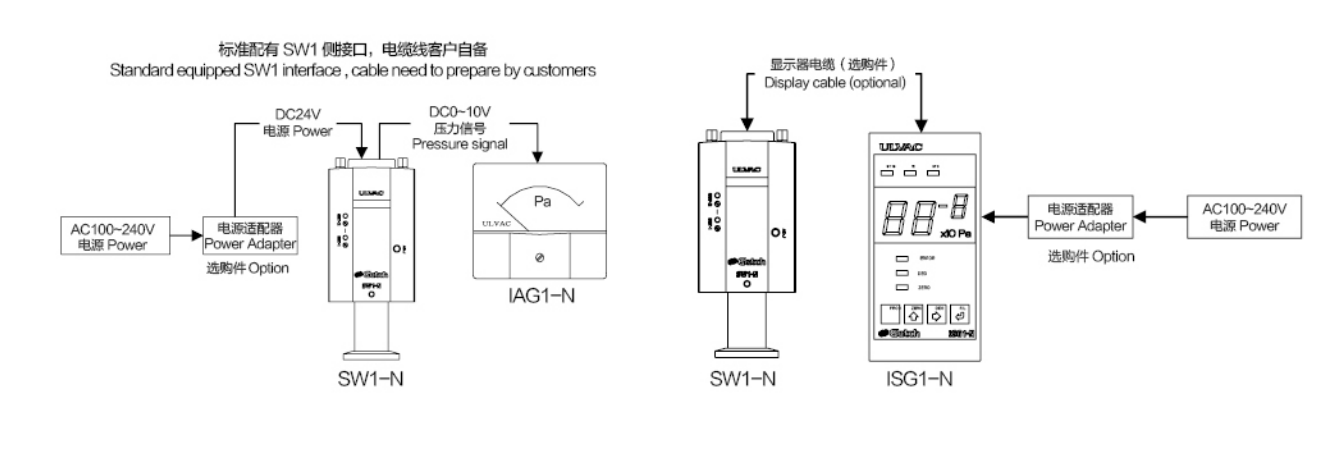

▍Wiring Diagram

▍Specifications

Name	Pirani vacuum gauge
Type	Standard type		Serial communication type
Model name	SW1-N1		SW1-N2
Measurable pressure range	5.0×10^-2~1.0×1^+⁵Pa
Measurement accuracy*1(N₂)	1×10-1Pa^-1×10⁺⁴Pa±10% 1×10⁺⁴Pa^-1×10⁺⁵Pa 5×10^-2Pa~1×10^-1Pa ±20%
Repeatability	1×10^-¹Pa～1×10^*4Pa±2%
Measurement value output	Output voltage 0 to 10 VDC Output indication 1.7V to 8.0V Log output 1 V/div
Serial communication		RS-485/RS-232C
Baud rate		9600/19200/38400bps
Memory function		Backed up with EEPROM
LED display	LED POWER/ERROR:Power error LED
	SET1:Setpoint 1 LED
	SET2:Setpoint 2LED
Outside dimensions	70×46×28(controller unit)

Name	ISG1-N 1-channel digital display unit ISG1
Number of sensor units connected	1 pc.
Display	Digital display of mantissa part 2 digits, exponential part 1 digit □. □ 10□
Unit	Pa (Pa) is commonly used, and the unit can be converted arbitrarily
Analog output	0 V to 10V DC pseudo-log. output, log, linear output
Update time	70ms
Resolution	1mV
Output error	±10mV based on the pressure display conversion value
Line voltage	24 VDC 1 V Ripple and noise below 1%
Control output signal	Open collector output, negative logic [Rating:40 VMAX, 90 mAMAX,.70 mW]
	Signal of error,filament and other on signal and others
	Setpoints 1,2,3
Communication	RS-485
Baud rate	9600/19200/38400bps
Number of nodes	32(including host)
Memory function	Set value by communication is backed up by EEPROM.
Outside dimensions	DIN4896 mm,basicunit 70 mm deep JIS rack size 50100mm is also available as option.

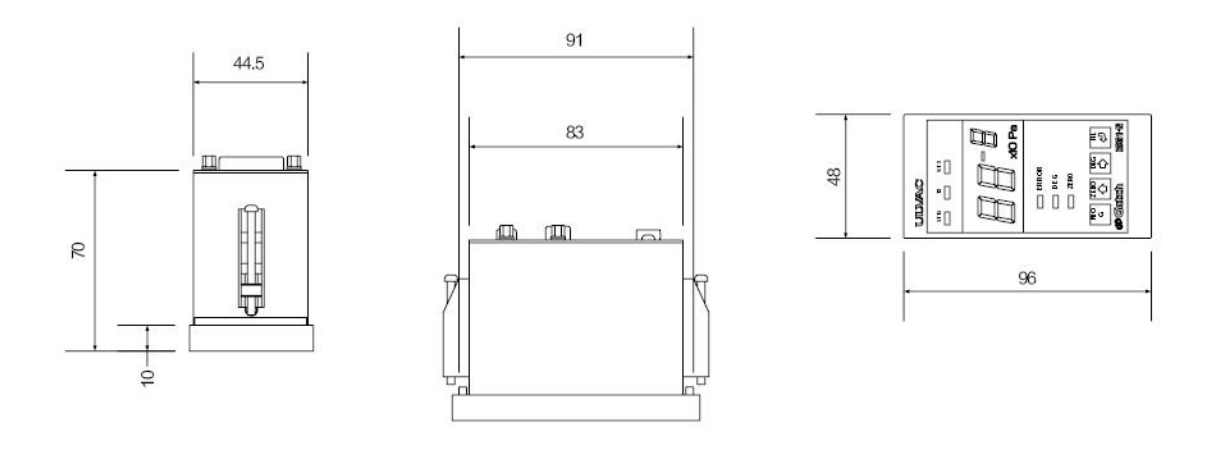

▍lSG1-N

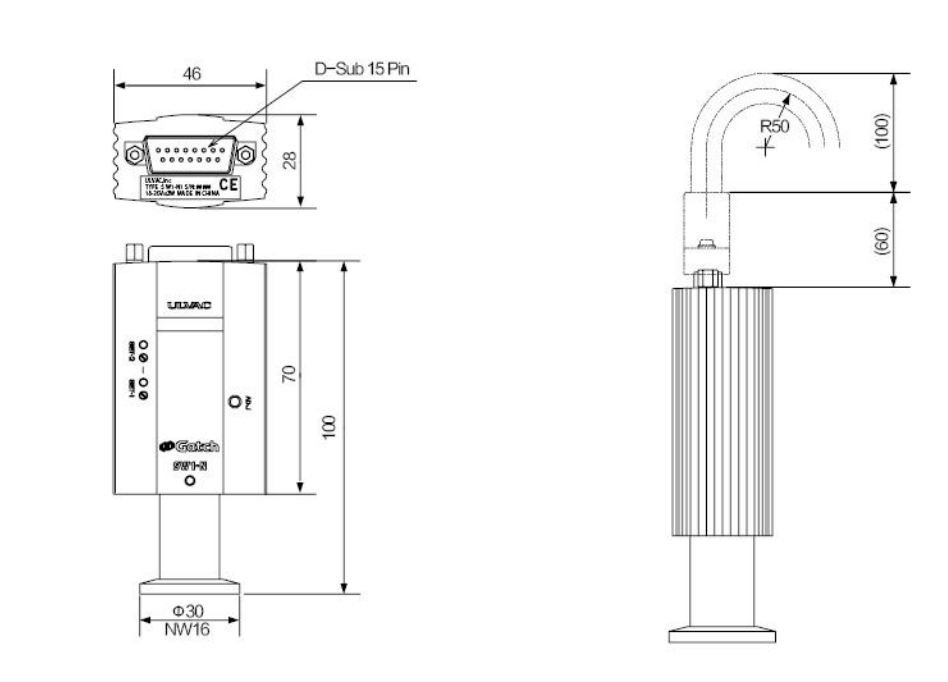

▍SW1-N1/N2

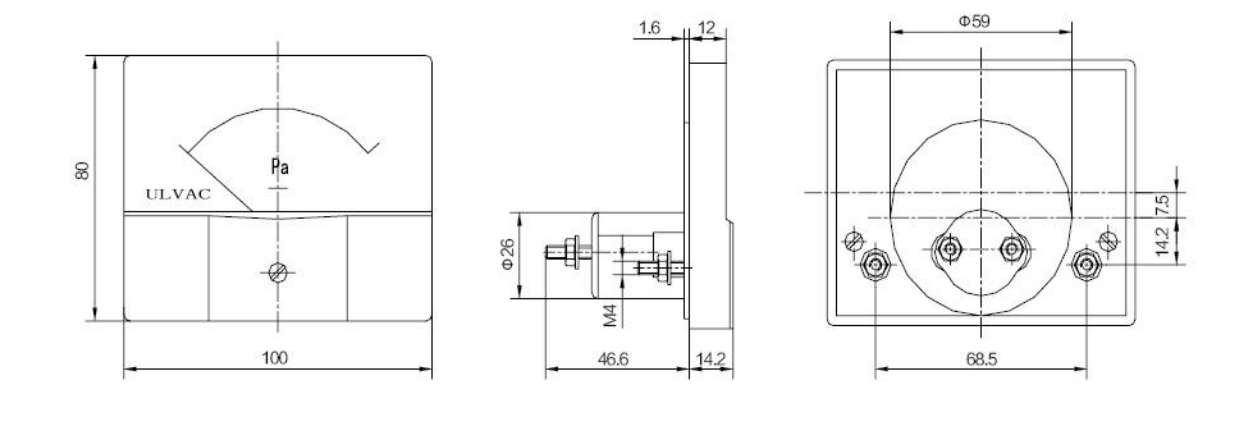

▍lAG1-N

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
