(MSS-R-U741-U511) Kaiyang Expert-level Handheld Thermal Camera

Commodity name： (MSS-R-U741-U511) Kaiyang Expert-level Handheld Thermal Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Intelligent Functions
The Kaiyang U741/U511 is a new generation of industrial thermal cameras with replaceable auto-focus lenses designed for expert users. Inheriting InfiRay's excellence in thermal images, the new products are equipped with a new generation of 12μm detectors featuring the NETD as low as 35mk, enabling them to capture more subtle hotspots and display sharper and cleaner thermal images. Besides, the products also embrace other analysis and intelligent functions such as trend analysis, area measurement, and intelligent image stabilization.

▍Product Strengths
• Clear Thermal Images, Precise Temperature Measurement
• Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512/480×360, supporting superior resolution
• NETD is as low as 35mK, and temperature measurement precision is ±2℃ or ±2% of reading (whichever is the maximum value)
• Multi-lens Options for Fast, Precise Focusing
• Standard 25° lens, with optional wide-angle, long-focus, ultra-long-focus, and macro lenses, flexible for diverse scenarios
• Comprehensive Upgrade of Functions to Improve Work Efficiency
• Android operating system, more convenient to operate
• Support intelligent image stabilization, making temperature measurement images more stable
• Support laser rangefinding and area measurement
• Powerful Intelligent Analysis, Efficient Temperature Measurement
• Support up to 20 points/lines/areas to analyze more temperature details in the screen
• Support customized isotherms to highlight temperature segments or areas that need more attention
• Support intelligent routine inspection, enabling import and editing of general task packages, etc.

KaiyangT Series Lens Configuration Table
Lens type	FOV	IFOV		Focal Length		Minimum Imaging Distance	Aperture (F)
Lens type	FOV	U511	U741	U511	U741	Minimum Imaging Distance	Aperture (F)
Ultra-long-focus Lens	7°×5.6°	0.27mrad	0.2mrad	60.9mm	60.9mm	4m	1.0
Long-focus Lens	14°×11.2°	0.52mrad	0.38mrad	31.5mm	31.5mm	3m	1.0
Standard Lens	25°×20°	0.92mrad	0.68mrad	17.7mm	17.7mm	0.4m	1.0
Wide-angle Lens	45°×36°	1.71mrad	1.26mrad	9.5mm	9.5mm	0.2m	1.0
Macro Lens	0.2×	One pixel corresponds to 60μm	One pixel corresponds to 60μm	13mm	13mm	39mm	1.0
Super Macro Lens	0.4×	One pixel corresponds to 30μm	One pixel corresponds to 30μm	14.8mm	14.8mm	19mm	1.0

▍Specifications

Model		U741	U511
Thermal Imaging Characteristics and Optical System	Detector Resolution	640×512	480×360
	Super Resolution	1280×1024	960×720
	Detector Type	Uncooled infrared detector
	NETD	35mK
	Wavelength Range	7.5~14 µm
	Frame Rate	30Hz
	Measurement Range	-20℃~+150℃, 100℃~650℃, 400℃~1500℃ (optional); automatically switch temperature measurement modes
	Focusing Mode	Manual, electric, laser-assisted, continuous auto focus
Image Display and Mode	Display Size	5-inch OLED touch display, 1280×720 resolution, Gorilla explosion-proof glass
	Visible Light Camera	4224×3136 (13MP digital camera)
	Palettes	19 palettes including iron red, gray, inverse iron red, inverse gray
	Image Mode	Thermal imaging, PIP, thermal fusion, visible light
	Temperature Width Stretch	Automatic, manual, linear
Image Storage	Storage Medium	SD card, standard 64GB, hot plug, with a maximum extension capacity of 2TB
	Text Note	Yes. Free text input, preset text, OCR recognition, QR code scanning, and voice-to-text input supported
	Voice Note	Supported, with a maximum time length of 300s
Video Recording and Transmission	Radiation Infrared Video Recording	Compressed full radiation video recording (.irv) supported
	Non-radiation Infrared or Visible Light Video	Standard MP4 video recording
	Radiation Infrared Video Stream	TYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streams
	Non-radiation Infrared Video Stream	RTSP H.264
	Communication Interface	USB3.0, Wi-Fi, Bluetooth
	Video Resolution	1280×720 pixels
Laser Rangefinding	Measurement Accuracy	±2℃ or ±2% of the reading, whichever is greater
	Temperature Measurement Correction	Correction of screen emissivity, reflected background temperature, ambient temperature, atmospheric transmittance, and distance parameters
	Positioning	GPS, BDS, GLONASS, or Beidou supported, with geographical location data overlaid on images
	Analysis Report	PDF format. Template editing and import on the device
	Measurement and Analysis	905nm,Class I, <10mW, laser pointer and laser rangefinding supported, HF rangefinder module, at the frequency of 1000Hz (20-20000Hz adjustable), with a range from 0.05m to 50m, an accuracy of ±1mm, and 50PPM anti-background light capability＞100K LUX
	Area Measurement	Supported
	Analysis Functions on the Device	Support up to 20/15 movable points, lines, frames, circles and polygons, and up to 5 preset modes
	Temperature Difference Analysis	Supported
	Trend Analysis	Temperature trend recording, display at 15-minute intervals, image capture and storage in the specified file, and image viewing in the device's library in secondary analysis mode
	Image Freezing	Single frame + full radiometric video streams	Single frame
System Functions	Intelligent Image Stabilization	Supported (When image stabilization is enabled, the picture will be cropped. For details, please refer to the User Manual)
	Intelligent Routine Inspection	Supported. General task package import and editing, standard and automatic naming of images
	Routine Inspection Record Self-inspection	Supported
	Dual-Spectrum Video Recording	Simultaneous infrared video and visible light video recording, in MP4 format
	Zooming In	1× ~ 10×
	Connecting Methods	Wi-Fi, Bluetooth, USB Type-C
	Voice Control	Voice assistant, quick command recognition
	Flashlight	Available
	Language	English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French, Spain, Italy, Turkey, and Traditional Chinese
Others	Microphone/Speaker	Available
	Battery	10,000mAh lithium-ion battery, field-replaceable, support fast charging
	Charging Mode	Direct charging, desktop charging
	Operating Time	Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)
	External Interface	TYPE-C USB3.0, SD card, SIM card, Mini HDMI, tripod
	IP Grade	IP54, 2G(IEC60068-2-6), 25G(IEC60068-2-29)
	Weight and Dimensions(H×W×D)	1.3kg (including battery), 144mm×129mm×307mm (subject to actual situations)
	Testing and Certification	CE/FCC/RoHS, etc.
	Packing List	Packing list: thermal imaging camera×1, standard lens, lithium battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, qualification certificate, wristband (with wristband buckle), safety box, lens cap (with screw)

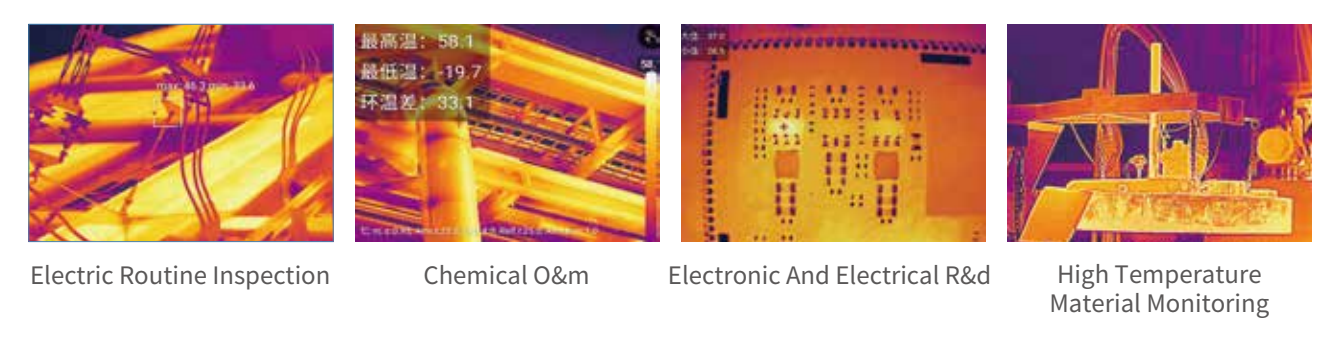

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
