(MSS-R-BU42V / BU72V / BU42VZ) Industrial Online Ultra-high Temperature Thermal Camera

Commodity name： (MSS-R-BU42V / BU72V / BU42VZ) Industrial Online Ultra-high Temperature Thermal Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Sharp Eyes for the Accurate Presentation of Thermo
ATU/ATUZ ultra-high temperature thermal camera, able to detect high temperature targets up to 1,500℃. It adopts a simple industrialized housing design, easy to install, and can be widely used in metal smelting, industrial furnace temperature measurement, steel rolling, laser welding, and other fields which require high-temperature measurement or monitoring.

▍Product Strengths
• Two Forms, Multiple Lenses
• Two forms: boiler/finished product
• 4 lens options, with the maximum FOV of 89.3°×73.1°
• Spatial resolution as low as 0.68mrad, able to distinguish tiny targets
• High Definition Resolution, Wide Range of Temperature Measurement
• 384×288/640×512 infrared resolution (optional)
• Wide measurement range of 0-1,500℃
• Simple housing design and standardized electrical interface, easy to use, sturdy and reliable
• Simple industrialized shell design, beautiful and practical
• Strong aluminum shell to protect equipment from damage
• Standard electrical interface and installment pitch for easy installation and use
• Various Interface Protocols and Temperature Measurement Toolboxes
• Support protocols such as ONVIF, Modbus-TCP and Ethernet/IP
• Provide various interfaces and support dual platforms of Windows/Linux
• Equipped with professional analysis software
• Support secondary development and provide professional SDK

ATU Lens Conﬁguration Table
Model	BU42V	BU72V	BU42V1Z	BU42V2Z
Focal length	3.3mm	6mm	9.7mm	25mm
FOV	89.3°×73.1°	73.2°×58.5°	37.9°×28.7°	14.9°×11.2°
IFOV	5.15mrad	2mrad	1.753mrad	0.68mrad

▍Specifications

Model		BU42V	BU72V	BU42VZ
Thermal Imaging Parameters	Detector Type	Uncooled VOx Infrared Focal Plane Detector
	Resolution	384×288	640×512	384×288
	Pixel Pitch	17μm	12μm	17μm
	Image Frequency	50Hz	25Hz	50Hz
	Spectral Band	8μm~14μm
	NETD	<50mK
	Palettes	Black-hot/white-hot, 18 palettes are available
	Digital Zoom	1.0~8.0 continuous zoom (step size: 0.1)
	Mirroring	Horizontal/Vertical/Diagonal
	Focusing	Fixed focus
Temperature Measurement Function	Tempe Range	0℃~400℃; 400℃~1500℃
	Measurement Accuracy	±2 ºC or ±2% (whichever is the greater) (100°C~1500°C)
	Automatic Gain Mode Switching	Supported
	Temperature Measurement Correction	Any ﬁxed point; full-screen max./min. temperature capture; center point; line/area analysis tool; manually choose temperature width; radar temperature measurement tool
	Temperature Analysis	Support modiﬁcation of environmental parameters
	Temperature Width Stretch	Support temperature width stretch
	Thermal Image Capture	Support thermal image capture and secondary analysis
Network Function	Network Protocol	TCP, UDP,SNTP, RTSP, HTTP, ICMP, SMTP, DHCP, UPnP, PPPOE
	Interface Protocol	TCP, UDP,SNTP, HTTP, ICMP, SMTP, DHCP, UPnP, PPPOE, RTSP
	Ethernet	Control and transmit images
System Interface	Communication Interface	1 RJ45, 10M/100M/1000M adaptive
		RS-485 (PTZ control), RS-232 (network data)
	Audio Port	1-channel input, 1-channel output
	Alarm Interface	1-channel analog video
Image Transmission	Video Interface	H.264/H.265
	Storage Interface	.mp4, .mov
Power Supply	Power Supply	DC power supply
	Voltage	9~26V DC
	Power Protection	Support over-voltage, under-voltage, and reverse connection protection
General Speciﬁcations	Operating Environment	-20°C～+60°C; <95% RH
	Typical Power Consumption @25°C	≤3W		≤3.3W
	Thermal Camera (L×W×H)	46.5×48×148(mm)	46.5×48×146(mm)	62×62×144(mm)
	Weight	＜319g	＜342g	＜548g
	Authentication	CE/FCC/RoHS
	Shock	30g, 11ms, all axes
	Vibration	4.3g, random vibration, all axes
	Accessories	ATU special cables		ATU special cables, ATU special connectors

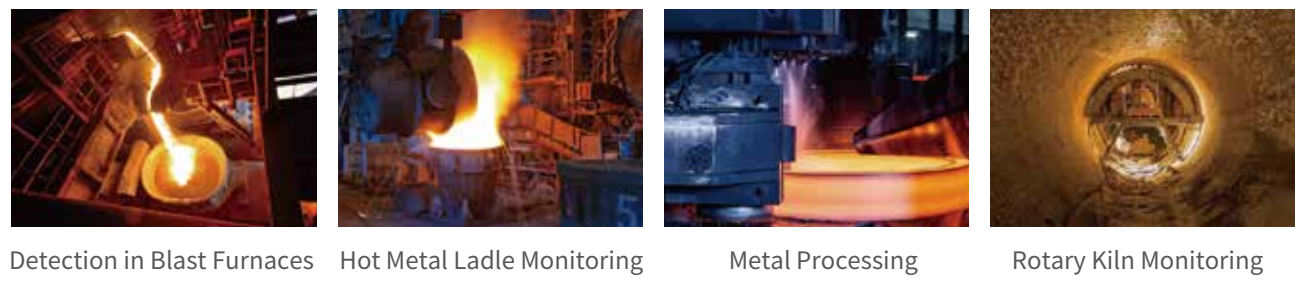

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
