(MSS-R-DH411D) Cooled Handheld Gas Infrared Thermal Imaging Camera

Commodity name： (MSS-R-DH411D) Cooled Handheld Gas Infrared Thermal Imaging Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Cooled Infrared Detector
Tianji DH411D can detect colorless VOCs gas leaks as small as 0.001mL/s, quickly scan a large area, and accurately locate the leak location with real-time dual spectrum. It is suitable for medium/long-distance, non-contact, and rapid gas leak detection applications in leak detection, fugitive emissions, and oil storage and transportation.

▍Product Strengths
• High-Accuracy Cooled Module for Accurate Leakage Detection
• 320×256 high-accuracy cooled detector
• Gas enhancement mode makes trace gas clearly visible
• Hundreds of gases can be detected
• Sturdy Finished Product, Reliable and Safe to Use
• IP54 grade, magnesium-aluminum alloy shell, robust and reliable
• Quick Locating of Gas Leakage
• Support large-scope scanning, convenient and efficient
• Equipped with 4 types of lenses, supporting 8× digital zoom, taking into account both far and near leakage points
• Rotatable OLED viewfinder and rotatable display for convenient observation
• Efficient and Convenient Data Analysis
• With GPS to locate the site, making it easier to develop the test report
• Multiple palette modes to meet various observation tasks

▍Specifications

Thermal Imaging Parameters	Detector Type	Cooled Infrared Detector
	Detector Resolution	320×256
	Pixel Pitch	30μm
	Response Wavelength	3.2～3.5μm
	Frame Rate	60Hz
	Start Time	＜7min
	Gas Detection Sensitivity	0.001mL/s
	Infrared Image Processing	Non-uniformity correction, image ﬁlter noise reduction, digital detail enhancement, and high sensitivity mode
	Focusing Mode	Electric/automatic
	Measurement Range	-20℃~+350℃
	Measurement Accuracy	±1℃(0 to 100℃), ±2% reading range (-20~0℃, 100~350℃)
Camera Functions	Temperature Measuring Mode	Point and area temperature measurements; automatic tracking of the max/min temperature points; setting of the max and min temperatures, isotherm, and temperature diﬀerences; temperature alarms
	Emissivity Correction	0.01～1.0 adjustable
	Palettes	8
	Digital Zoom	1~8 times
	Visible Light	5MP
	Laser Pointer	Secondary, 1mW/635nm red
	Display	3.5-inch LCD, 640×480, rotatable
	Viewﬁnder	0.39-inch LED, 800×600, rotatable
	GPS	Yes
	Video Output	CVBS
	Infrared Image Format	JPEG (without temperature data), IRG (with temperature data)
	Infrared Video Format	AVI (without temperature data), IRV (with temperature data)
Others	Memory Card	32GB SD card
	Battery	Rechargeable lithium-ion battery
	Working Time	≥2h (single), standard dual batteries
	Charging	Smart charger, external power supply
	Operating Temperature	-10℃~+50℃
	Storage Temperature	-40℃~+70℃
	Operating Humidity	10%~95%, non-condensing
	IP Grade	IP54
	Explosion Proof	Ex ic ⅡC T6 Gc
	Mounting Mode	Tripod supported
	Gases Detectable	Methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene oxide, propylene oxide, ethylene, propylene, 1-butene, methanol, ethanol, butanol, ethylene glycol, isopropanol, ether, propionaldehyde, benzene, toluene, ethylbenzene, aniline, etc.

DH411D Lens Conﬁguration Table
Lens type	FOV	IFOV	Focal Length	Aperture (F)
Standard Lens	24°×18°	1.304mrad	23mm	1.2
Long-focus Lens	14.5°×10.8°	0.789mrad	38mm	1.2
	11°×8.8°	0.667mrad	45mm	1.2
	6°×4.5°	0.333mrad	90mm	1.2

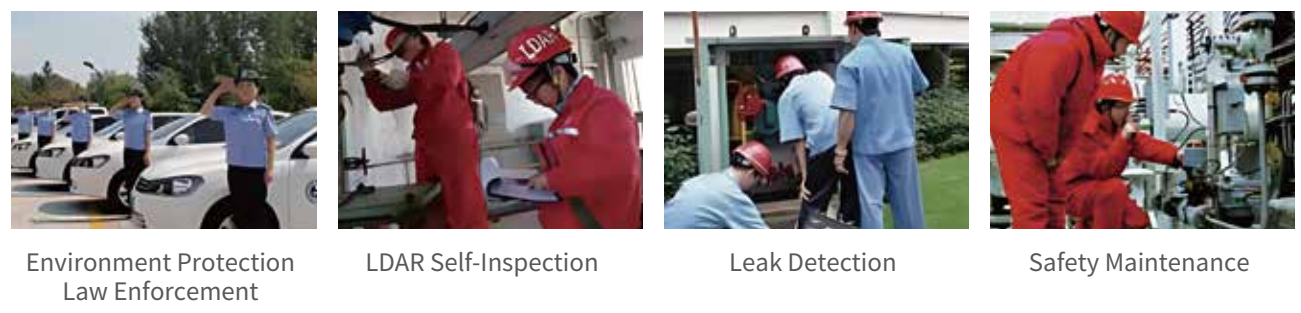

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
