(MSS-R-H711D / H711G) Uncooled Handheld Gas Infrared Thermal Camera

Commodity name： (MSS-R-H711D / H711G) Uncooled Handheld Gas Infrared Thermal Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Cooled Infrared Detector
Tianji G600 series has two products, H711D and H711G, which can locate leaks for different types of gases, including natural gas (CH4), refrigerant (Freon), ammonia (NH3), sulfur hexafluoride (SF6) and dozens of other kinds. Infrared thermal imaging technology helps enterprises to produce safely in a non-contact and visualized way.

▍Product Strengths
• Customized Filter Detector for Clearer Images
• Equipped with 640×512 customized band-pass filter detector to eliminate stray light interference
• Capable of distinguishing a temperature difference of 0.023℃, capturing more trace gas.
• Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details
• Versatile, Which is the Best Helper for Routine Inspections
• Simultaneous observation of thermal imaging and visible light to easily locate gas leaks
• High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
• 3.5-inch touch screen+complete analysis functions, easy to complete routine inspection tasks

▍Specifications

Model		H711D	H711G
Thermal Imaging Parameters	Detector Type	Uncooled infrared detector
	Detector Resolution	640×512
	Infrared Spectral Band	7.0-8.5μm	10.55μmcentral wavelength
	Gases Detectable	Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, 2-ethylhexylacrylate, Freon (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A),etc	Sulfur hexaﬂuoride, ammonia, ethylene, ethylene ether, vinyl chloride, trichloroethylene, methyl vinyl ketone, propylene, acrolein, acrylonitrile, ethyl cyanoacrylate, allyl ﬂuoride, allyl chloride, allyl bromide, furan, etc.
	Pixel Pitch	12μm
	NETD (Thermal Sensitivity)	23mK
	IFOV (Spatial Resolution)	0.63mrad
	Detector Frame Rate	30Hz
	Focal Length	19mm
	FOV	23°×18°
	Focusing Mode	Manual focusing
	Measurement Range	-20℃~+120℃
	Measurement Accuracy	±2℃ or ±2% of the reading, whichever is greater
	Measurement Resolution	0.1°C
Camera Functions	Temperature Measuring Mode	Center point/hot and cold spot tracking and temperature display
	Customized Measurement on Points, Lines, and Areas	Movable points/lines/areas; up to 10 points,10 areas,10 lines
	Measurement Unit	Celsius, Fahrenheit, Kelvin
	Emissivity Settings	0.01~1.00,step size 0.01
	Ambient Temperature Settings	‒10℃~+50℃,step size 1℃
	Distance Settings	1~20m,step size 1m
	Image Mode	Infrared,visible light, dual-spectrum fusion, PIP
	Palettes	10
	Temperature Alarm	Available
	Alarm Type	Image alarm
	Temperature Width Stretch	Manual/Auto temperature range
	Laser Pointer	Available
	Visible Light Camera	5MP
	Video/Photo Storage	XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data
	Voice Annotation	Available
	Language	English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French, Spain, Italy, Turkey, and Traditional Chinese
	Display Size	3.5-inch touch screen (640×480)
	Image Naming	Auto/manual naming, naming by scanning QR code
	Memory Card	Standard 32GB Micro SD card
	Battery Type	Rechargeable and detachable lithium-ion battery
	Power Interface	USB Type-C
	Connecting Methods	USB, SD card, Wi-Fi (AP mode or networking mode)
	Charging Time	About 3h
	Operating Time	About 3h
	Power Management	Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never
Others	Analysis Software	IR Discovery,PC software & mobile APP
	Tripod Support	Available
	Operating Temperature	-10°C~+50°C
	Storage Temperature	-20°C~+60°C
	Relative Humidity	10%~95%, non-condensing
	Drop Protection	2m
	IP Grade	IP54(IEC 60529)
	Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
	Dimensions	256.4mm×105.1mm×105.3mm
	Weight	About 670g
	Authentication	CE/FCC/RoHS, etc.
	Accessories	5V 3A power adaptor, USB cable, SD card, battery ×2, QSG, battery charger, calibration certiﬁcate, package list

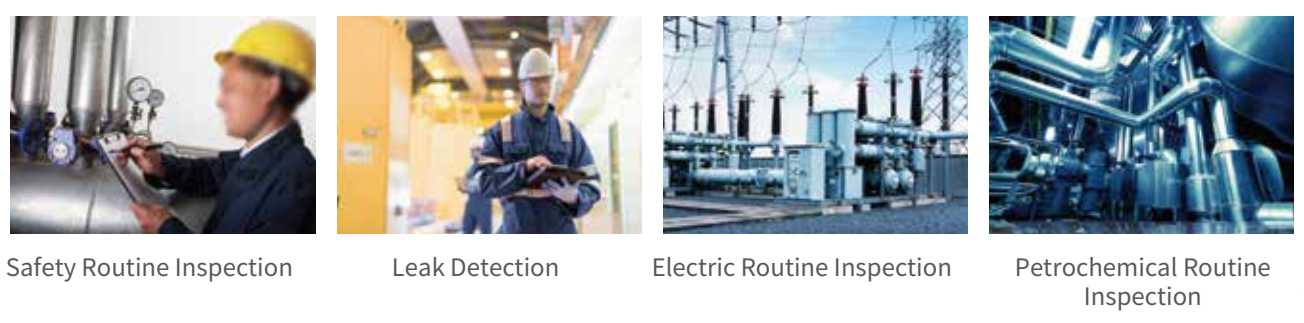

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
