(MSS-R-JY3) Wireless Thermal Camera for Smartphone

Commodity name： (MSS-R-JY3) Wireless Thermal Camera for Smartphone

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Wireless, Easy to Use
JY series wireless thermal camera for smartphone is equipped with a 256×192 infrared resolution detector with 40mK high sensitivity. It can be used in combination or separately with a smartphone according to the scenario. It supports wireless image transmission and operation up to 8 meters* away. The accompanying TAS App supports functions such as transmission, screen projection, and real-time analysis, and can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.

▍Product Strengths
• Wireless Measurement, Unlocking New Scenarios
• Up to 8m* wireless measurement
• Low-latency image transmission below 100ms
• 2 hours of battery life, productivity is always alive
• Clear Thermal Images, Precise Temperature Measurement
• Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size
• 40mK professional-grade high thermal sensitivity, captures smaller temperature differences; wider temperature measurement range of up to 550℃
• 4 image modes + 7 palettes, suitable for temperature observation of different targets and different scenes
• Hard-core Configuration, Easy to Use and Convenient
• IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand, weighing as little as 125g
• Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile APP
• Professional temperature measurement APP that supports full-scenario applications such as real-time analysis, offline analysis, and wireless screen projection of temperature measurement images,
• file management.

▍Specifications

Model		JY3
Thermal Imaging Parameters	Detector Type	Uncooled infrared detector
	Detector Resolution	256×192
	Infrared Spectral Band	7.5 - 14 µm
	PJYel Pitch	12μm
	NETD	40mK
	IFOV	3.8mrad
	Frame Rate	25Hz
	Minimum Imaging Distance	0.3m
	FOV	56°×42°
	Focusing Mode	Focus-free
	Measurement Range	-20℃~150℃, 100℃~550℃
	Measurement Accuracy	±2℃ or ±2% of the reading, whichever is greater
Communic ations and Data Storage	Remote Access and Control	Capable of connecting to smart devices via Wi-Fi from up to 8m away
	Device compatibility	Support mobile phones with iOS 11.0 or above and Android 10.0 or above
	Clamp width	Minimum 131mm/Maximum 165mm
	Capture mode	Video, image capture
	Image File Format	.jpg image (with raw radiation data)
	Video file format	.MP4
	OTA	Support OTA upgrade
	Bluetooth	Available
Others	Temperature Analysis	Central temperature point/highest temperature/lowest temperature, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames)
	Palettes	White-hot, black-hot, iron-red, lava, rainbow, rainbow HC, black-red
	Image Mode	Infrared, visible light, PIP, fusion
	Emissivity Settings	0.01-1.00
	Connecting Methods	Wi-Fi, USB Type-C
	Language	English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French, Spain, Italy, Turkey, and Traditional Chinese
	Battery	1050mAh
	Charging Time	About 1.5h
	Charging temperature	0℃~+40℃ (It is prohibited to charge the device in high-temperature environment above 40℃ and low-temperature environment below 0℃)
	Charging Mode	USB Type-C
	Operating Time	About 2h, with charging instructions
	Operating Temperature and Humidity	-10°C~+50°C, 10%~90% (non-condensing)
	Storage Temperature	-20°C~+60°C
	IP Grade	IP54
	Drop protection test	2m
	Authentication	CE/FCC/RoHS/TELEC/DGM/TSCA/WEEE/CMA
	Shock and Vibration	2G(IEC60068-2-6), 25G(IEC60068-2-29)
	Dimensions (H×W×D)	135.6mm×41mm×29.1mm
	Weight	About 125g
	Packing List	JY3 thermal camera for smartphones×1, Type-C USB cable×1

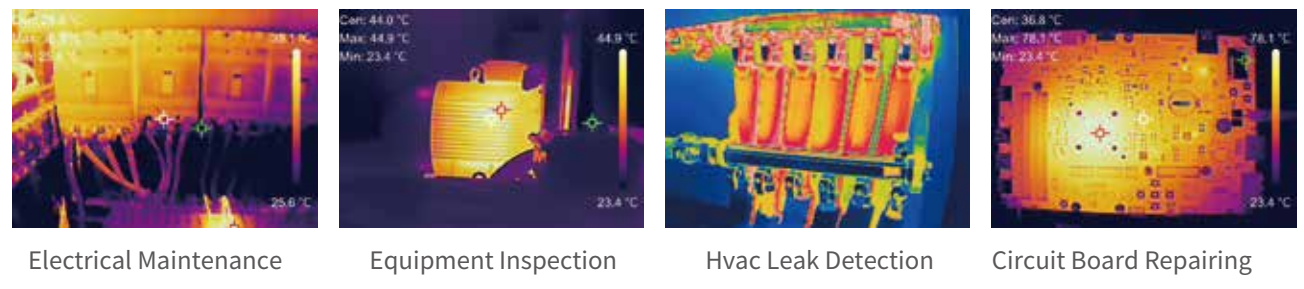

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
