(MSS-R-N711H-N416) Professional Handheld Thermal Camera

Commodity name： (MSS-R-N711H-N416) Professional Handheld Thermal Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Check clearly, solve quickly
Tianxuan N711H/N416 is a professional-grade handheld infrared thermal imaging camera, featuring high resolution and manual focus for temperature measurement. It is equipped with a self-developed 640×512/384×288 infrared detector, providing a high thermal sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.

▍Product Strengths
• Clear Thermal Images, Precise Temperature Measurement
• 12μm high-performance 640×512/384×288 uncooled infrared detector
• NETD is as low as 35mK and can distinguish the temperature differences of 0.035℃
• Plug and play analysis with USB, real-time full-frame transmission and analysis of temperature information
• Professional Functions, Multi-dimensional Design
• Support full-frame high/low-temperature alarms and scheduled interval photographing, and record temperature rise changes
• Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area
• Support 4 image modes+10 palette settings to meet temperature measurement under different requirements
• Support TAS App and PC versions, and other professional thermal image analysis software
• Hard-core Configuration, High-end Experience
• IP grade of IP54 and 2m fall prevention, sturdy and durable
• 3.5-inch touch screen, 640×480 resolution
• Built-in laser pointer module for quick target positioning

▍Specifications

Model		N416	N711H
Thermal Imaging Parameters	Detector Type	Uncooled infrared detector
	Detector Resolution	384×288	640×512
	Infrared Spectral Band	8~14μm
	Pixel Pitch	12μm
	NETD	35mK
	IFOV	1.98mrad	1.31mrad
	Frame Rate	30Hz	25Hz
	Focal Length	6.2mm	9.1mm
	FOV	43.7°×31.9°	48°×38°
	Focusing Mode	Manual focusing
	Measurement Range	-20 ℃~+150 ℃ ; 100 ℃~550 ℃
	Measurement Accuracy	±2℃ or ±2% of the reading, whichever is greater
Camera Functions	Temperature Measuring Mode	Center point/hot and cold spot tracking and temperature display
	Custom Temperature Measurement	Movable points/lines/areas; up to 10 points,10 areas,10 lines
	Measurement Unit	Celsius, Fahrenheit, Kelvin
	Emissivity Settings	0.01-1.00,step size 0.01
	Ambient Temperature Settings	‒10℃~+50℃,step size 1℃
	Distance Settings	1~20m,step size 1m
	Digital Zoom	1×, 2×, 4×, 8×
	Image Mode	Infrared,dual-spectrum fusion, visible light, PIP
	Palettes	10
	Alarm Type	Image alarm
	Temperature Width Stretch	Manual/Auto temperature range
	Laser Pointer	Available
	Video Transmission	UVC,without temperature data
	Visible Light Camera	5MP
	Video/Photo Storage	XX-IR.jpg (infrared image with temperature data) and XX-DC.jpg (visible-light image); H.264 videos without temperature data
	Voice Annotation	Available
	Language	English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French, Spain, Italy, Turkey, and Traditional Chinese
	Display Size	3.5-inch touch screen (640×480)
	Image Naming	Auto/manual naming, naming by scanning QR code
	Memory Card	32GB MicroSD card, extendable to 512GB
	Battery Type	Rechargeable and detachable lithium-ion battery
	Power Interface	USB Type-C
	Connecting Methods	USB, Wi-Fi
	Charging Time	About 3h
	Operating Time	About 4h
	Power Management	Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never
	Analysis Software	TAS PC or APP versions (iOS/Android APP)
Others	Tripod Mounting	Equipped (1/4′′-20-UNC)
	Operating Temperature	-10℃~+50℃
	Storage Temperature	-20℃+60℃
	Relative Humidity	10%~95%, non-condensing
	IP Grade/Drop Protection	2m/IP54
	Shock and Vibration	Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
	Dimensions (H×W×D)	256.4mm×105.1mm×105.3mm
	Weight	About 670g
	Certification Report	CE/FCC/RoHS, etc.
	Packing List	Infrared thermal camera x1, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list

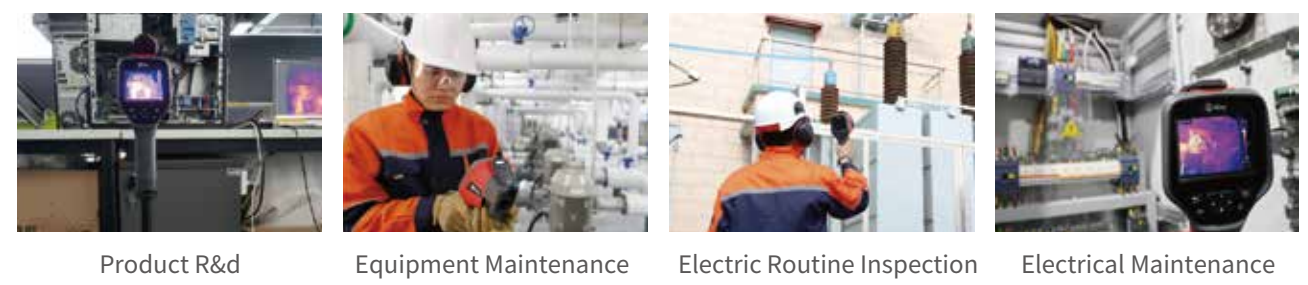

▍Applications

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
