Ultra High Speed Industrial Camera (MSS-C-ITD3L)

Commodity name： Ultra High Speed Industrial Camera (MSS-C-ITD3L)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Product Introduction
MSS-C-ITD3L is a 2.2-megapixel area array high-speed industrial camera with a frame rate of 1490fps at 2048 * 1080 resolution. It features low noise, ultra-high frame rate, long-distance transmission, and supports global shutter, standard C-lens interface, and 40G fiber optic transmission.

▍Product features:
Ultra high speed image acquisition system
· 1490fps@2048 *1080 8 bit
· 2971fps@1024 *1024 8 bit
· Standard C lens interface
· 40G fiber optic ultra high speed transmission
· Complete SDK and software support

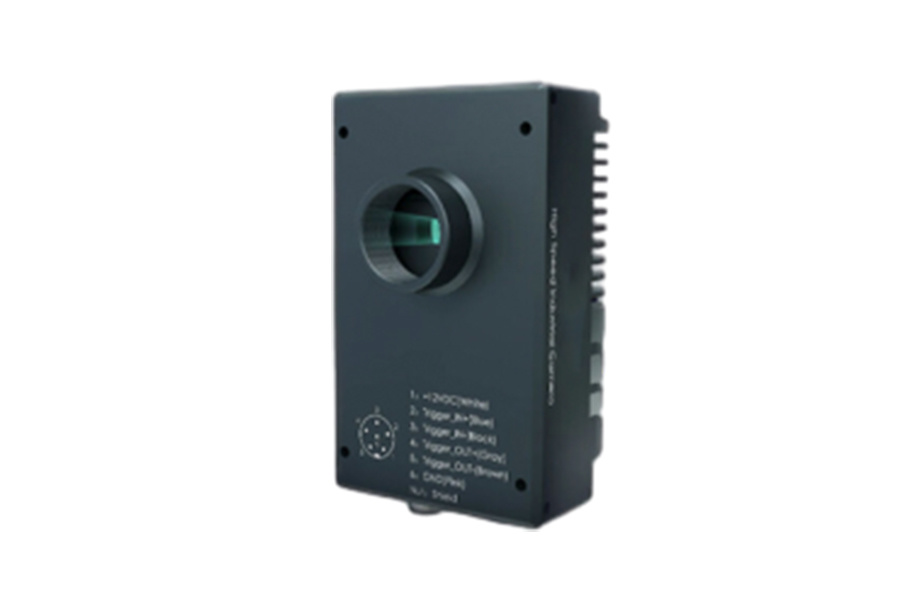

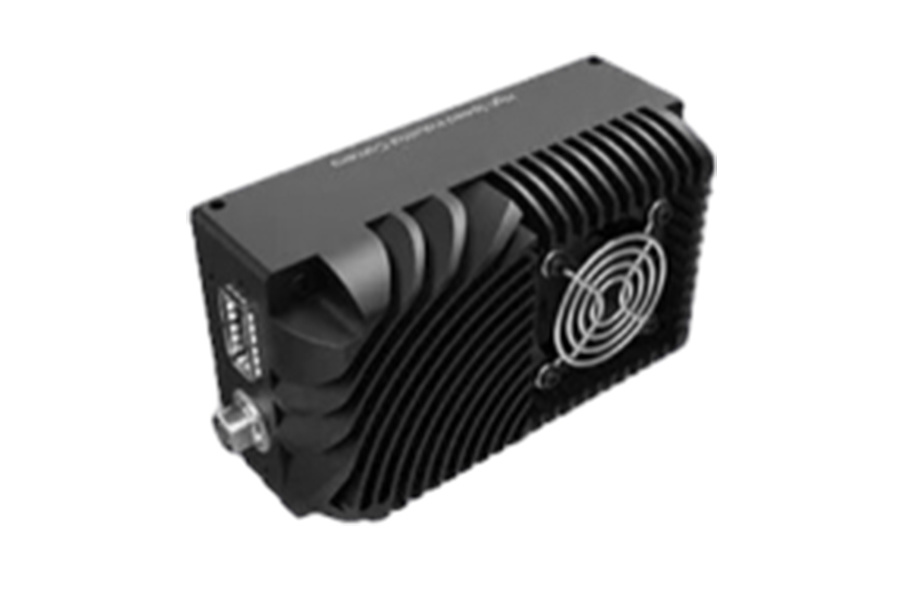

▍Product appearance and dimensions

▍Technical parameter

Model	MSS-C-ITD3L	Resolving power	2048 × 1080 (pixels: 6 μ m x 6 μ m)
Target size	1 inch (12.3mm x 6.5mm)	Continuous data transmission rate	1490 frames per second @ 2.2 million pixels, 8-bit, 2971 frames per second @ 1 million pixels, 8-bit
Dynamic range	53dB@Linear mode, ≥ 90dB@HDR mode	Shutter type	Global shutter, supporting automatic exposure, external triggered exposure, software triggered exposure, etc
Integrated image processing module	FPN denoising, PRNU correction, gamma correction, lens correction, ROI, gain adjustment, H/V binning, image left/right/up/down mirroring, etc	Data interface	40G Ethernet fiber optic interface
Digital I/O	1 isolated trigger input, 1 isolated trigger output, 1 8-PIN expansion interface (1xGPI, 1xGPO, 1xSPI Master)	Data format	Mono 8 bit
Power supply and power consumption	Power supply voltage 12VDC, typical power consumption 17W	Temperature	Working temperature 0~45 ℃, storage temperature -20~60 ℃
Humidity	Working humidity 10 to 80% (non condensing), storage humidity 10 to 80%	Weight	440g

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
