(MSS-C-D4CMOS) Series C-mount USB3.0 CMOS Camera

Commodity name： (MSS-C-D4CMOS) Series C-mount USB3.0 CMOS Camera

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍The Basic Characteristic of D4CMOS Series
D4CMOS series is a Compact & high performance USB3.0 CMOS series camera，it adopts Sony or OnSemi CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
D4CMOS series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The D4CMOS series can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

The basic characteristic of the D4CMOS series cameras are as follows:
· Standard C-Mount camera with Sony or OnSemi CMOS sensor;
· Compact CNC aluminum alloy housing;
· USB3.0 5 Gbps interface ensuring high frame rate;
· Ultra-Fine color engine with perfect color reproduction capability;
· With advanced video & image processing application MSSView/MSSLite;
· Providing Windows/Linux/Mac OS multiple platforms SDK;
· Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

▍D4CMOS Series Datasheet(6)

Model

Sensor & Size

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

D4CMOS-12

12M/IMX577(C)
1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s
0.25mv with 1/30s

7.5@3840x3040
43@1920x1516
122@960x758

1x1
2x2
4x4

0.1ms~2000ms

D4CMOS-10

10M/IMX577(C)
1/2.3“ (5.68x4.26)

1.55x1.55

250mv with 1/30s
0.25mv with 1/30s

8.5@3664x2748
49@1832x1374
137@912x686

1x1
2x2
4x4

0.1ms~2000ms

C: Color; M: Monochrome;

Other Specification for D4CMOS Series
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
ADC	8 Bit
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USB Port: USB3.0 High-speed Port
	Display:17” or Larger
	CD-ROM

▍Dimension of D4CMOS Series
The D4CMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

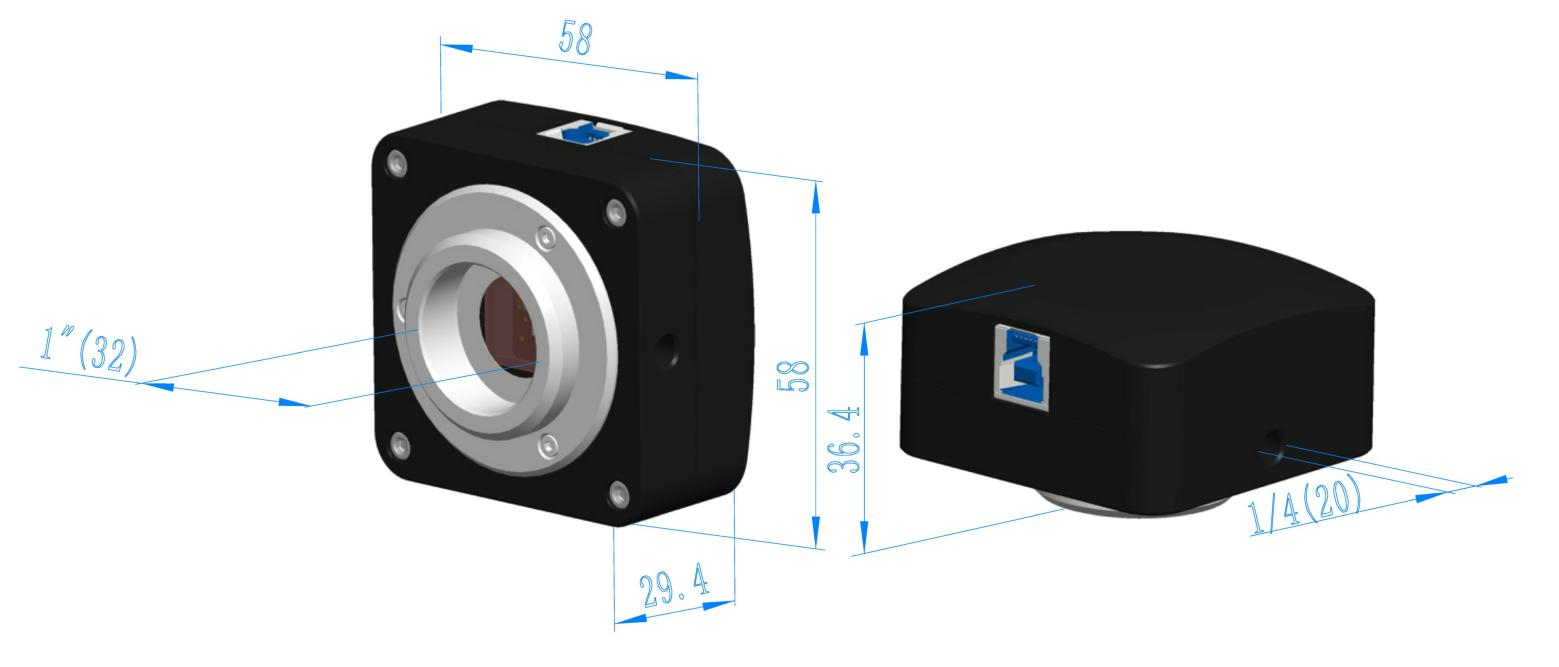

Dimension of D4CMOS Series Camera

▍Packing Information for D4CMOS Series

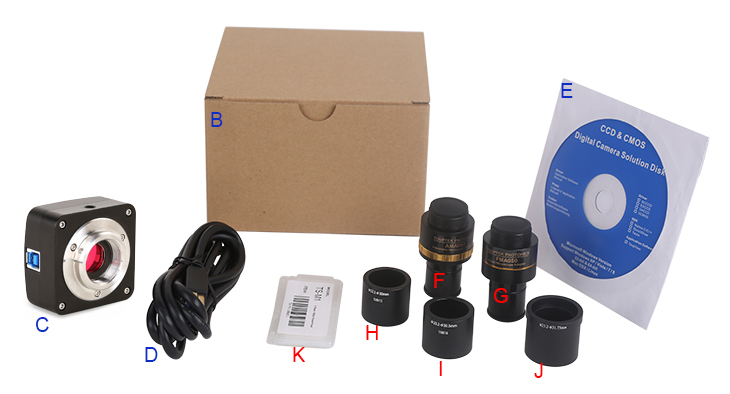

Packing Information of D4CMOS Series

Standard Camera Packing List
A	Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)
C	One D4CMOS series camera
D	High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)
Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
		C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)
G	Fixed lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)
		C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)
	Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
I	(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
J	(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
K	Calibration kit	(X=0.01mm/100Div.); (X,Y=0.01mm/100Div.); (X=0.01mm/100Div., 0.10mm/100Div.)

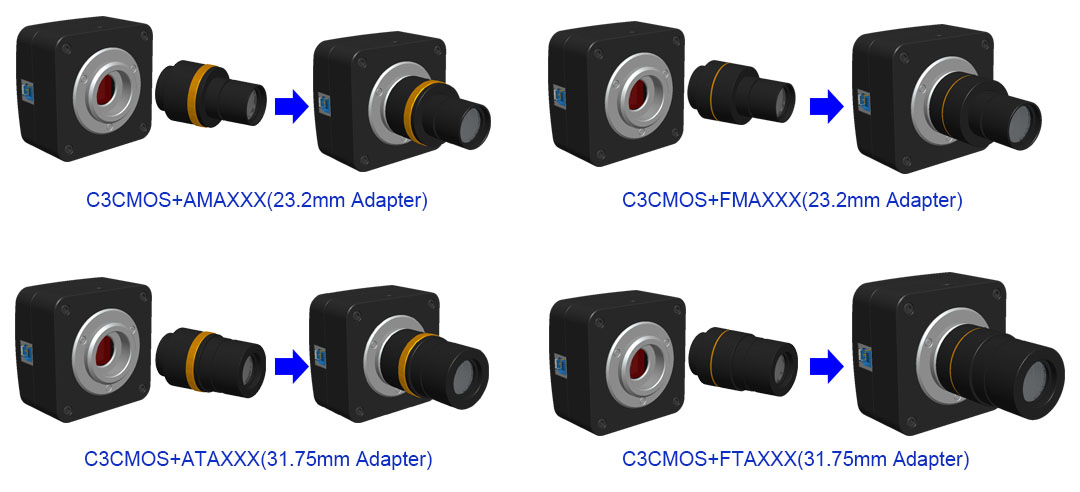

▍Extension of D4CMOS Series with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
