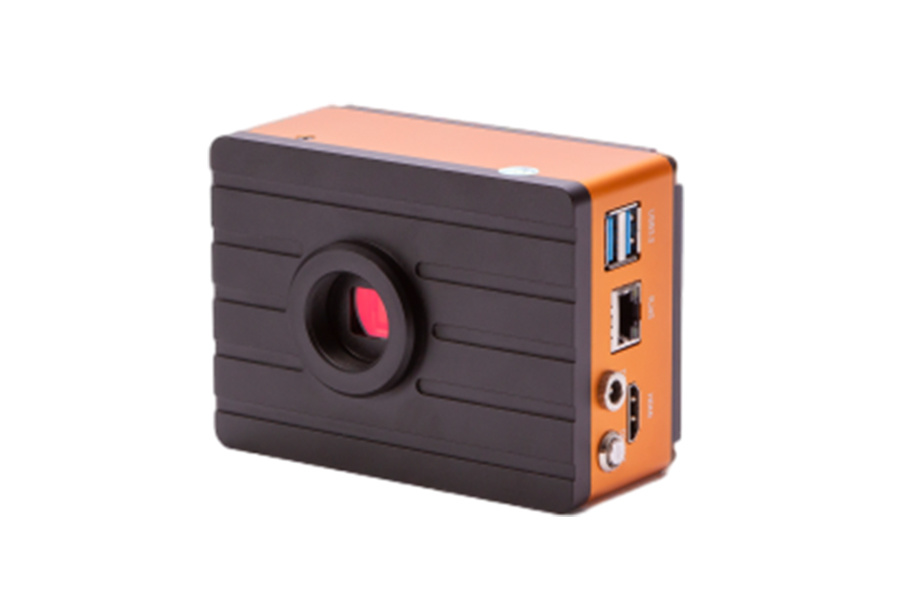

4K Microscope Industrial Camera (MSS-C-4K21N)

  • Commodity name: 4K Microscope Industrial Camera (MSS-C-4K21N)
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Product profile
    product superiority:
    1. HDMI real-time output is connected to HD HDMI monitor, real-time measurement, photo and recording, export data to U disk through the embedded measurement system
    2. The built-in SONY high photosensitive chip has low noise, high sensitivity and true color. The ARM CORTEX A55@1.2GHZ * 4 processor runs at 60 frames and responds quickly.
    3.Support electron microscope, body type microscope, gold phase microscope, biological microscope, 3D microscope and other domestic or imported microscope use.

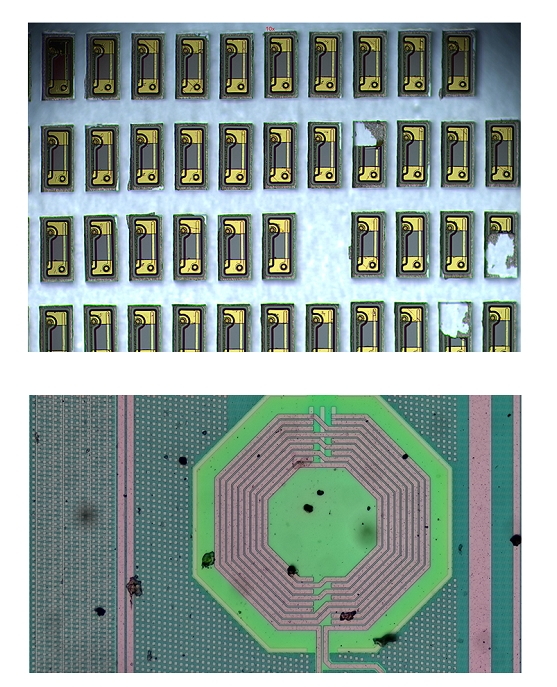

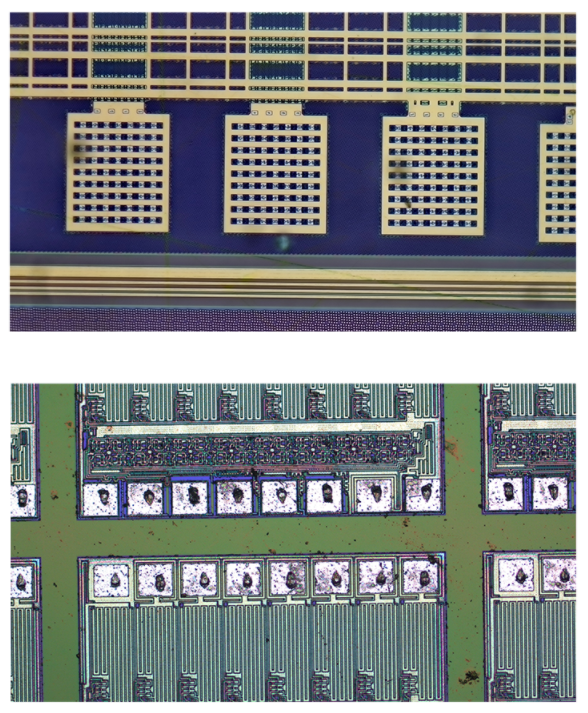

    Product case:


    ▍Technical parameters

    MSS-C-4K21N

    Chip structure

    Ultra HD Smart IP Camera SOC

    Optical size

    1 / 1.8 inch

    operating system

    LINUX

    Pixel size

    2.0um*2.0 um

    The kernel structure

    ARM Cortex A55

    resolution ratio

    3840*2160

    Main frequency speed

    1.2G Hz * 4

    frame rate

    60 fps

    cache

    32KB I-Cache,

    32KB D-Cache,

    512KB L3 cache

    USB joggle

    USB3.0*2

    Intelligent computing

    cell

    Built-in intelligent computing acceleration engine

    Built-in binocular depth acceleration unit

    The built-in matrix calculates the acceleration cells

    network interface

    1000Mb

    working temperature

    0-70 Degrees

    video monitor 525 vidicon video out

    HDMI numeric output

    outline dimension

    130*70*40 mm

    Lens interface

    C joggle

    weight

    1200 g

    Voltage input

    DC  12-24V

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    Your satisfaction and positive feedback is very significant to us.
    Thank you! Have a nice day!
