(MSS-M-BGEN101) Continuous Electric Zoom Auto-Focus Digital Microscope

Autofocus Industrial camera 8MP HDMI Ultra high picture quality High Frames 60FPS Appearance detection

Commodity name： (MSS-M-BGEN101) Continuous Electric Zoom Auto-Focus Digital Microscope

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Product Introduction
BGEN adopts high-performance SONY CMOS sensor, and the camera is embedded with ARM core, which can be directly connected to HDMI display. The camera is equipped with XFCAMView software, with camera control panel, measuring tool bar, camera integrated control tool bar, and auto-focus control panel. The camera parameters or operations can be directly controlled with USB mouse;
BGEN image and video are saved in SD card for on-site analysis and subsequent research;
BGEN is widely used in industrial testing, medical observation, teaching and research, automation systems and other fields.
The first BGEN series product currently developed is BGEN101.

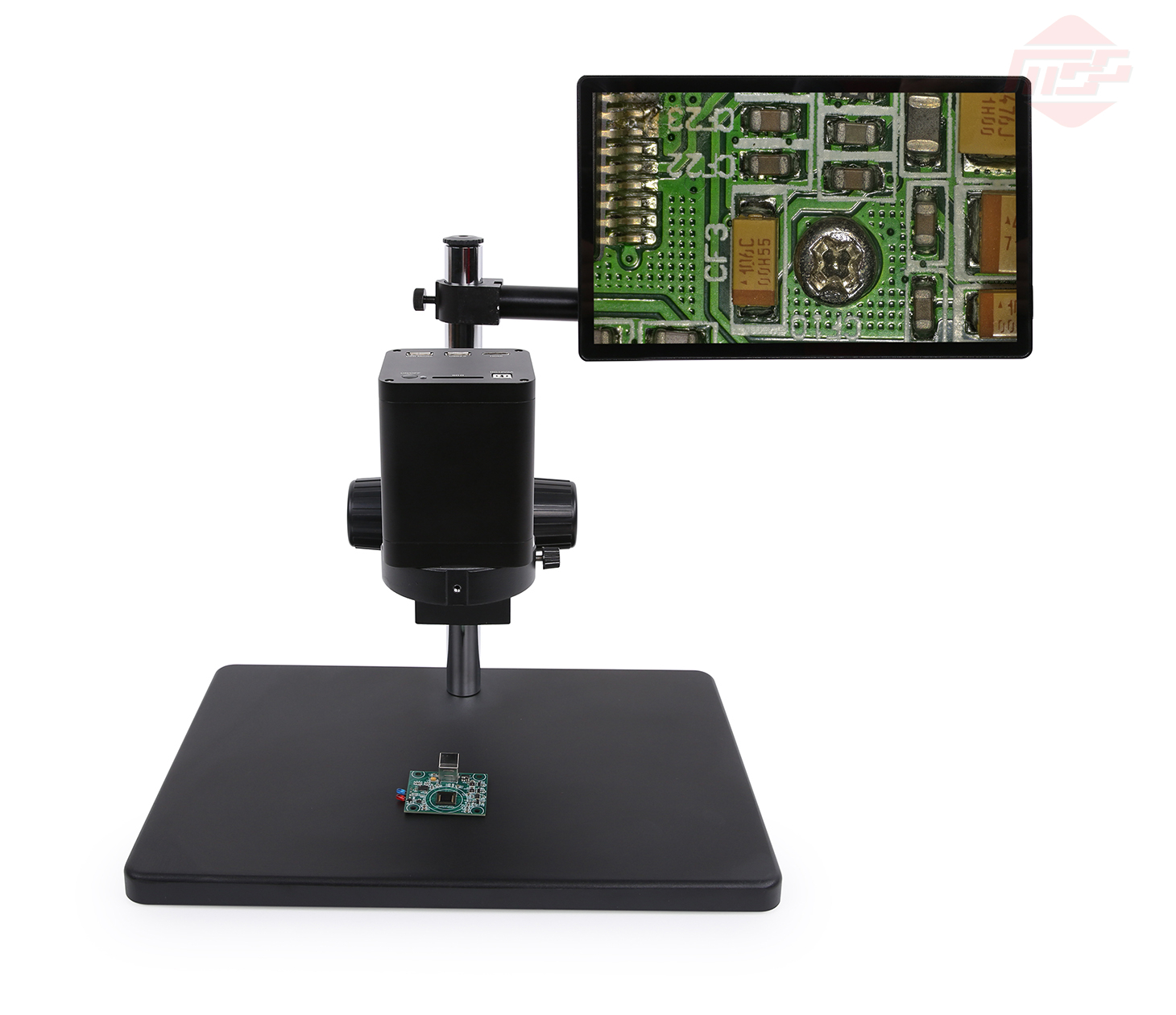

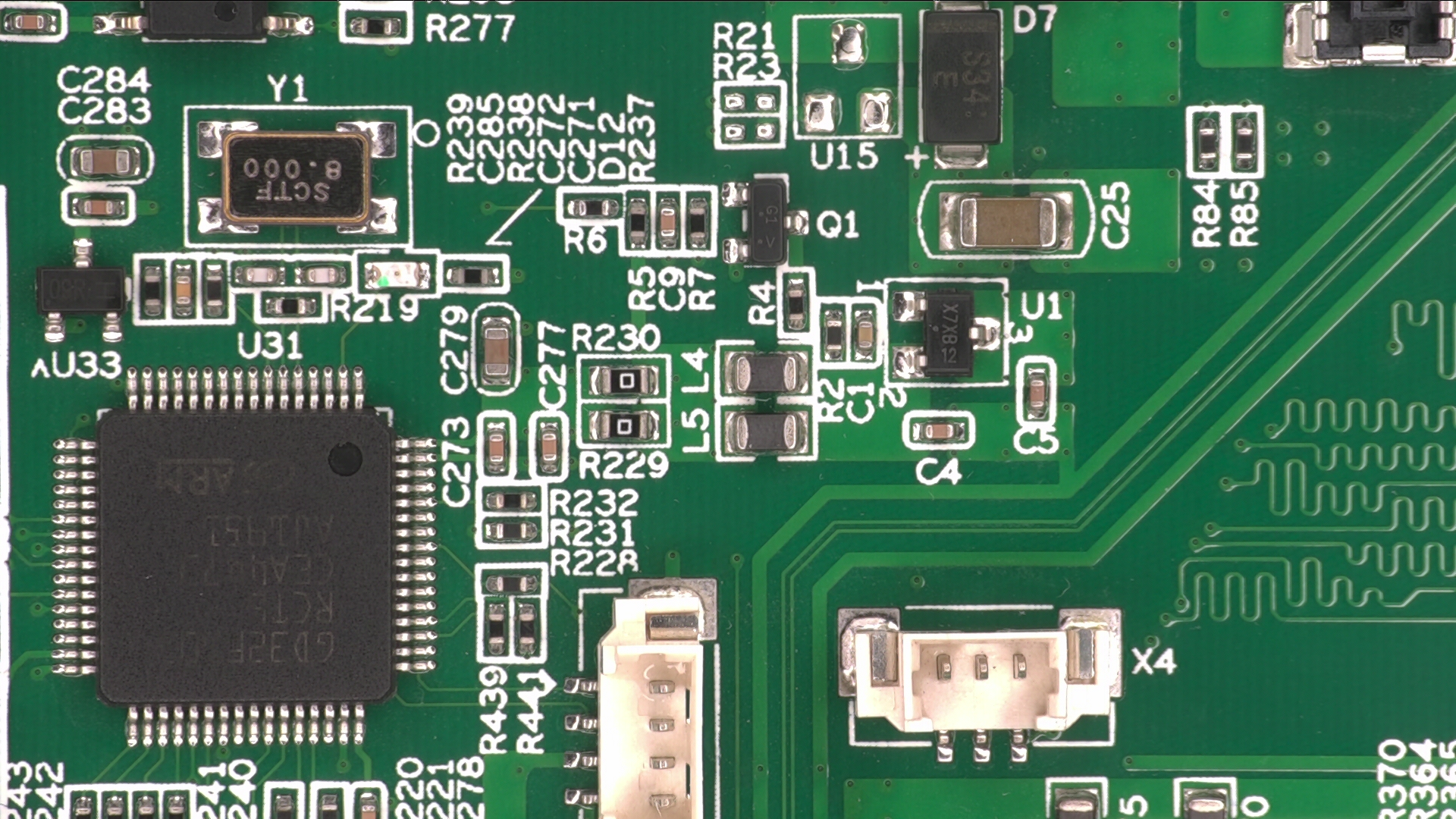

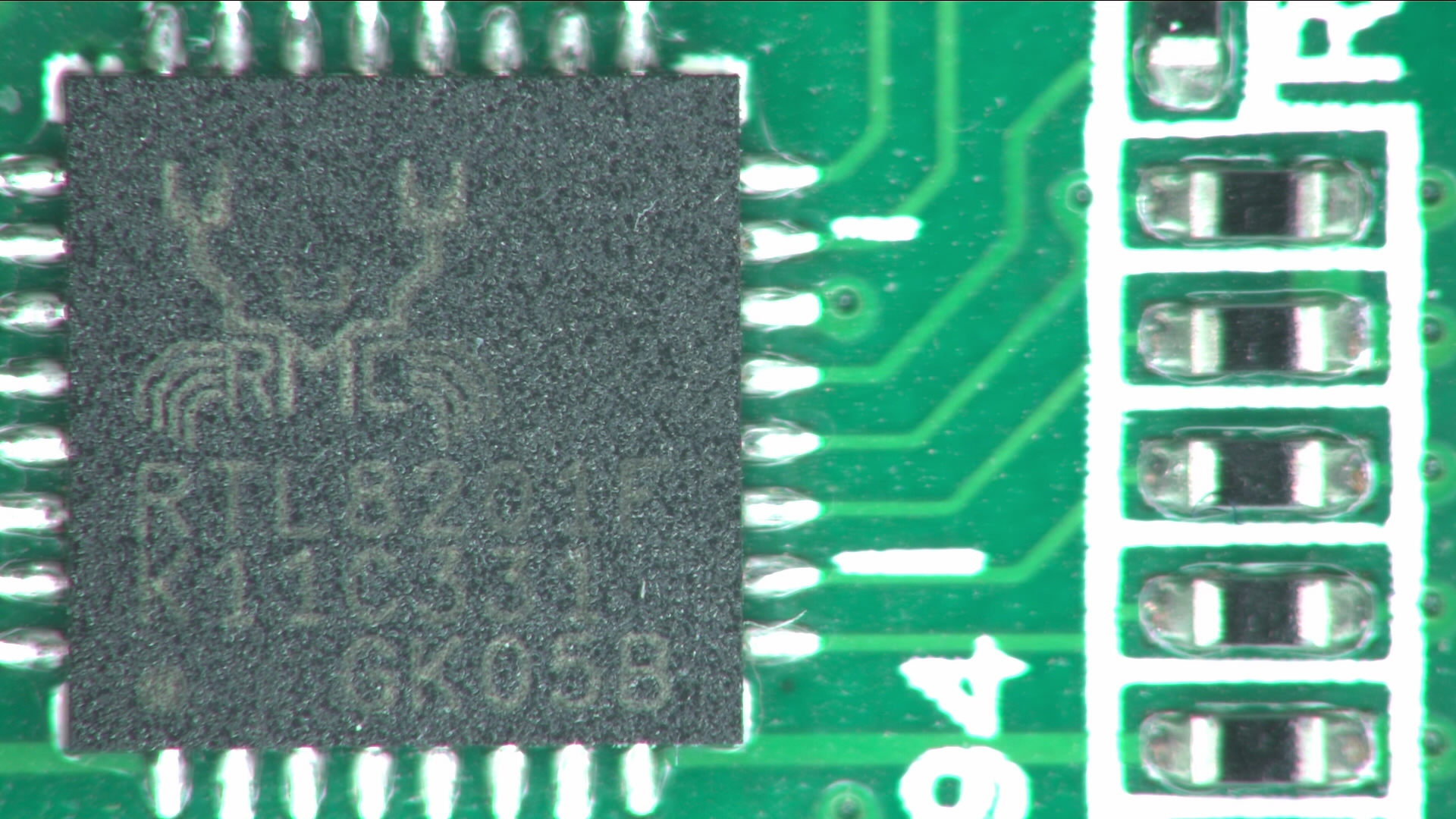

▍BGEN101 shooting case

4.0X

10X

20X

▍Specifications

1.1 Basic parameters of major modules of BGEN series products
1.1.1 BGEN Digital module

Ordering code

Sensor model and size(mm)

pixel

(μm)

G Optical sensitivity

dark current

FPS/Resolution

Sampling average

time of exposure(ms)

H1080PA

1/2.8"(5.57x3.13)

2.9x2.9

921mv with 1/30s

0.15mv with 1/30s

60/1920*1080
(HDMI)

1x1

0.06~918

C: Color; M: Monochrome or black and white;
1.1.2 BGEN Lens module

Working distance(mm)	Zoom range	MTF(lp/mm)	distortion	FOV@1X(mm)	FOV@20X(mm)
156~195	0.028X~0.56X	160	0.5%	200x112.5	10x5.6

1X and 20X are specially defined as the domestication magnification, which is only used to express the relative relationship between the lowest and the highest magnification. Here, the domestication 1X=0.028/0.028; 20X=0.56/0.028;

1.1.3 BGEN 212 Parameter table

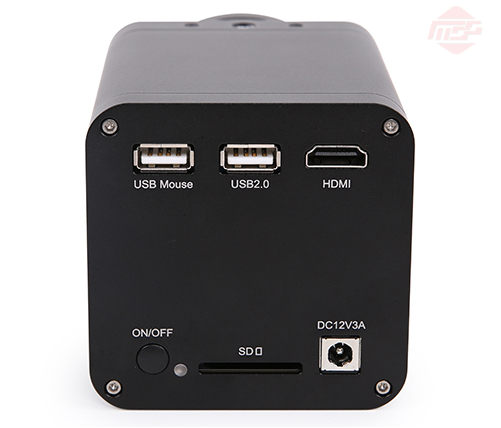

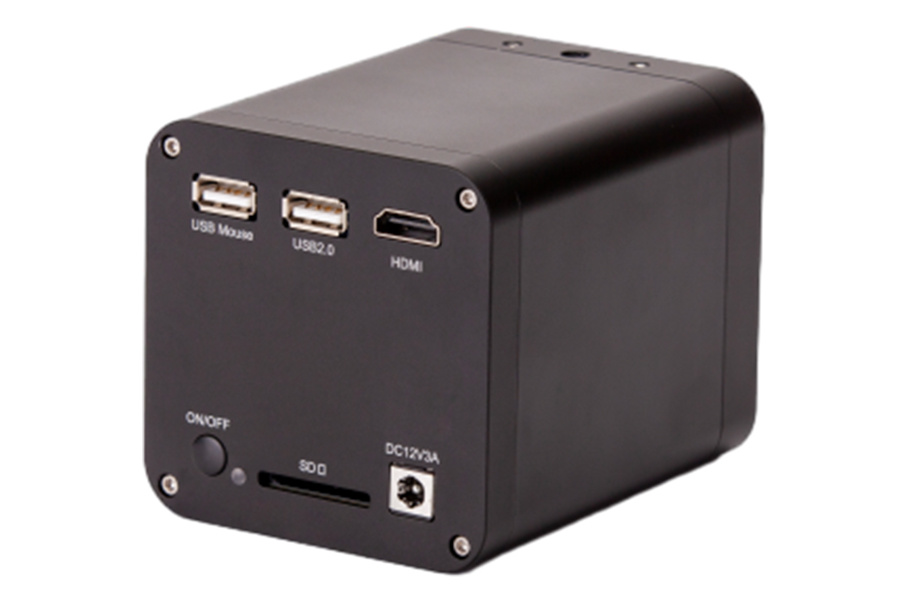

Interface and key functions
		USB Mouse	USB Mouse XCamView for Control
		USB2.0	USB keyboard or other USB control device
		HDMI	HDMI Output
		ON/OFF	Power on/off
		LED	Power LED indication
		SD	SD card slot
		DC12V3A	DC12V3A power input
software function
UI operations	Control XFCamView by USB Mouse
Image capture	Save in the SD card in JPEG format with 2M (1920 * 1080) resolution
Video recording	ASF format, 1080P resolution, 30fps speed saved in SD card
Camera control panel functions	Including exposure, gain, white balance, color adjustment, sharpness and noise elimination control
Measuring tool bar	Including calibration, geometric measurement, measurement parameter export and other functions
Integrated control toolbar	Including zoom, mirror, compare, freeze, crosshair, auto focus, browse and other functions
Auto focus control panel	Including zoom control, automatic focusing, single focusing, manual focusing, reset and other functions
work environment
Operating temperature (℃)	-10~ 50
Storage temperature (℃)	-20~ 60
Operating humidity	30~80%RH
Storage humidity	10~60%RH
Size
Length x width x height	80mm x 80mm x 122mm
Transportation weight	0.75kg

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

Key words:

Autofocus Industrial camera 8MP HDMI Ultra high picture quality High Frames 60FPS Appearance detection
