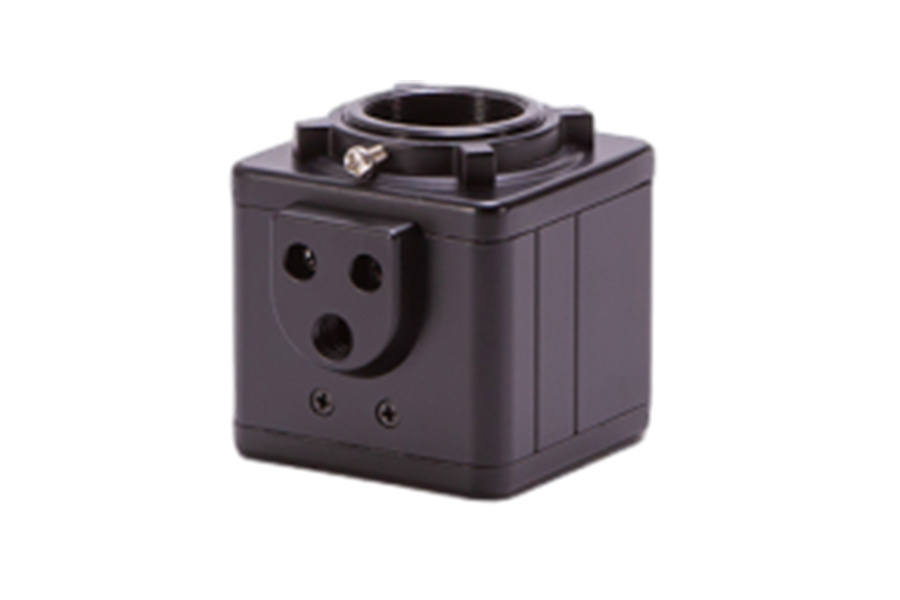

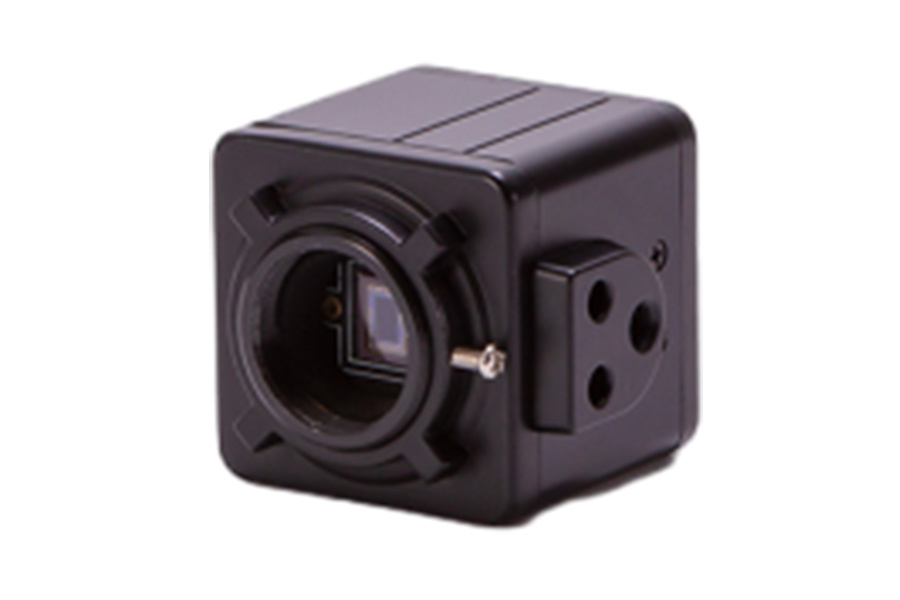

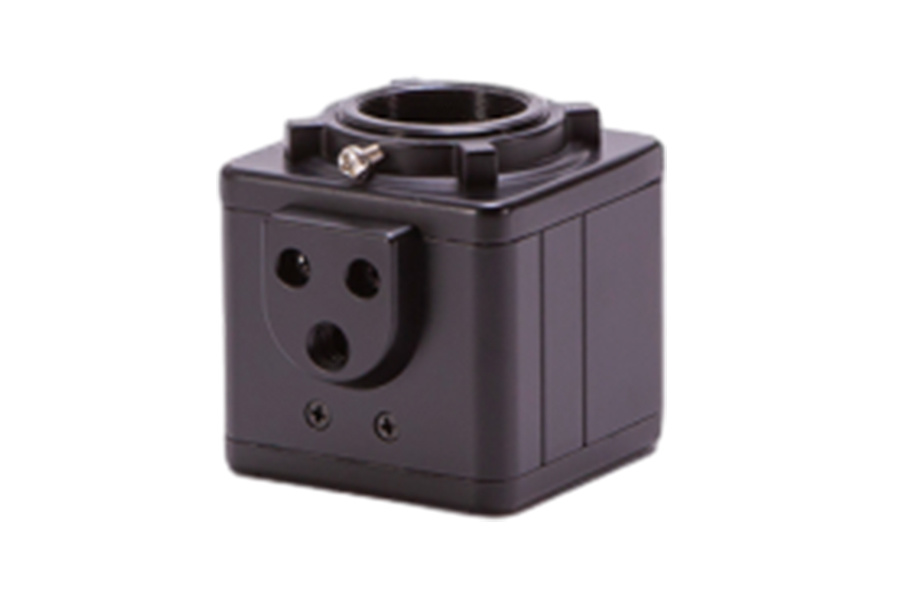

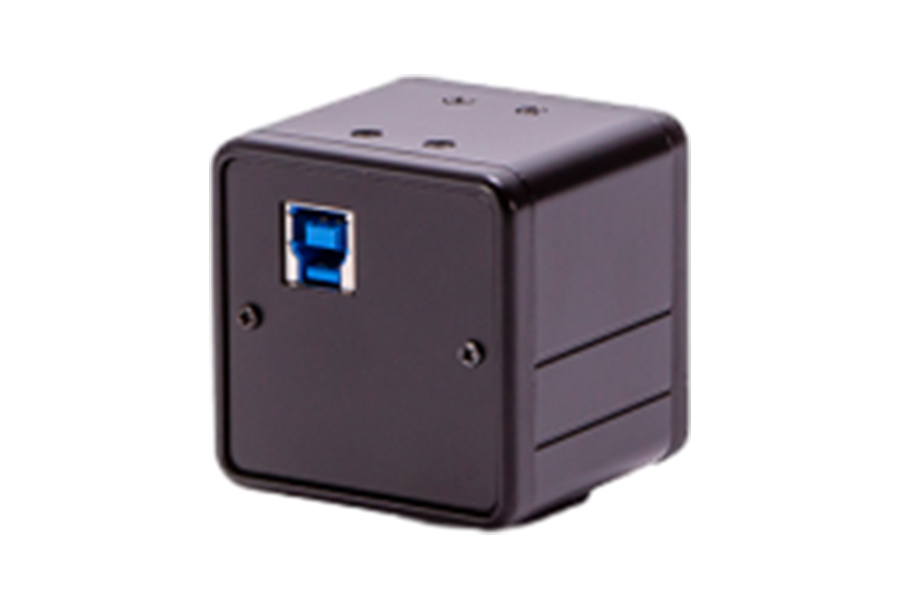

UVC Camera (MSS-C-UVC)

1. Small size and light weight.
2. It can be used without installing the driver to connect the computer
3. C mount/CS mount specification (remove the ring and change it to CS mount.)
4. Small size and light weight

Commodity name： UVC Camera (MSS-C-UVC)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Product features
1. Small size and light weight.
2. It can be used without installing the driver to connect the computer
3. C mount/CS mount specification (remove the ring and change it to CS mount.)
4. Small size and light weight

▍Specifications

Model	MSS-C-UVC200	MSS-C-UVC500	MSS-C-UVC800
Sensor/pixel	1/2.7inch CMOS 2MP	1/2.8inch CMOS 5MP	1/2.8inch CMOS 8MP
Pixel Size（μm）	3.0×3.0	2.0×2.0	1.45×1.45
Maximum resolution	1920×1080	2952×1944	3840×2160
Active Array Size Video Rate	MJPG 30fps （1920×1080） YUV 5fps （1920×1080）	MJPG　30fps（2952×1944） YUV　3fps （2952×1944）	MJPG 30fps（3840×2160） YUV 2fps（3840×2160）
Dynamic range	69dB	72dB	60dB
Shutter method	Rolling Shutter	Rolling Shutter	Rolling Shutter
mount	C-mount
Interface	USB2.0
Image compression	MJPG・YUV
Operating system request	Windows 10　　Linux

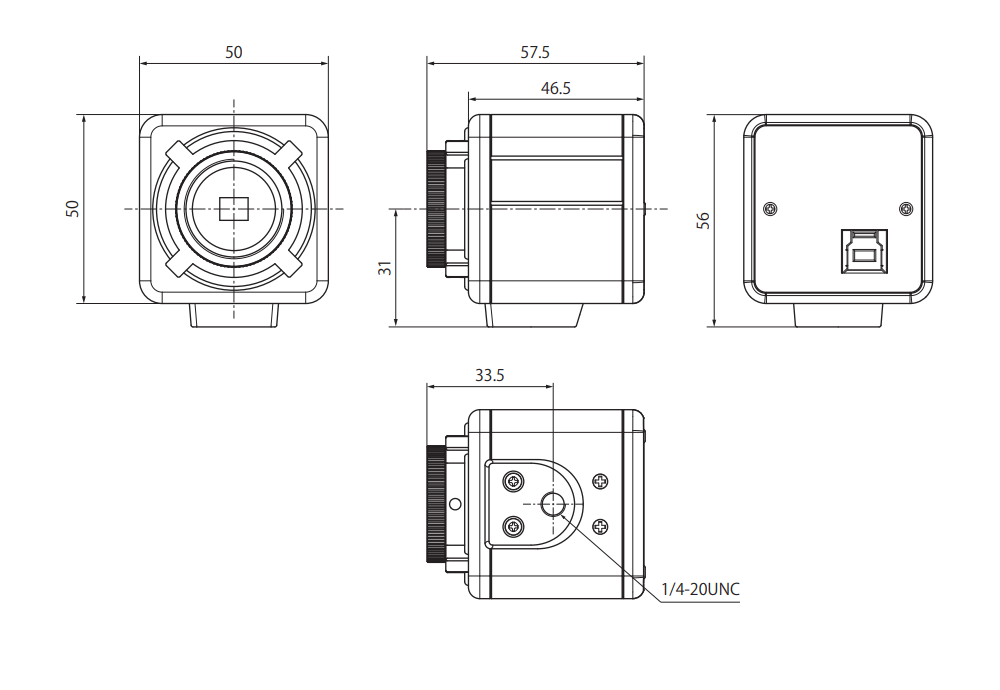

size／weight	47 x 55 x 53mm／About 135g

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
