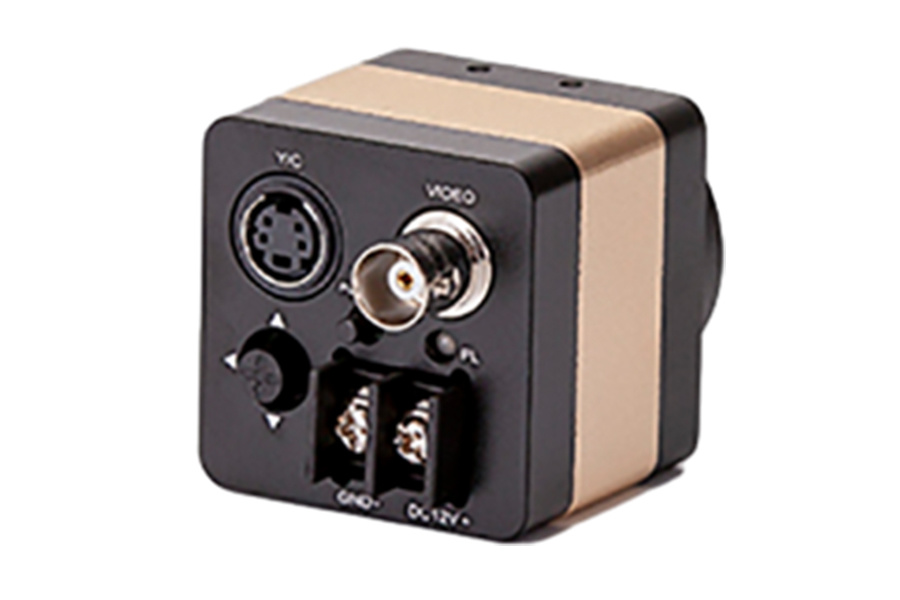

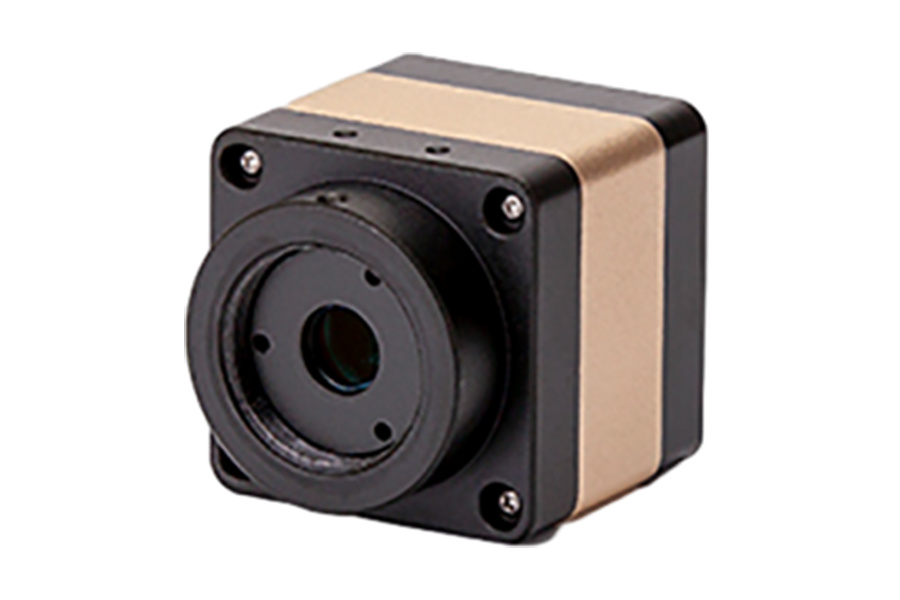

Medical Video Level Industrial Camera (MSS-C-LMT)

CCD slug,1/2 inch Large target size!
BNC/AV signal,0.43 megapixel!
high stability!long life!
System optional!Automatic white balance!

Commodity name： Medical Video Level Industrial Camera (MSS-C-LMT)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Application Field
Industrial inspection, industrial measurement, medical image, image recognition, positioning, industrial monitoring, instrumentation, machine vision and other industrial automation fields.

▍Specifications

MODEL	L-L
Image Sensor Device	Diagonal 8mm (Type1/2)EXview HAD CCD
Effective Pixels	752×582
System of Signal	PAL
Unit cell size	8.6um(H)*8.3um(V)
Minimum illumination	0.0001LUX
S/N Ratio	> 50db
Horizontal Resolution	700line
Lens mounting	C/CS
Y/C & Video output	1.0Vp-p,75Ω
Power Supply	DC12V
Operating Temperature	-20℃-+50℃
Dimension(mm)	50(W)×50(H)×60(D)
Weight(g)	About 135g

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!

Key words:

CCD slug,1/2 inch Large target size!<br> BNC/AV signal,0.43 megapixel!<br> high stability!long life!<br> System optional!Automatic white balance!
