20MP Cooled Camera, the (MSS-C-GM-31)

20 megapixels, capturing high-definition detailed images in one shot
Thermoelectric cooling noise reduction technology
Advanced real-time image stitching and real-time EDF

Commodity name： 20MP Cooled Camera, the (MSS-C-GM-31)

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

20 megapixels, capturing high-definition detailed images in one shot

The GM 31's 1-inch sensor image can cover the most uniform central area of the image plane, with a resolution of up to 20 megapixels, you can capture the high-definition details of your samples in one shot.

Thermoelectric cooling noise reduction technology to meet more professional color fluorescence imaging needs

As with the top-level sCMOS camera technology from Tucsen, the GM-31cooled camera operates at -15 °C and can ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image. More than twice the sensitivity of a CCD, to meet the needs of professional fluorescence imaging.

Real-time intelligent image processing, focused on improving image quality

Without sacrificing speed and image information, the GM-31 offers a variety of real-time intelligent image processing capabilities that allow you to view and capture flawless sample images in real time with the push of a button.

Real-time 3D noise reduction, effectively eliminating random background noise

Before

After

Real-time sharpening, enhanced detail, and

more transparent

Before

After

>50 frames per second high speed video

With a guaranteed field of view, the GM 31 offers a variety of high-speed imaging modes that can be adjusted for fast focus and positioning for an efficient image capture experience.

Resolution	FL -20	CCD
20MP	15fps	<1fps
5MP	53fps	4fps

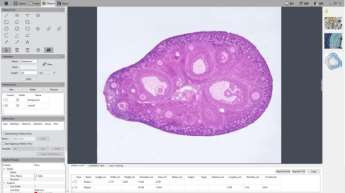

Revolutionary PC Computing Imaging Software Capture V2.0

Unique from the cumbersome process of traditional technology to obtain images after processing, the Capture V2.0 provides real-time image stitching and real-time depth of field fusion. This can automatically complete the image while the operator moves the stage - productivity at its best.

Camera Specifications

Product Model	FL-20
Color/Mono	Color
Sensor Model	Sony
Quantum Efficency	84%@535nm
Resolution	5472(H) x 3648(V)
Pixel Size	2.40μm x 2.40μm
Sensor Size	15.86mm; 1inch
Shutter Mode	Rolling
Read Noise	<1e-
Cooling	Forced air(Ambient at +25℃):-15 ℃
Frame Rate	14fps@5472x3648, 53fps@2736x1824 67fps@1824x1216
Binning	2x2, 4x4
Exposure Settings	Auto/Manual
Exposure Time	0.244ms – 10min
Picture Format	JPG/PNG/TIFF/DICOM
Data Interface	USB3.0
Bit Depth	16bit/8bit
Camera Size	85mm x 85mm x 100mm
Power Supply	12V
Camera Weight	1200g
PC Software	Captrue V2.0
Operating System	Windows(32bit/64bit)
Operating Environment	Operating: 0-40℃ Humidity: 10%-85%
