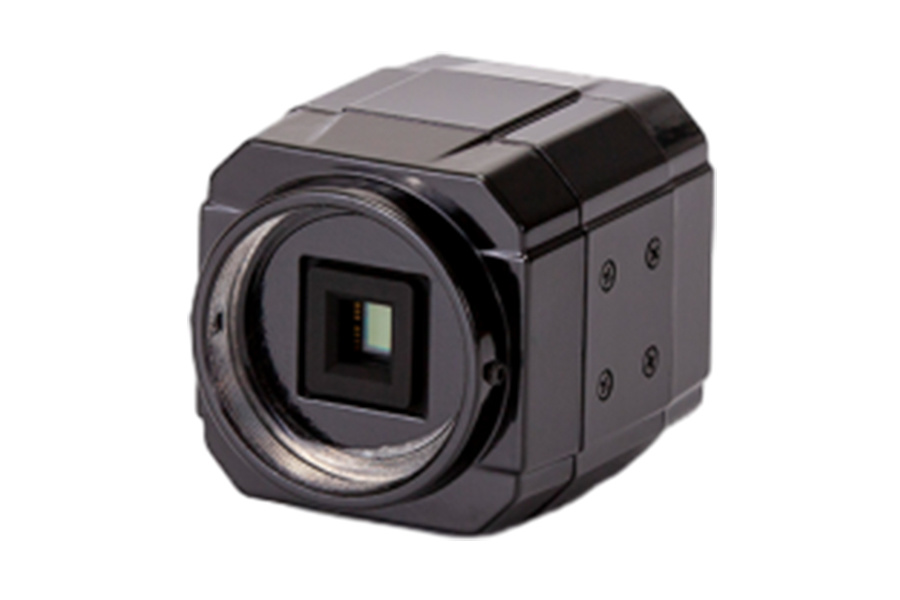

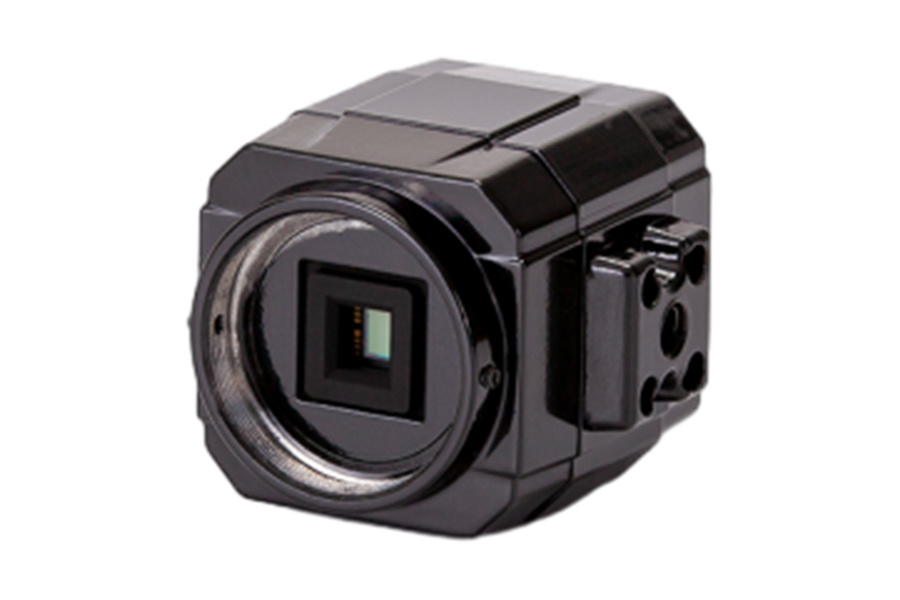

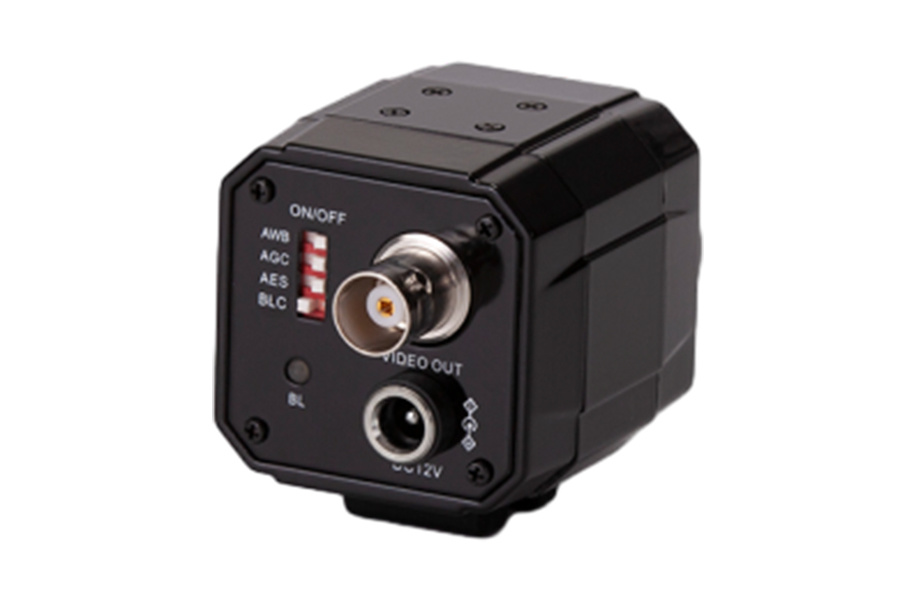

Industrial Equipment Instrument Camera (MSS-C-700L)

Fluid movement/Crisp image quality Video camera Available to select Auto exposure or manual exposure;It has a CCD image sensor which is higher definition than CMOS image sensor.
  • Commodity name: Industrial Equipment Instrument Camera (MSS-C-700L)
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Product characteristics
    1、SONY CCD sensor is adopted for better service life, reliability and stability.
    2、DSP digital signal processing technology makes the image clearer, clearer and more contrast.
    3、Excellent elimination of interference ultrasound in the signal,
    high quality image and high sensitivity
    4、Use 3D digital noise reduction system to obtain clearer color images
    5、Automatic gain control: advanced digital backlight compensation function
    6、Compact structure, compact appearance, low power consumption, can provide camera module,Size:32X32(mm)


    ▍Application field
    Industrial inspection, industrial measurement, medical imaging, image recognition, positioning, industrial monitoring, instrumentation, machine vision and other industrial automation fields.


    ▍Specifications

    MODEL

    MSS-C-700L(color)

    Image Sensor Device

    1/3″SONY EXview HAD CCD II

    Effective Pixels

    NTSC OR PAL:976×494

    System of Signal

    NTSC OR PAL

    Horizontal Resolution

    700 LINE

    Minimum illumination

    5LUX

    S/N Ratio

    > 60db

    Auto White Balance

    ON/OFF(Switchable)

    Automatic Gain Control

    ON:1/OFF:0(Switchable)

    Electronics Shutter Control

    OFF:1/60sec;ON:(Switchable)1/60-1/100,000/sec

    Automatic adjustment

    Backlight Compensation

    ON/OFF(Switchable)

    Lens mounting

    C

    Video output

    1.0Vp-p,75Ω

    Power Supply

    DC12V

    Operating Temperature

    -20℃-+50℃

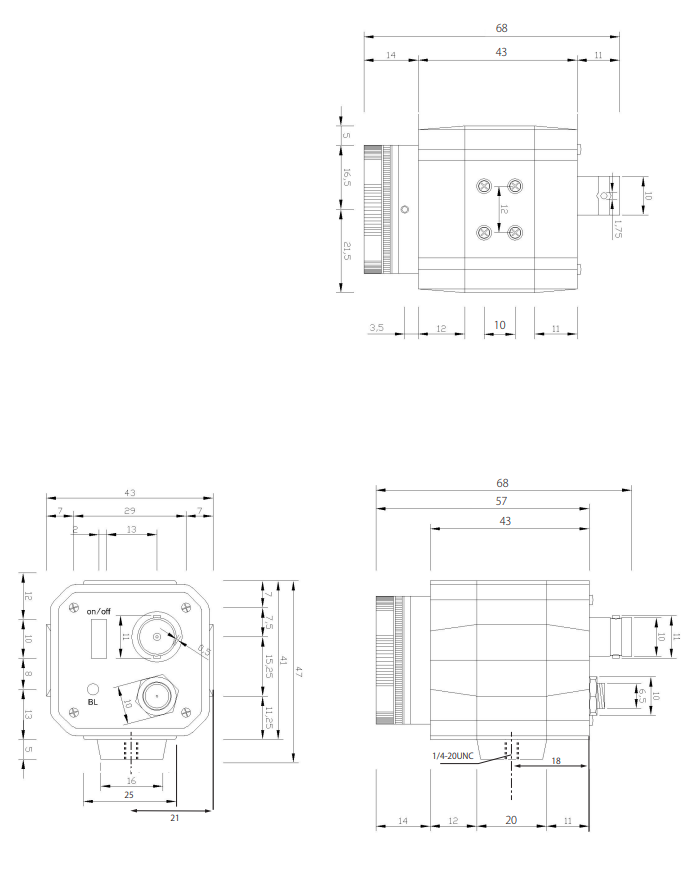

    Dimension(mm)

    43(W)×47(H)×66(D)

    Weight(g)

    About 135g



    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
