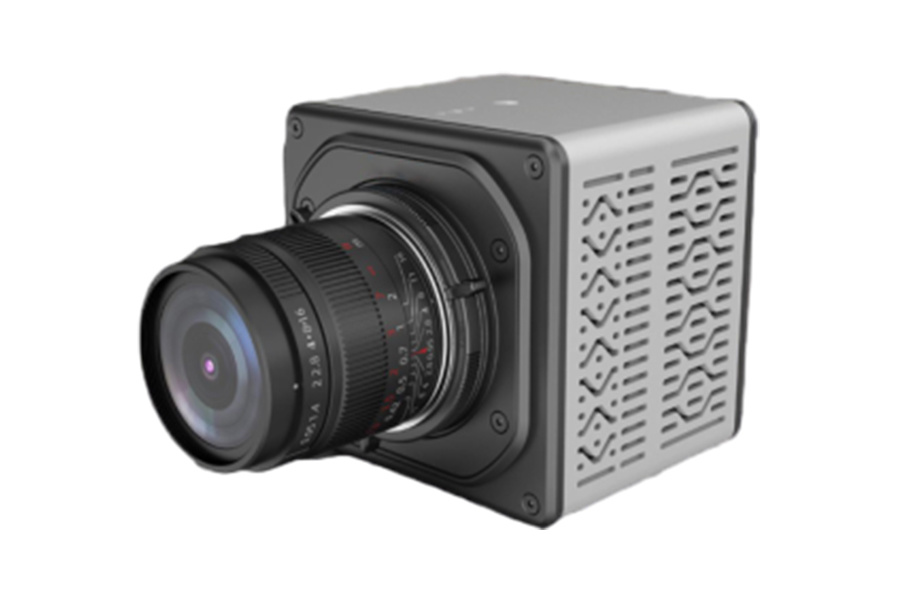

The MSS-101 is a remarkable addition to the MINI series, designed specifically for high-end scientific research and industry. Manufactured by Shanghai Mss International Trade Co., Ltd., this intelligent high-speed camera offers a perfect balance of compact size and efficient heat dissipation.
Featuring a 20-layer PCB stacking design and 10Gbps Serdes on-board interconnection technology, the MSS-101 ensures optimal performance. Its self-developed array parallel storage architecture allows for a maximum storage capacity of up to 4TB, providing ample space for data storage
▍Technical specifications
|
performance
|
|
resolution
|
Frame rate
|
Record time (memory)
|
Record time (hard disk)
|
|
16GB
|
32GB
|
64GB
|
1TB
|
2TB
|
4TB
|
|
1280 x 1024
|
1000FPS
|
13s
|
26s
|
52s
|
13min
|
26min
|
52min
|
|
1280 x 800
|
1280FPS
|
13s
|
26s
|
52s
|
13min
|
26min
|
52min
|
|
1280 x 512
|
2000FPS
|
13s
|
26s
|
52s
|
13min
|
26min
|
52min
|
|
1280 x 256
|
4000FPS
|
13s
|
26s
|
52s
|
13min
|
26min
|
52min
|
|
1280×128
|
8000FPS
|
13s
|
26s
|
52s
|
13min
|
26min
|
52min
|
|
1280×8
|
70000FPS
|
23s
|
46s
|
92s
|
24min
|
48min
|
96min
|
▍Specifications
|
Model number
|
TYPE
|
MSS-101
|
|
Maximum resolution
|
Full Resolution
|
1280 x 1024
|
|
Full shot speed
|
Full Frame Rate
|
1000fps
|
|
Maximum shooting speed
|
Maximum Frame Rate
|
70000fp
|
|
Minimum exposure time
|
Minimum Exposure Time
|
1μs, customized for 100 NS
|
|
Pixel size
|
Pixel Size
|
14.6μm
|
|
Standard memory
|
Standard RAM
|
16G, 32G, and 64G are optional
|
|
Extended memory
|
Extended Memor
|
1T, 2T, and 4T are optional
|
|
Dynamic range
|
Dynamic Range
|
60dB
|
|
Analog gain
|
Analog Gain
|
X 2, x 4, x 8
|
|
Bit depth
|
Bit Resolution
|
8bit/10bit/12bit
|
|
Shutter type
|
Shutte Mode
|
Global shutter
|
|
colour
|
Color
|
Monochrome (M)/Colorful (C)
|
|
Window collection
|
ROI
|
support
|
|
Lens Mount
|
Lens Mount
|
E interface, can be connected to F interface, C interface, EF interface
|
|
Data Interface
|
Data Interface
|
10 Gigabit Ethernet, Adaptive Gigabit Ethernet
|
|
Sensitivity
|
Sensitivity
|
ISO56000(M);ISO21000(C)
|
|
Fan control
|
Fan Control
|
Supports on/off, adaptive speed based on temperature
|
|
Operating Temperature/Humidity
|
Operating Temperature/Humidity
|
Standard -10~50 ºC, below 95% (without condensation), customizable -35~65 ºC wide temperature version
|
|
Video Signal Output
|
Video Signal Output
|
Ethernet
|
|
Recording Mode
|
Recording Mode
|
Start, End, Center, Random, Manual
|
|
Trigger Mode
|
Trigger Mode
|
Manual, IO, Image
|
|

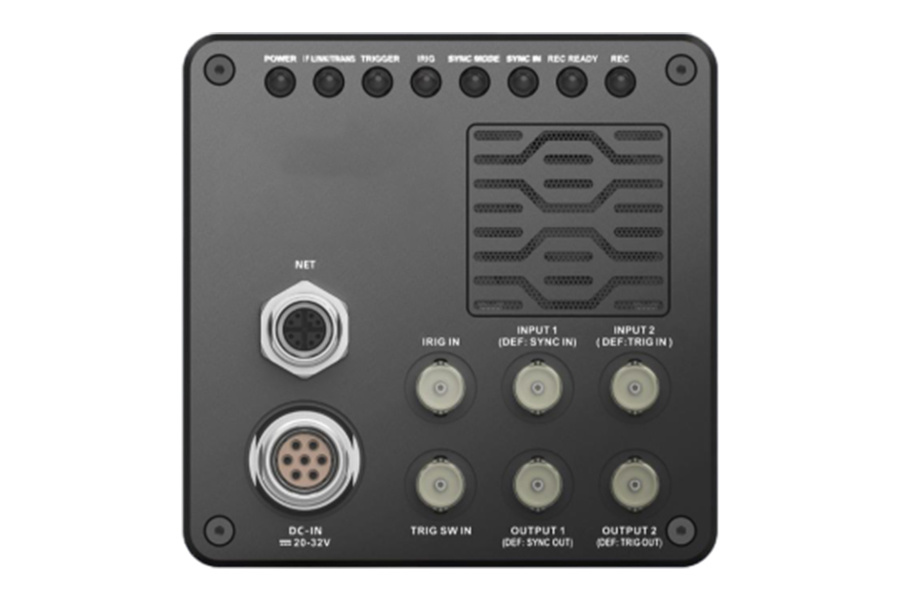

External Signal
|
External Signal
|
Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIG
Output: trigger, synchronization signal, ready signal
|
|
Power Supply
|
Power Supply
|
DC24V
|
|
Dimensions (excluding lens)
|
Dimensions (excluding lens)
|
90D × 110W × 110H, excluding raised parts
|
|
Weight
|
Weight
|
<1.6kg
|
|
Power Consumption
|
Power Consumption
|
<30W
|
|
Standard Accessories
|
Standard Accessories
|
Power cord × 1. AC adapter × 1. Network cable × 1. Camera control software × 1. User manual × 1. Factory certificate of conformity × one
|
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
