Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
Dark Signal

FPS/Resolution

Binning

Exposure

MSS-4K8MA

4K/Sony IMX334(C)
1/1.8"(7.68x4.32)

2.0x2.0

505 mv with 1/30s
0.13 mv with 1/30s

60@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)

1x1

0.04ms~2000ms

MSS-4K8MB

Sony IMX485(C)
1/1.2"(11.14x6.26)

2.9x2.9

2188mv with 1/30s
0.39mv with 1/30s

60@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)

1x1

0.04ms~2000ms

MSS-4K16MA

4K/Sony IMX183(C)
1/1.06"(13.06x7.27)

2.4x2.4

461 mv with 1/30s
0.21 mv with 1/30s

30@3840x2160(HDMI)
30@3840x2160(NETWORK)
30@3840x2160(WiFi,GE)

1x1

0.04ms~2000ms

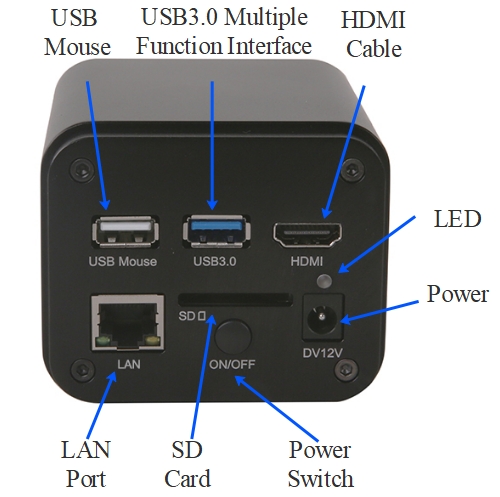

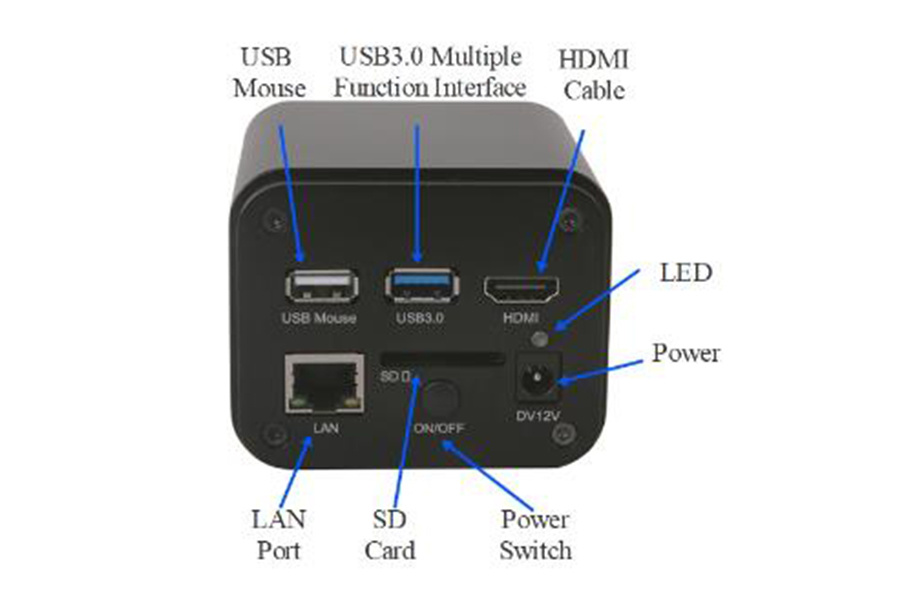

Interface & Button Functions

USB Mouse

Connect USB mouse for easy operation of the embedded XCamView software

USB3.0

Connect USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode;

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution

LAN

Gigabit Ethernet port to connect to the peripheral for the video streaming

SD

Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage

DC12V

Power adapter connection (12V)

ON/OFF

Power Switch

LED

Camera status indicator

Other Specification for HDMI Output

UI Operation

With USB Mouse

Image Capture

8M (3840*2160) JPEG Image in SD Card or USB Flash Disk
16M (5440*3060) JPEG Image in SD Card or USB Flash Disk

Video Record

Video Format：8M(3840*2160) H264 Encoded MP4 Format
Video Recording Frame Rate：50~60FPS(XCAM4K8MPA), 26~30FPS(XCAM4K16MPA)(related with the SD card speed class and video resolution)

Camera Control Panel

Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison(Video~image, image~image, Freeze, Cross, Browser Function

Other Specification for GE Output

White Balance

Auto/Manual/ROI White Balance

Color Technique

Ultra-Fine Color Engine (USB)

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Video

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

Ethernet Port: RJ45 Ethernet Port

Display:   19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/2A Adaptor

Overall Dimensions

Width x Depth x Height

98.3 mm (3.87”) x 65 mm (2.56”) x 78mm (3.07”)

Shipping Weight

0.47 kg (1.0lbs)
