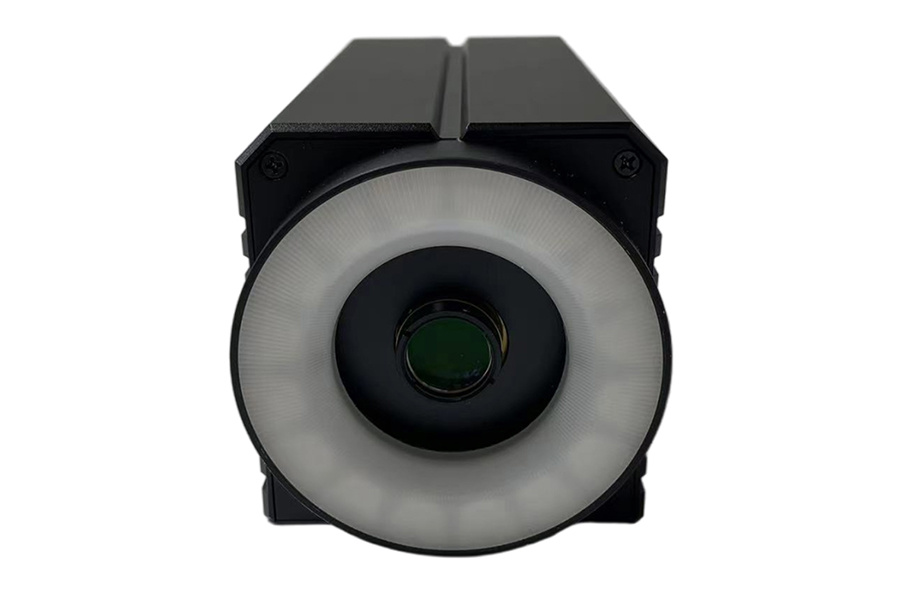

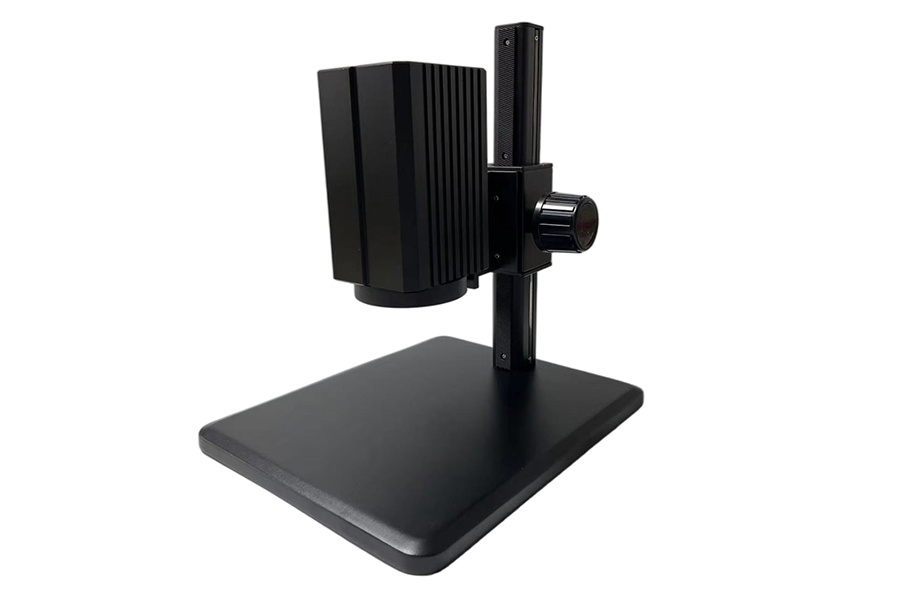

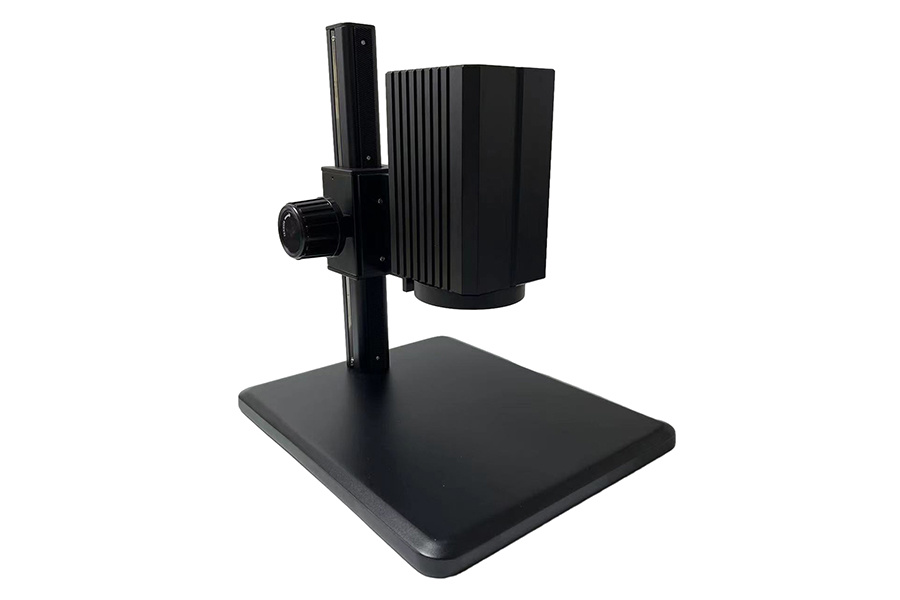

Electric zoom all-in-one machine (MSS-M-B433)

  • Commodity name： Electric zoom all-in-one machine (MSS-M-B433)

Category:

Microscope

Email:

shmss@mss-tech.cn

Get Quote
Also Like
  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

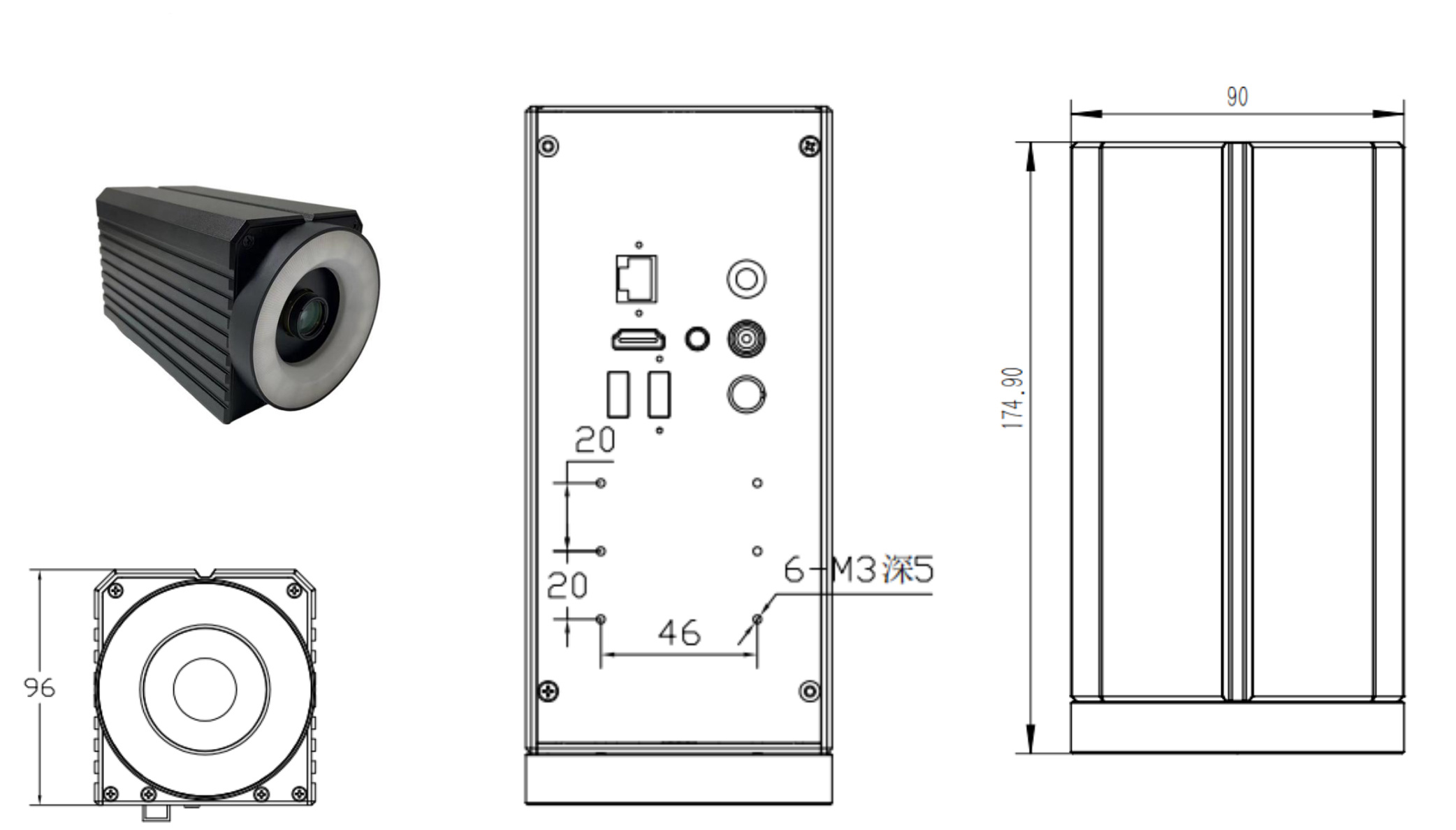

    ▍Physical Dimensions

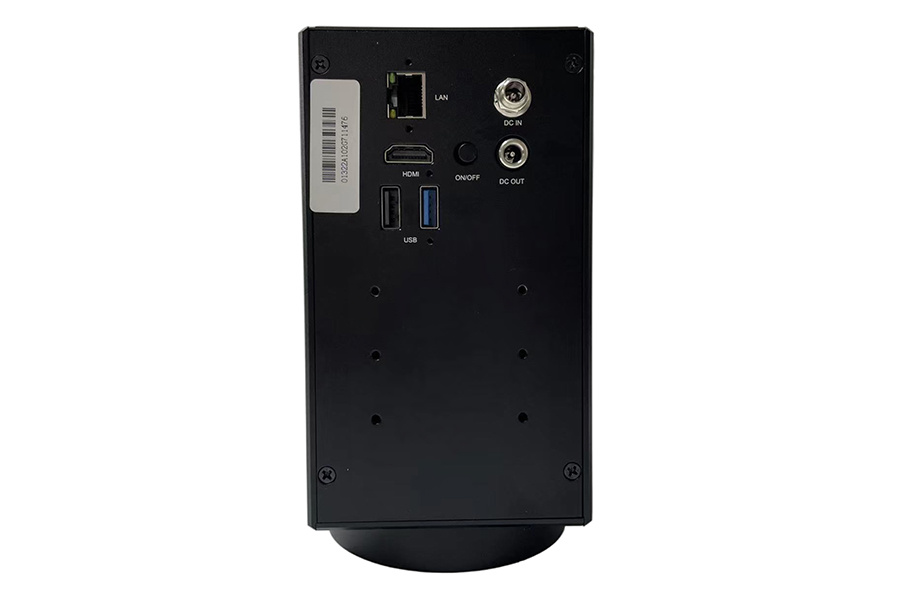

    ▍Camera Interface Introduction


    ▍Camera Parts and Accessories
    1.Back-end component: With HDMI support 1080P @ 60Hz or 1080P @ 50Hz display.


    ▍Camera Installation Information
    1.Use HDMI cable to connect the monitor with camera.
    2.Connect mouse.
    3.Use appropriate power supply.

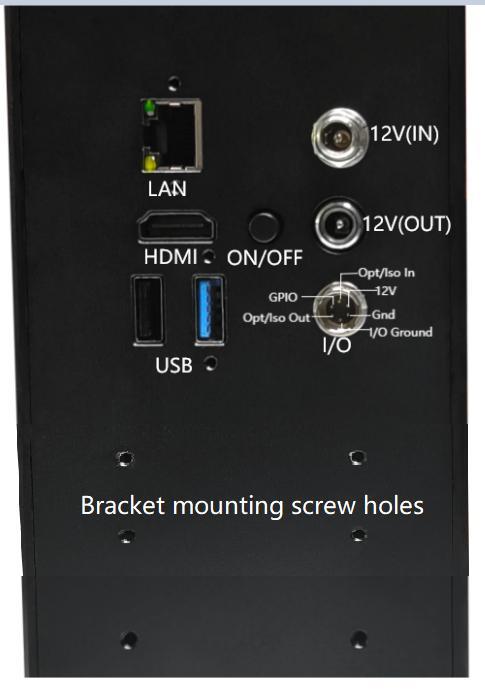

    ▍I/O pin definition table

    Pin

    signal

    I/O type

    Description

    1

    12V

    Input

    +12V DC power supply

    2

    Opt-Iso In

    Input

    Optocoupler isolated input

    3

    GPIO

    Input or output

    Configurable input or output

    4

    Opt-Iso Out

    Output

    Optocoupler isolated output

    5

    I/O Ground

    Input

    Signal ground

    6

    Gnd

    Input

    Power ground

    This product uses HRS 6PIN aircraft carrier model HR10A-7R-6S, and its corresponding HRS 6PIN aviation male model HR10A-7P-6P.


    ▍Technical Specifications

    Image Sensor

    Colour CMOS

    Focus Mode

    Fixed Focus

    Pixel

    2 M pixels

    Pixel size

    1/2〞

    Menu

    Digital UI design

    Method of Operation

    Mouse

    Power DC

    DC12V

    Output method

    HDMI / LAN

    Display Frame rate

    60fps@1280*720(MJPEG)

    60fps@1920*1080(MJPEG)

    Scanning method

    Line by line scanning

    White Balance

    Auto/Manual

    Exposure

    Auto/Manual

    Shutter Speed

    1/50s(1/60s)～1/10000s

    Optical magnification

    0.70~5.0

    Digital magnification

    1.0 ~ 6.0

    Digital zoom

    Support

    Saving function

    Support U-disk /PC storage
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
