▍Introduction to XWJ-002 Series
XWJ-002 is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view by TossTek Photonics. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. XWJ-002 is the abbreviation of Auto-focus Digital Microscope. Different products in the XWJ-002 series can be formed with different part to satisfy the applicatuon requirement.
XWJ-002 can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. XWJ-002 also supports autofocus mode and manual focus mode.
XWJ-002 comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has MSPView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by XWJ-002 can be saved on an SD card for on-site analysis and follow-up research.
XWJ-002 can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
XWJ-002 supports HDMI/USB/ETH/WiFi control and video output (TossView). The frame rate of the output is 4K/30FPS, and the zoom range is 1X~18X. It also supports electric zoom and auto focusing.

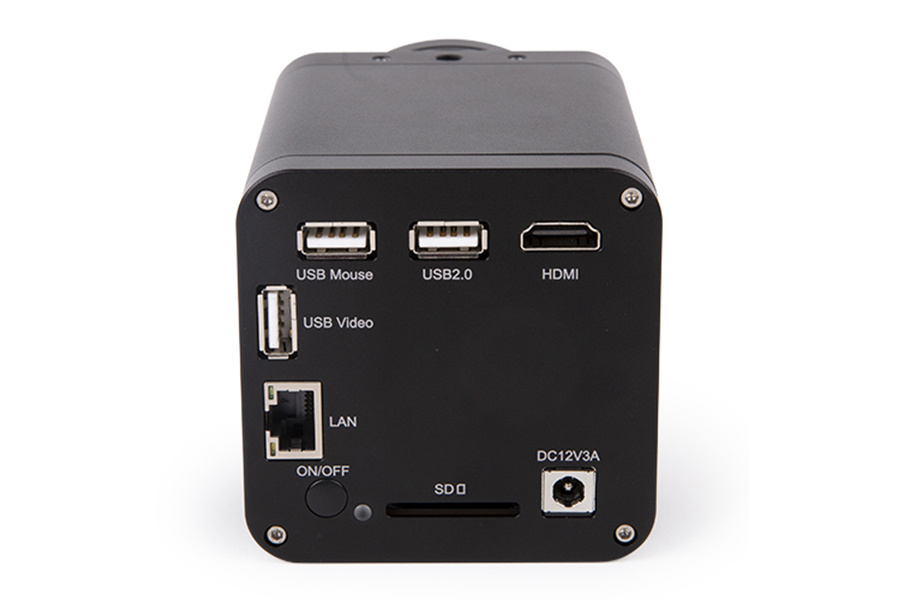

Figure 1-1 XWJ-002 Front and Back View

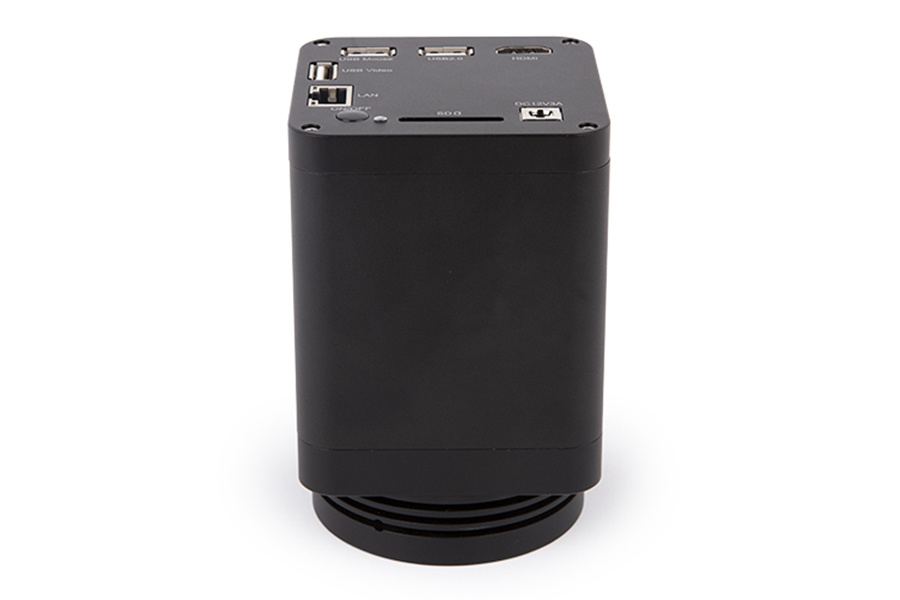

Figure 1-2 XWJ-002 Side and Front(with LED light) View

▍The Module Specifications Of XWJ-002
1.1 XWJ-002 Camera Module Datasheet

C: Color; M: Monochrome;

1.2 XWJ-002 Lens Module Datasheet

1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021;


1.3 XWJ-002 Light Module

DRL: LED direct ring light with adjustable brightness; NPC: No power cable
XWJ-002 can use AALRL-200-7650 as external light for the large FOV illumination

XWJ-002 Characteristic And Specification
The XWJ-002 comes with XJ1 HDMI camera, JT1 lens and ZM1 light source(Optional);

▍The Basic Characteristic of XWJ-002
• 5 groups 16 elements EMZO with 0.0218~0.392X, 18X zoom ratio, supports auto and manual focus
• 250mm standard working distance with 205~255mm depth of field
• At standard working distance, the large field of view 255mm*145mm at low magnification, helping users to quickly locate the target object, the small field of view 14.2mm*8mm at higher magnification, helping users to observe microscopically
• Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
• 4K HDMI/USB/ETH/WiFi multiple video outputs
• 4K/1080P auto switching according to monitor resolution
• SD card/USB flash drive for captured image and video storage, support local preview and playback
• Built-in mouse control software MSPView, all functions can be realized with USB mouse
• Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
• Multi-language support
• Head suction LED ring light, the brightness can be directly controlled by MSPView
• With the adapter bracket of 76mm diameter, a electric controlled continuous zoom XWJ-002 can be built



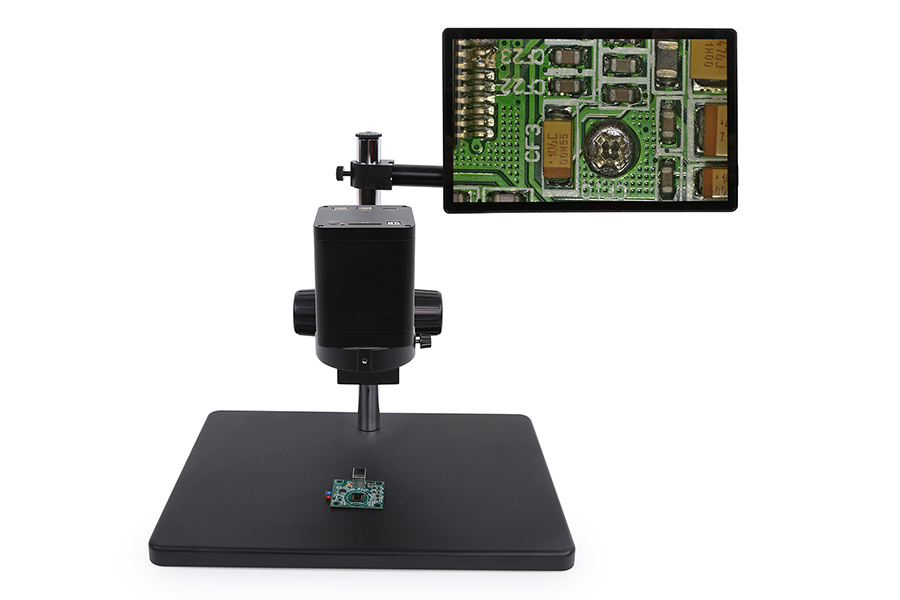

Figure 1-3 TPS-30A(bracket)+XWJ-002+4K Monitor

1.2.2 Specification of XWJ-002



Dimension of XWJ-002

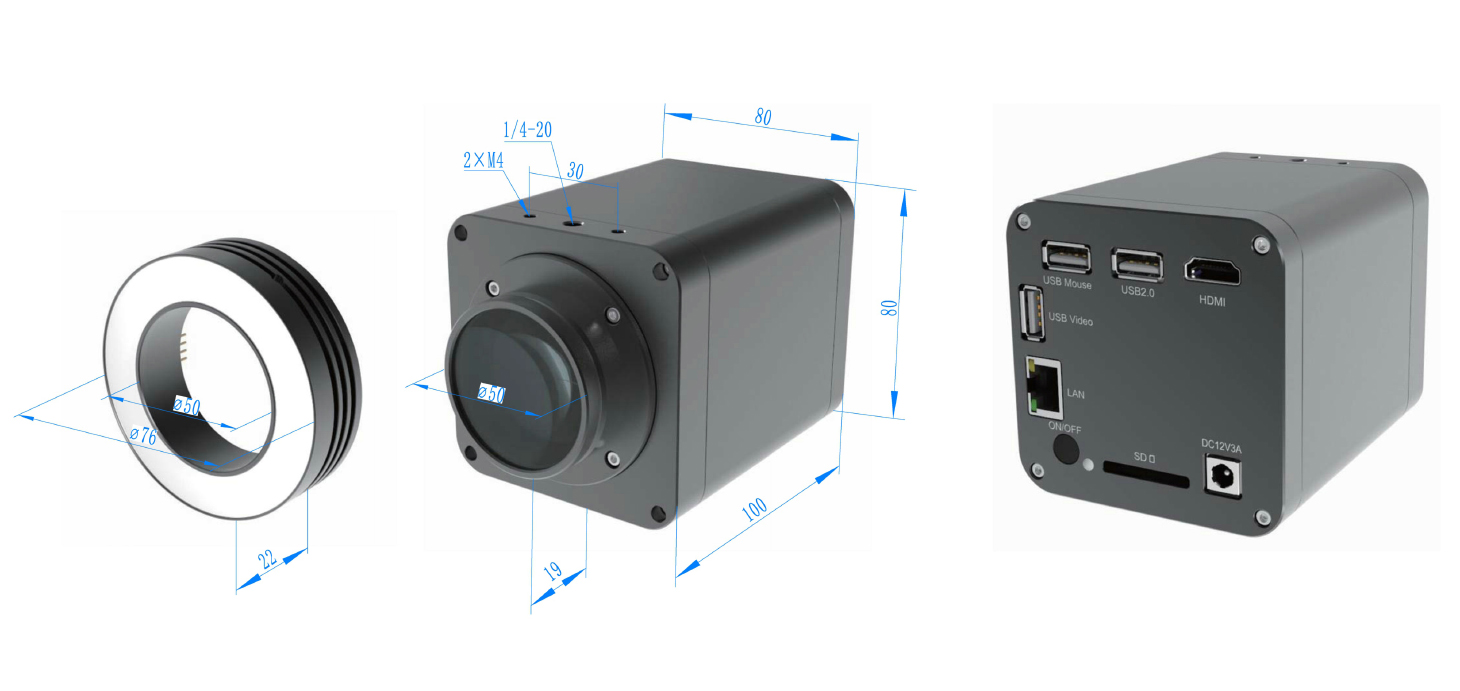

Figure 1-4 Dimension of XWJ-002

Packing Information of XWJ-002

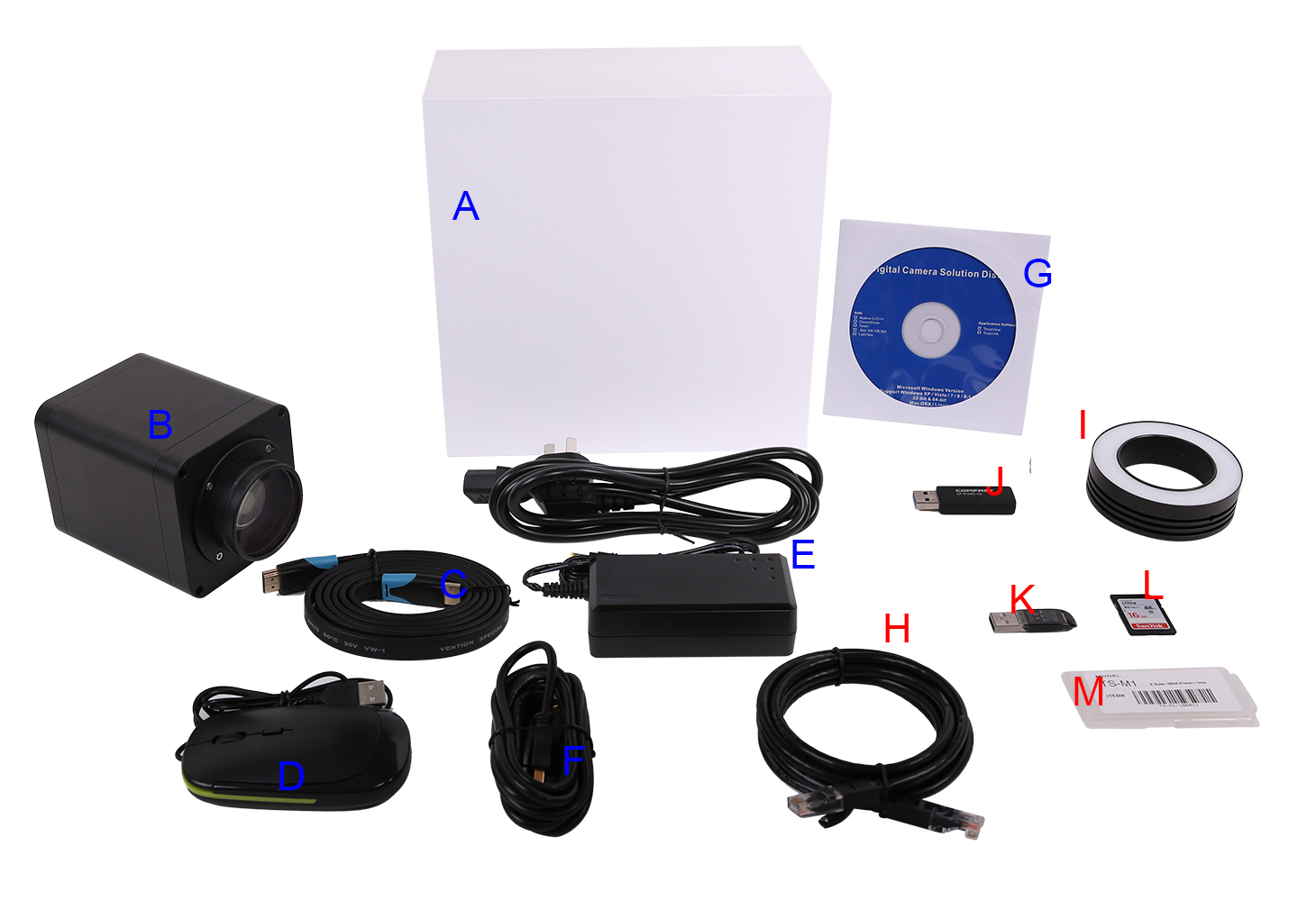

Figure 1-5 Packing Information of XWJ-002





▍Installation and Operation of XWJ-002 Series Product
Before use, please install the XWJ-002 series product on an adaptive bracket.
1.Plug HDMI cable into the HDMI port to connect XWJ-002 and HDMI monitor;
2.Plug a USB mouse into USB Mouse port, to get control of the XWJ-002 by using built-in software MSPView;
3.Plug DC12V3A power adapter into DC12V3A port, to supply power for the XWJ-002, the LED Indicator will turn into red;
4.Insert SD card into SD card Slot for saving captured images and recorded videos;
5.Press ON/OFF button to start the XWJ-002, LED Indicator will turn into blue;
6.Move mouse to the left side of the video window, the Camera Control Panel will appear. It includes Manual/Automatic Exposure, White Balance, Sharpness, Denoise, and other functions, please refer to section 3.2 for details;
7.Move mouse to the upper side of the video window, the Measurement Toolbar will appear. It includes calibration, measurement of lines, angles, rectangles, circles, etc, and supports data export(*.CSV format), please refer to section 3.3 for detail;
8.Move mouse to the bottom side of the video window, the Synthesis Camera Control Toolbar will appear. Operations like Zoom In, Zoom Out, Flip, Freeze, Crossline, LED brightness control, Autofocus, SD card contents browsing, Settings, and Camera Version can be executed. See section 3.4 for details;
9.Move mouse to the bottom side of the video window, the Synthesis Camera Control Toolbar will pop up automatically. Click AF button, and Auto Focus Control Panel will show up for autofocus operation, it supports 18X optical zoom, Autofocus, Manual Focus, Reset, and One Push operation. See section 3.5 for details.
