(MSS-M-BMC50) Biological Micoroscope
- Commodity name： (MSS-M-BMC50) Biological Micoroscope
- Description
-
Welcome to Shanghai Mengsheng Sheng International Trade
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~▍BMC50 Technical Specifications
Note: Configuration changes according to customer requirements！

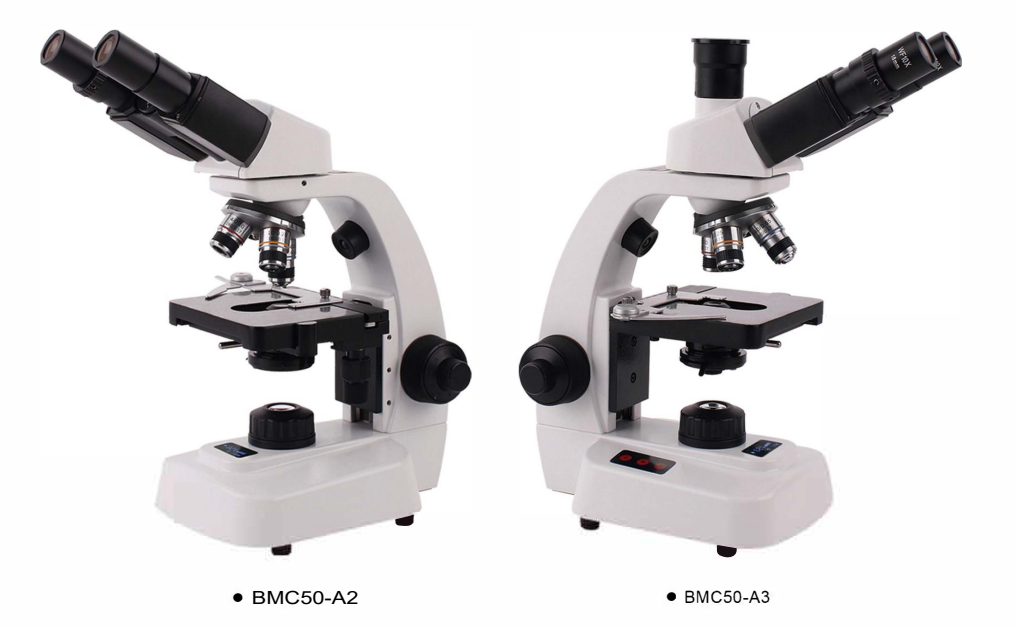

▍About BMC50 Biological Microscope
BMC50 biological microscope adopts ergonomic design with smooth lines, delicate appearance and structure. Easy to use for long time observation without fatigue. Built-in handle, easy to take and move.
BMC50 biological microscope can be used in colleges and universities and research institutes for the observation of micro organisms, cells, bacteria, tissue culture, suspensions, precipitates，etc., and the process of propagation and division of cells and bacteria in the culture medium can be observed continuously. It is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
▍BMC50 biological microscope product features
① 360° Rotatable and hinged head
② Coaxial Coarse and fine focusing knob, convenient to operate.
③ Built-in upper light source, high brightness LED cold light source
④ Adapter and battery 2 power supply optional
⑤ Adjustable light by press button
⑥ Display window for light brightness and battery capacity

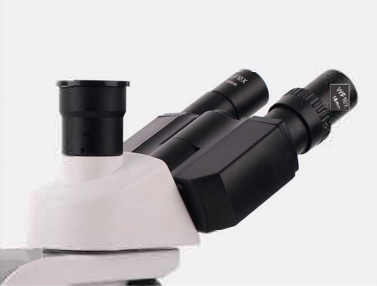

⑦ Wide voltage circuit design, can be adapted to 5-18V power▍Observation tube/eyepiece
Wide field binocular (triocular), observation angle 30 inclined, interpupillary distance 48-76mm.

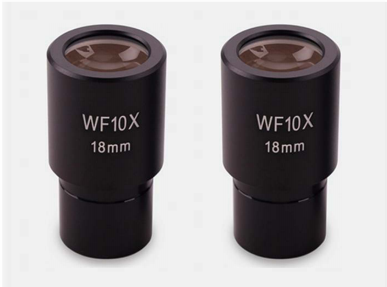

Standard wide field eyepiece WF10X/18mm, eyepiece interface: 23.2mm, parfocal distance 10mm can meet the needs of different usages
WF16X/WF20X/WF25X (Optional)

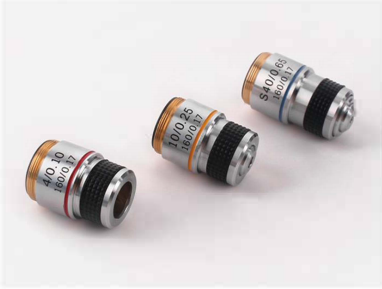

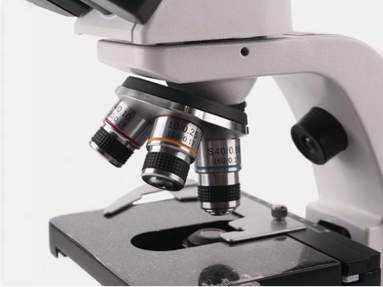

▍Objectives
Professional copper objective, durable, no deformation Objective;4X、10X、40X （S）Comfortable field of view, higher magnification, convenient operation
▍Illumination Source
Light source adjustment knob：
Reduce the light brightness
Switch the upper and lower light
Enhanced light brightness

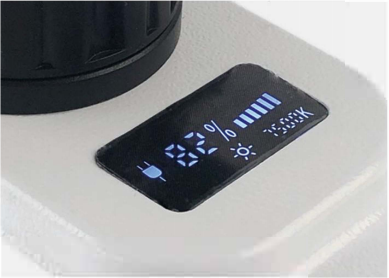

When operating the light button, the display window will show actual values simultaneously.
The color temperature of LED is 7500K

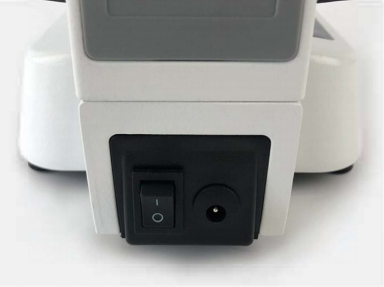

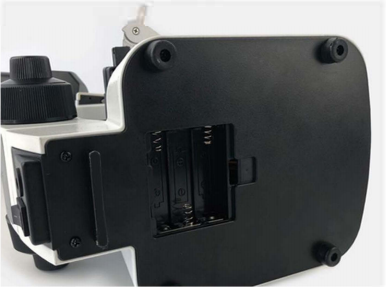

▍Replacement of battery
Being compatible with both AC power supply and replaceable battery, which makes the experiment continous in case of sudden power-off or bringing outdoor. It can be carried out anytime and anywhere.

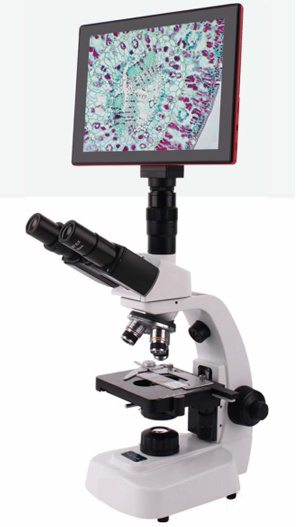

▍Connect the demonstration screen
• BMC50 with 7-inch screen
• （HDMI + USB double output）
• BMC50 with 9 inch screen
• （USB, TF card output）
• BMC50 with 9.7 inch touch panel
• （HDMI, WIFI wireless double output）
BMC50 connects 5 million pixels CCD
▍Features
① Digital imaging system, various pixels optional.
② CMOS chip with high sensitivity and accurate color reproduction
③ Professional microscopic image analysis software, supporting automatic image stitting and field depth fusion
④ Multi connecting ports, supporting USB2.0, USB3.0, HDMI, WIFI, SD card.
⑤ SDK supports native C/C++, Directshow, T▍Optional accessories

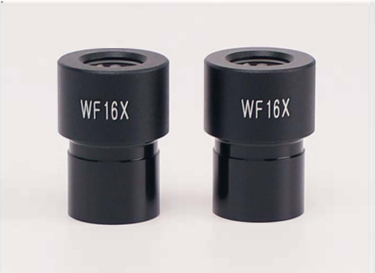

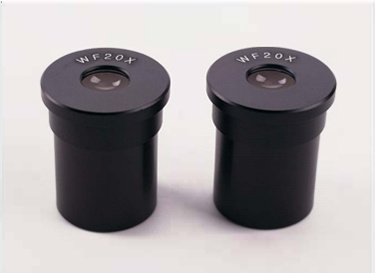

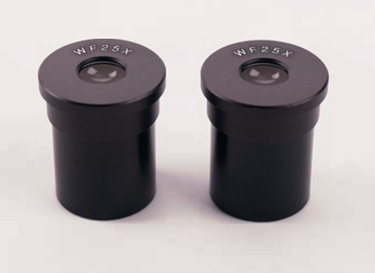

① Eyepiece
WF16X
WF20X
WF25X

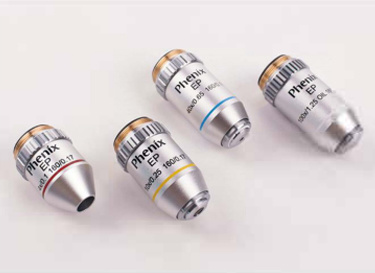

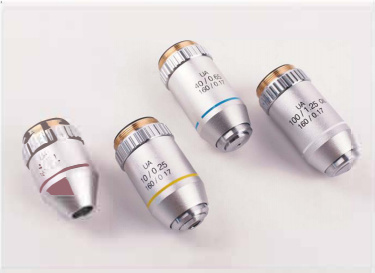

② Objective
UA195 achromatic objective
4X、10X、40X(S）、100X(S,O）
EP195 achromatic objective
4X、10X、40X(S）、100X(S,O）
PL195 achromatic objective
4X、10X、40X(S）、100X(S,O)③ Packaging

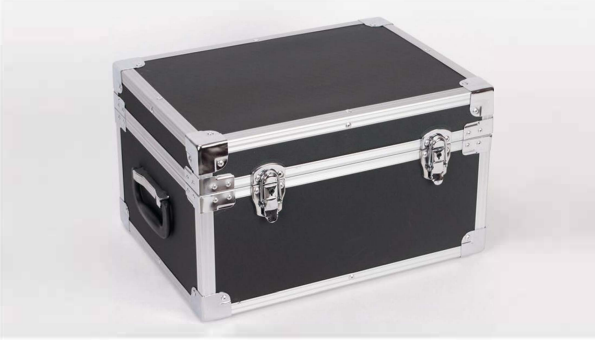

Packing (aluminum alloy case)
BMC50 is packed by hard Aluminum alloy box. Its strong density and safety ensure that the instrument will not be damaged during transportation. Aluminum alloy is also very light, which helps to save shipping cost.▍Imaging Display
Pollen germination
Plant root tips cut lengthwise
Stem of xylophyta dicotyledon T.S
