MSS-M-CK

  • Commodity name: MSS-M-CK

Category:

  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Product features

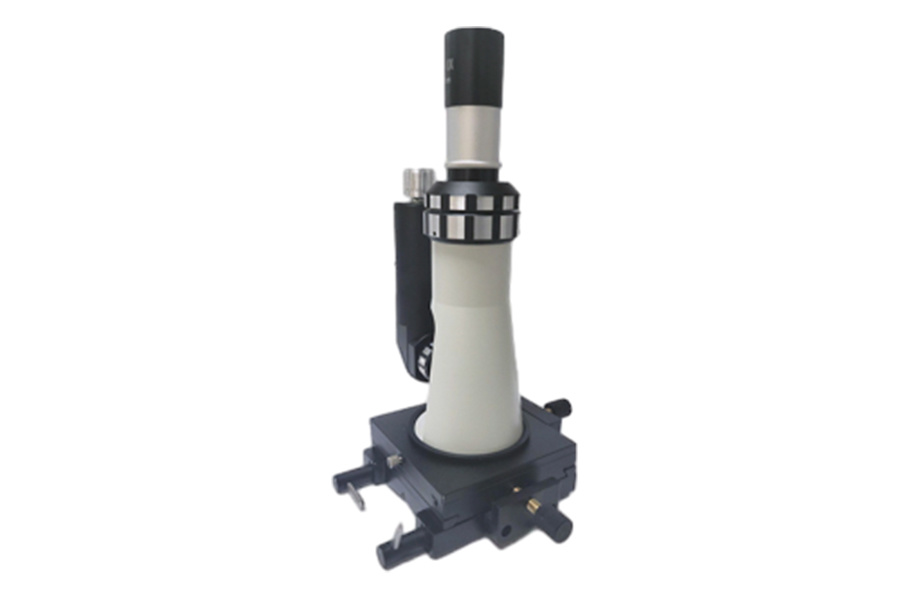

    Portable Metallurgical Microscope MSS-M-CK is a metallurgical microscope that can be carried to work sites, factories, etc.
    Many delivery records for inspecting objects for scratches, dents, discoloration, etc.
    Light source and battery integrated into portable microscope
    Comprehensive magnification: 100X , 400X
    Eyepiece: 10X
    Objective lens: 10X
    Can be used as a measuring microscope with an optional microscope camera


    ▍Specifications

    ontology

    monocular

    eyepiece

    10X / 18mm 23.3

    objective lens

    10X / 40X

    Overall magnification

    100X, 400X

    adapter

    C-mount adapter 1X (for C-mount camera connection)

    mechanical tube length

    160 mm

    focusing

    Stroke 36mm

    simple polarized light

    Polarizer and Analyzer

    light source

    Coaxial lighting, rechargeable LED, dimming possible

    size

    230 mm high x 110 mm wide x 60 mm thick

    weight

    1.75 kg

    packing case

    portable aluminum case

    Dependents

    Eyepiece lens (10X)
    Objective lens (10X, 40X)
    LED illumination (x2)
    Polarizer set (polarizer/analyzer) C-mount adapter
    AC adapter
    Carrying case

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
