(MSS-M-D8T) Digital Microscope

■ Integrated digital microscope with high resolution.
■ USB2.0 output,plug and unplug freely.
■ Support Windows 2000/XP/Vista/Win 7 systems,Equipped with powerful applied software.

Commodity name： (MSS-M-D8T) Digital Microscope

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

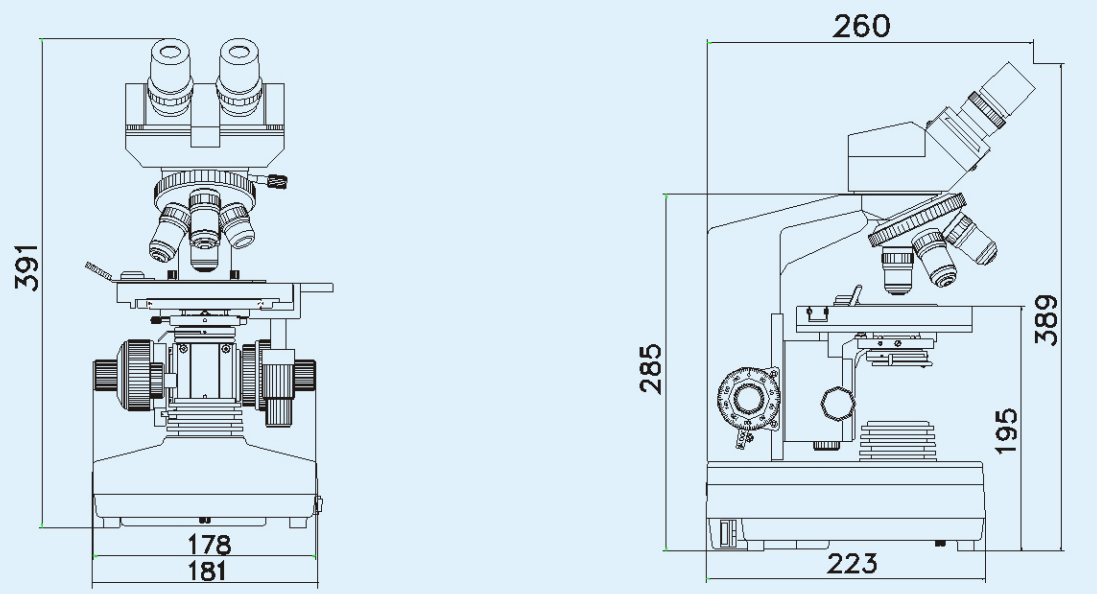

▍Dimension Drawing

Unit:mm

▍Outfit

Camera System	Valid Pixel	1280X1024(1.3M Pixel)	●
	Valid Pixel	2048X1536(3.0M Pixel)	O
	Output Mode	USB2.0	●
	Operation System	WINDOWS 2000/XPVISTA/Win7,32 bit or 64 bit	●
	Software	Scopelmage 9.0	●
	Range of Viewing Field	>75%	●
Viewing Head	Sliding Binocular Head,Inclined at 45°,Interpupilary Distance 55-75mm		●
Eyepiece	WF10X/18 P16X/11		O

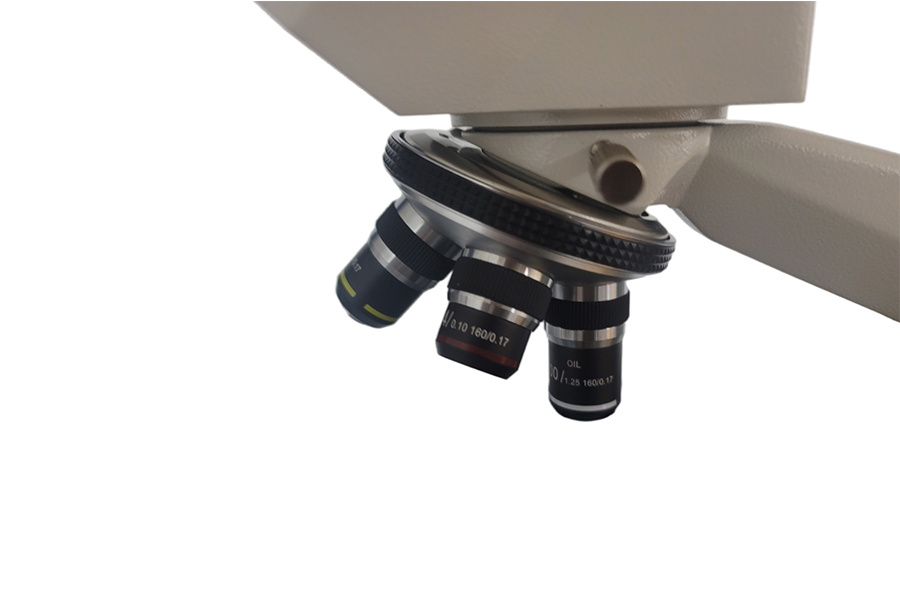

Nosepiece	Toward Quadruple Nosepiece		●
Objective	Achromatic Objective 4X、10X、40X、100X		●
Stage	Double Layers Mechanical Stage 140X140mm/75X50mm		●
Condenser	Abbe NA1.20 with Iris Diaphragm &Filter		●

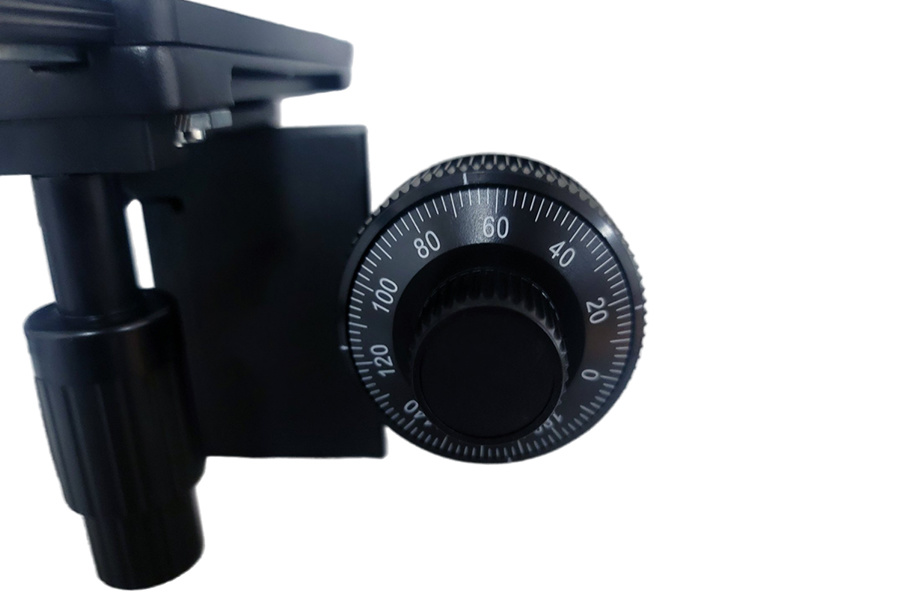

Focusing	Coaxial Coarse &Fine Adjustment System,Range 28mm,Fine Division 0.002mm		●
Illumination	Halogen Lamp 6V/20W,Brightness Adjustable		●
Optional Accessories	Phase Contrast Kit		O
	Dark Field Attachment		O
	Polarization Attachment		O

Note: ●Standard Outfit,O Optional

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
