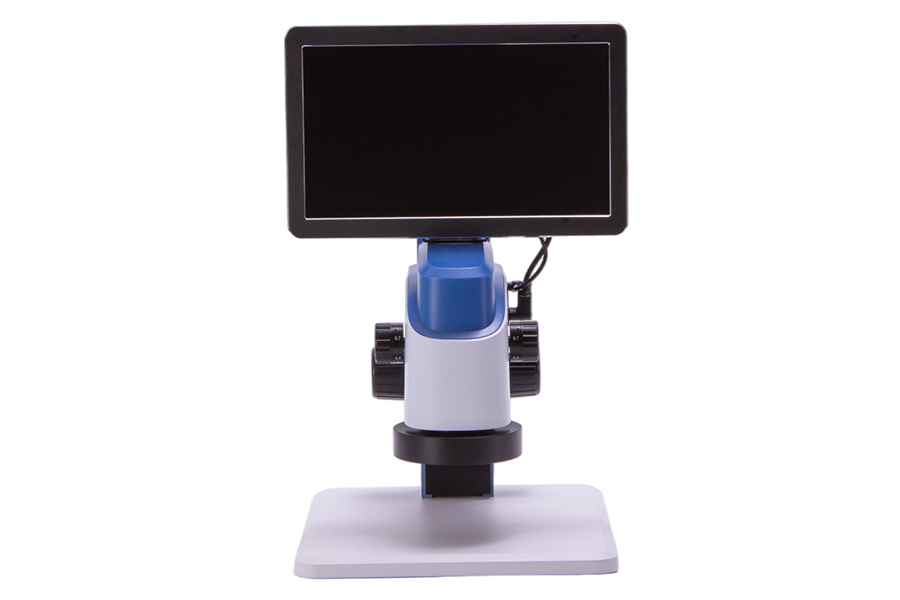

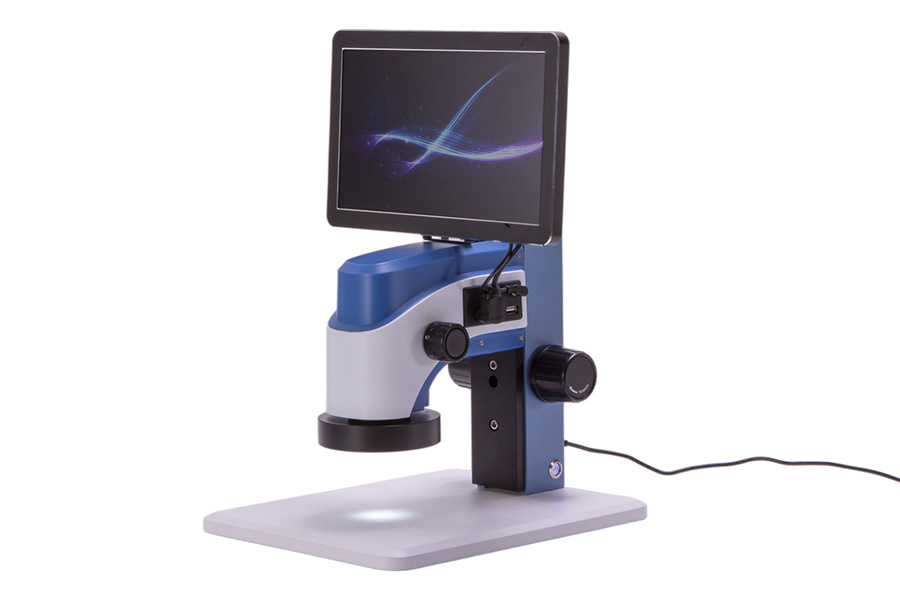

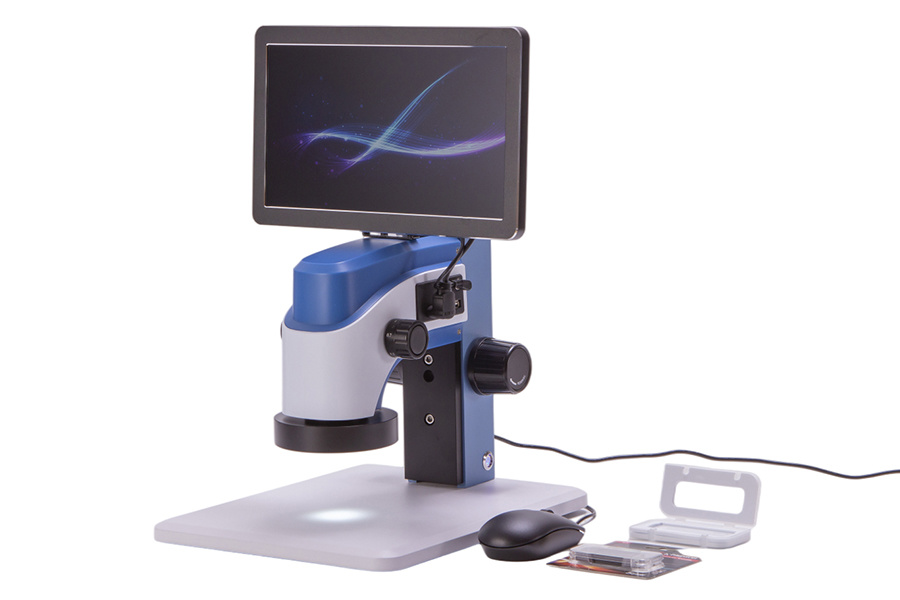

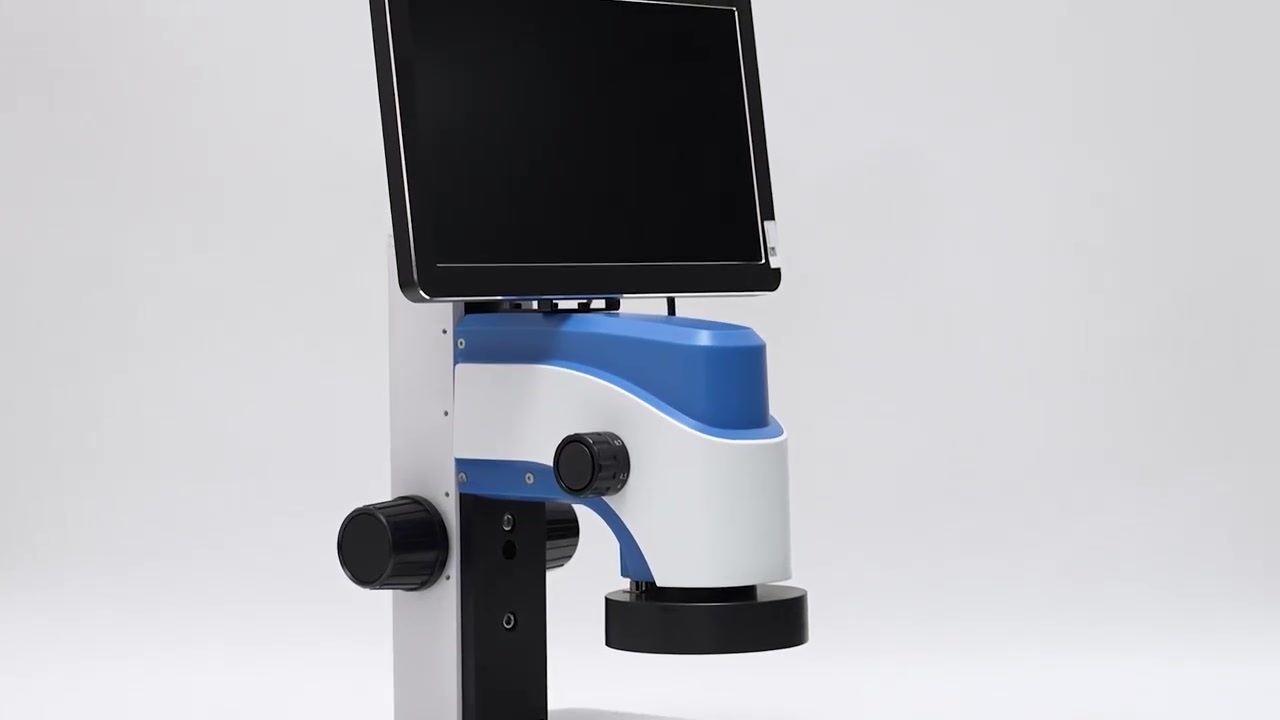

(MSS-M-IU9179) Video Microscope Product Introduction

  • Commodity name: (MSS-M-IU9179) Video Microscope Product Introduction

Category:

  • Description
  • Welcome to Shanghai Mengsheng Sheng International Trade
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

    ▍Specifications

    Sensor size

    1/2”

    Resolution ratio

    1920*1080

    Frame rate

    60fps

    USB interface

    2 USB ports for connecting USB drives and wireless mice

    Operating mode

    Mouse operation

    Working distance

    60mm

    Working voltage

    DC 12V

    Optical power

    0.7-4.5X

    Magnification rate

    12-80X

    Field of view

    1-22mm

    Display screen

    11.6-inch LED high-definition display screen

    Operation temperature

    -10-70 degrees

    Size

    320*260*380mm

    Weight

    4kg



    ▍Product features

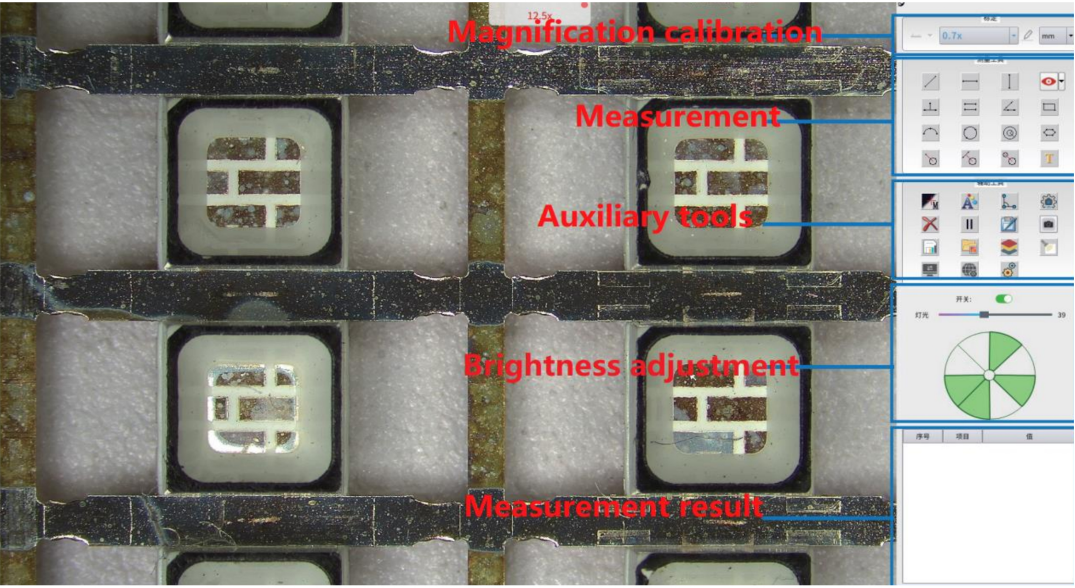

    • Automatic  magnification  adjustment,calibration free
    • Network video transmission
    • enabling dual window remote working mode
    • Network image storage,scanning and capturing. Product production process traceability.
    • Depth offield synthesis function
    • No need for focusing
    • One click view of the entire product.
    • Eight zone light source,any angle,any intensity brightness adjustment
    • Full range exposure of images, easy to see defects,dust,and metal surfaces.

    ▍Product Strengths

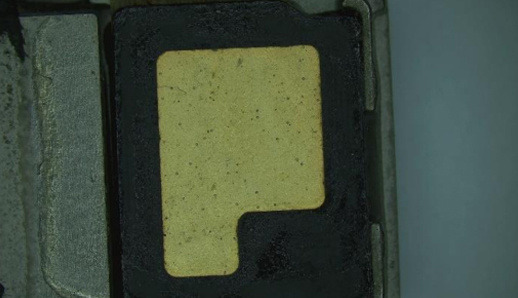

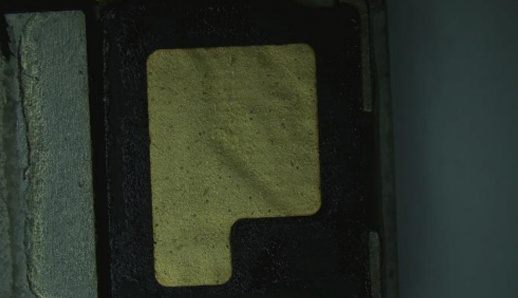

    Ordinary observation

    Omnidirectional observation

    Ordinary observation

    Omnidirectional observation


    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
