GREEN     SERIES     OUTFlT

Item

Specification

OP721

OP731

Optical System

Infinity Optical System

1

1

Eyepiece

EW10x/22mm

1

1

Viewing Head

Infinity Seidentopf Binocular Viewing Head,Inclined at 45°,
              Interpupillary 47-78mm

1

1

Infinity,Seidentopf Trinocular Viewing Head,Inclined at 30°,
    Interpupillary 47-78mm,Splitting ratio 50/50
           (100/0 or 0/100 is optional)

O

O

Wireless Digital Head with Built-in 5MP Camera

O

O

Inclinable Binocular Viewing Head

-

O

Objective

Infinity Plan Objective NIS45

1

-

Infinity Plan Objective NIS60

-

1

Infinity Phase Contrast Objective NIS45

O

-

Infinity Phase Contrast Objective NIS60

-

O

Nosepiece

Backward Quintuple Nosepiece(Non-coding)

1

-

Backward Quintuple Nosepiece(Coding)

-

1

Rackless Stage

Rackless Stage 230mmx150mm,Moving Range 78mm×54mm

1

1

Condenser

Inserted Abbe Condenser NA1.25(Including Empty Plate)

1

1

Bright Field-Phase Contrast Plate (4x-100x Universal)

O

O

Bright Field-Dark Field Plate

O

O

Focusing System

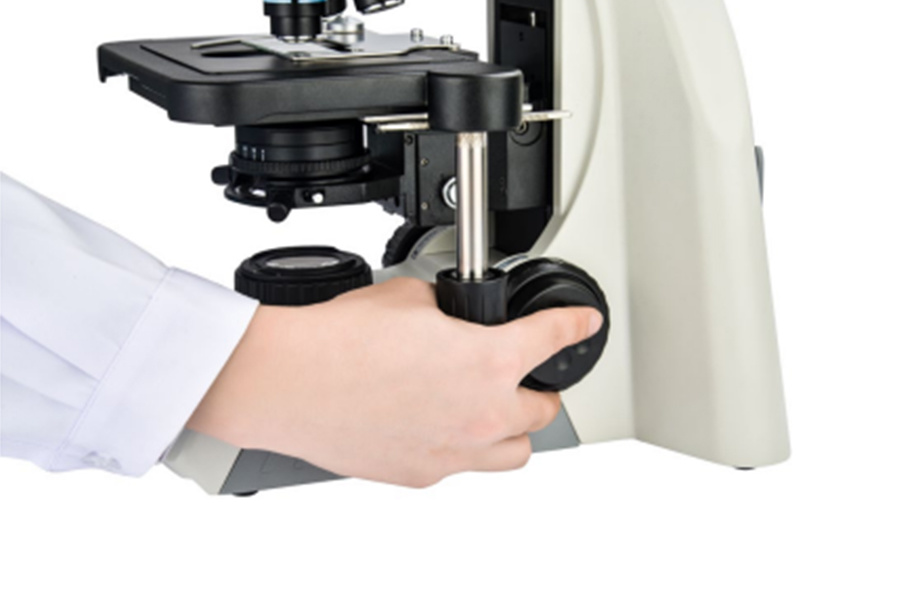

Coaxial Coarse and Fine Adjustment,Coarse Stroke 37.7mm
per Rotation,Fine Stroke 0.2mm per Rotation,Fine division
0.002mm,Moving Range 30mm

1

1

llumination

1W S-LED

1

-

3W S-LED (LCD Display Magnification,Timing Sleep,Brightness
Indication and Lock,etc.)

-

1

Fluorescence
attachment

3W LED,Two Wave Range (B,G,U,V can be combined),Fly-eye
Lens llumination

O

O

Accessories

1x Photo Attachment

O

O

0.54x Photo Attachment

O

O

Simple Polarization Set

O

O

Camera

O

O

App Software

O

O

Filter

Green

1

1

Note: 1 Standard Outfit,O Optionat
