(MSS-M-OF811) Experimental Biological Microscope

OF811 series microscope is designed for professional laboratory microscopic observation. Realistic imaging, intuitive operation, and comfortable use.

Commodity name： (MSS-M-OF811) Experimental Biological Microscope

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Description
Professional Optical System: Equipped with an upgraded NIS infinity optical system, high numerical aperture flat achromatic objective lens, and multi-layer coating technology optical components, ensuring excellent image quality.
Comfortable and convenient operation: The LCD screen in front of the microscope displays the working status in real time, with a universal spotlight and a limiter that can set the upper limit of the stage height, making it easy for beginners to use smoothly. The ergonomic design reduces physical fatigue and helps with long-term focused observation.
Professional applicability: Designed specifically for microscopic observation in professional laboratories, it is an ideal choice for scientific researchers and medical laboratory personnel for microscopic observation.

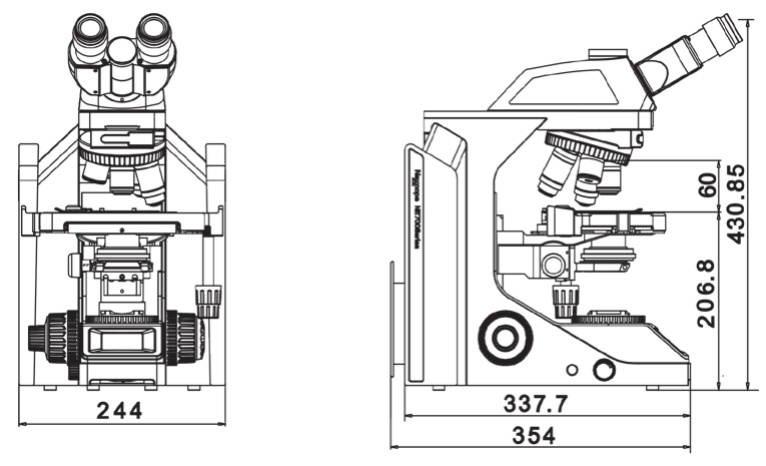

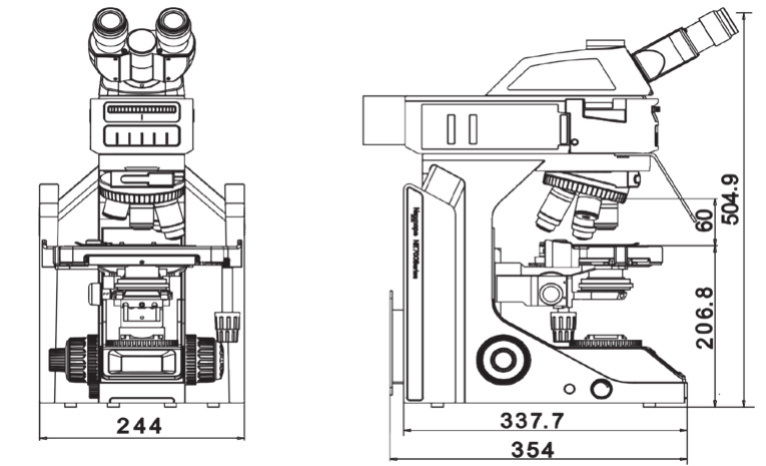

▍Dimension Figure

(Unit：mm)

▍Specifications

OF811 Biological Microscope Specifications
Optical system		Infinity optical system
Eyepiece(F.O.V.,mm)		10X/22mm,with diopter adjustment -5~+5,Dia. φ30
Viewing tubes		Inclination angle 30°,Seidentopf binocular head with 360 degree rotation,pupilary distance:47-78mm
		Inclination angle 30°,Seidentopf trinocular head,pupilary distance:47-78mm,Eyepiece/Port R:T=50:50
		Inclination angle 30°,Seidentopf trinocular head,pupilary distance:47-78mm,Eyepiece/Port R:T=100:0/100:0
		Inclination angle 30°,digital viewing head,pupilary distance:47-78mm
		Inclination angle 30°,wireless WIFI digital viewing head,pupilary distance:47-78mm
Objective		Infinite plan achromatic objective(4X,10X,20X,40X,100X)
		Infinite plan phase contrast objective(10X,20X,40X,100X)
		Infinite plan S-Apo fluorescence objective(4X,10X,20X,40X,100X)

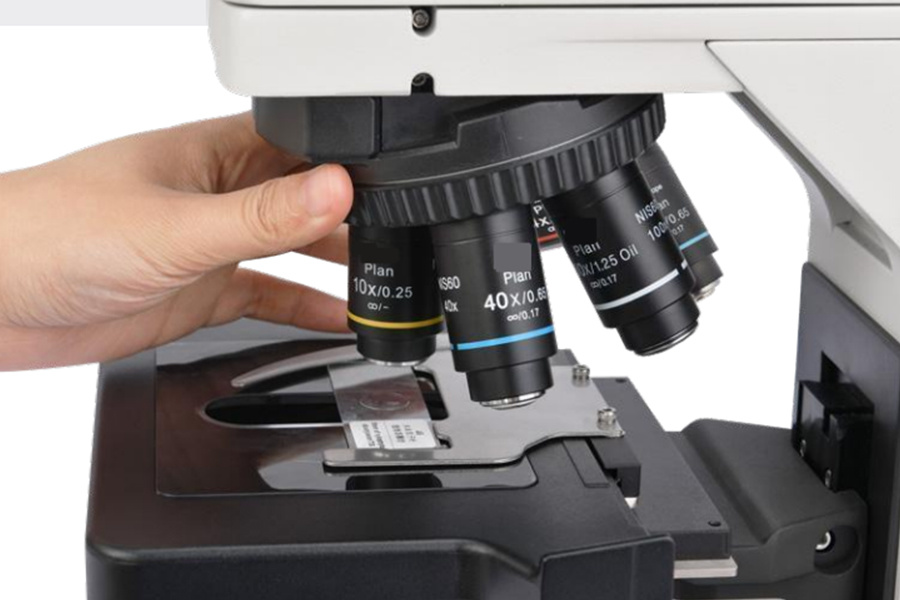

Nosepiece		Quintuple coding nosepiece

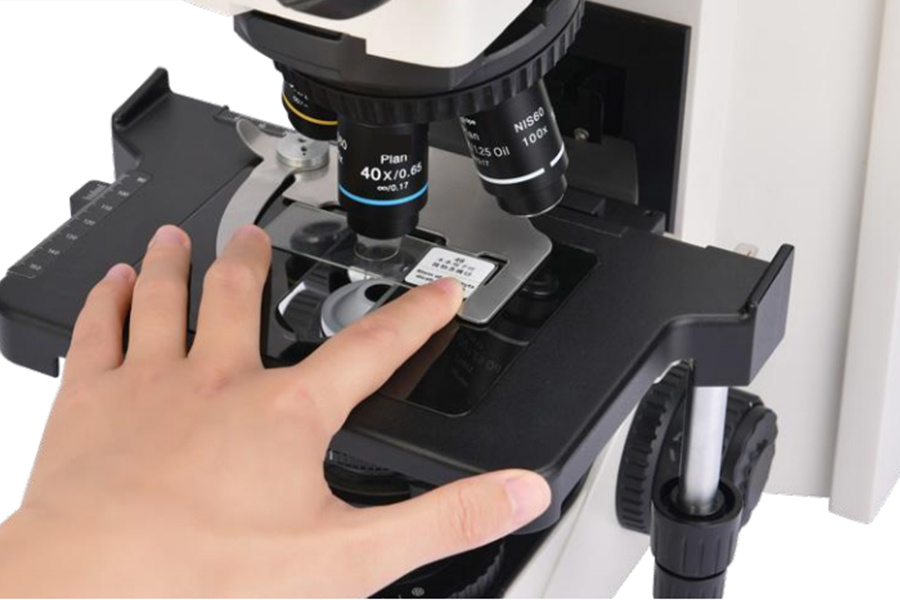

Stage		Rackless stage 235X150mm,moving range 78mmX54mm,hard oxidized stage,can be replaced bytempered glass stage or sapphire stage

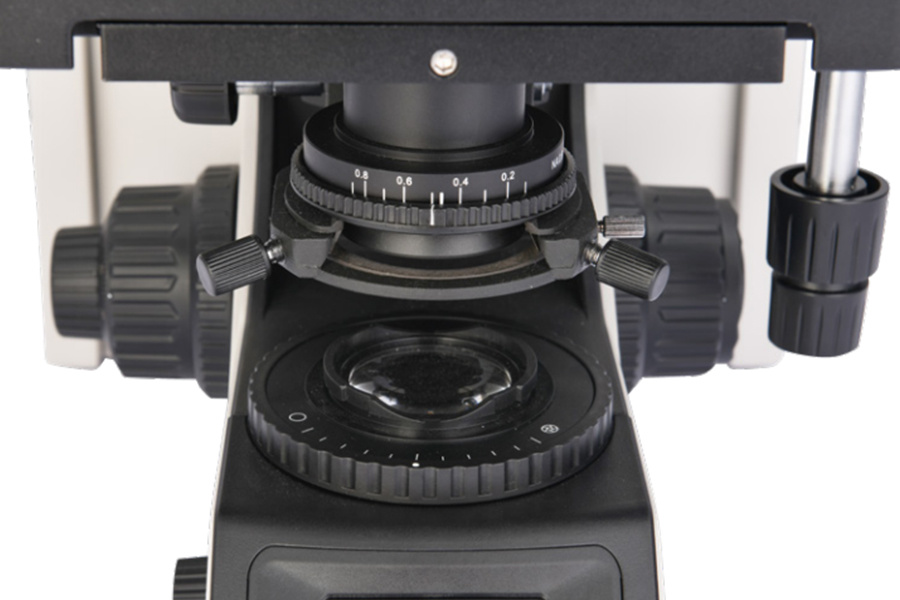

Condenser		Abbe condenser(NA0.9),with Iris diaphragm
		Swing-out achromatic condensor(NA0.9/0.25),with Iris diaphragm
		NA1.25 sliding-in turret phase contrast kit
		NA1.3-1.26 oil dark filed condenser
		NA0.7-0.9 dry dark filed condenser

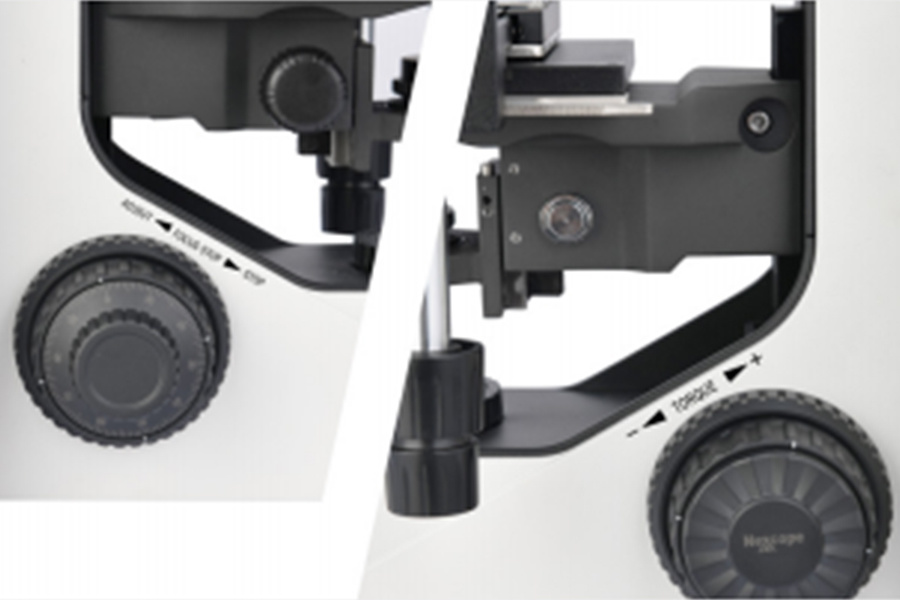

Focusing system		Coaxial coarse and fine adjustment,coarse stroke 28mm,fine precision 0.001mm
Illumination	Transmission	3W color and temperature adjustable,LED(LCD display magnification,time sleeping,brightness indication and lock,etc.
	Fluorescence	LED illumination,3 wave 4-position fluorescent turrent,with Iris diaphragm
Camera attachment		1X photo attachment,0.5X photo attachment,adjustable focsing
Phase contrast		Simple polarization set

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
