(MSS-M-OJC011) Series Inverted Biological Microscope

Commodity name： (MSS-M-OJC011) Series Inverted Biological Microscope

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Description
OJC021 is manual,simple,comfortable and highly integrated.It adopts advanced NIS infinity optical system,which can meet the observation modes of brightfield,phase contrast,DIC,fluorescence and Hoffman phase contrast.Various integration options allow your microscope to meet the present and future needs.Equipped with multiple image ports for optical output,it is convenient to connect the camera and detector.Multi-port imaging is supported,and multiple cameras can simultaneously shoot images at different wavelengths.OJC031 is equipped with an oversized microscope status display screen,which is more suitable for microscope operation in darkroom and makes complicated microscope operation more intuitive and visible.

N-iPLFN PH plan semi-apochromatic objective
Semi-apochromatic objective lenses have built-in correction rings,which can correct the poor coverage caused by nonstandard cover glass thickness.

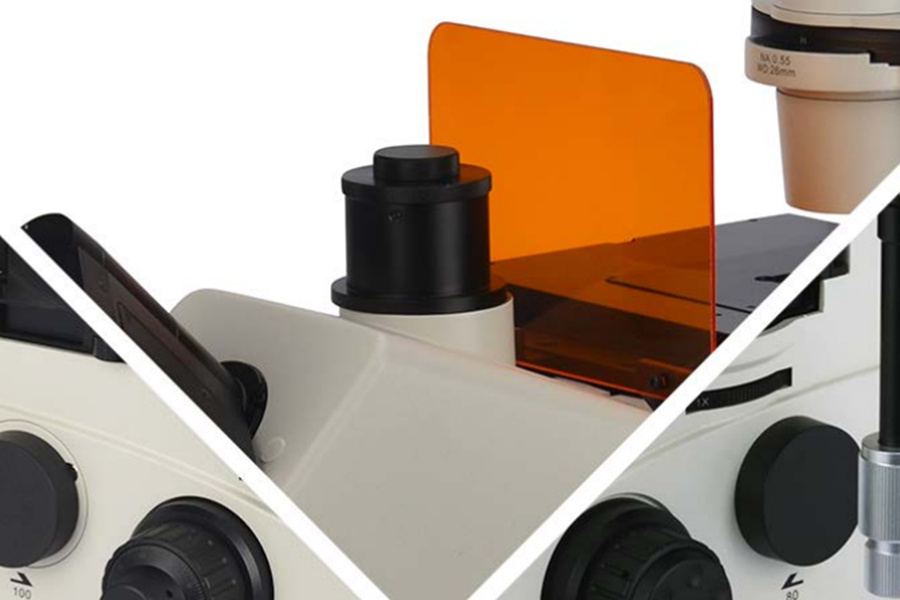

Ergonomic Transmitted illumination
Ergonomic transmission lighting column ensures that users have a larger working space and is convenient for changing samples.

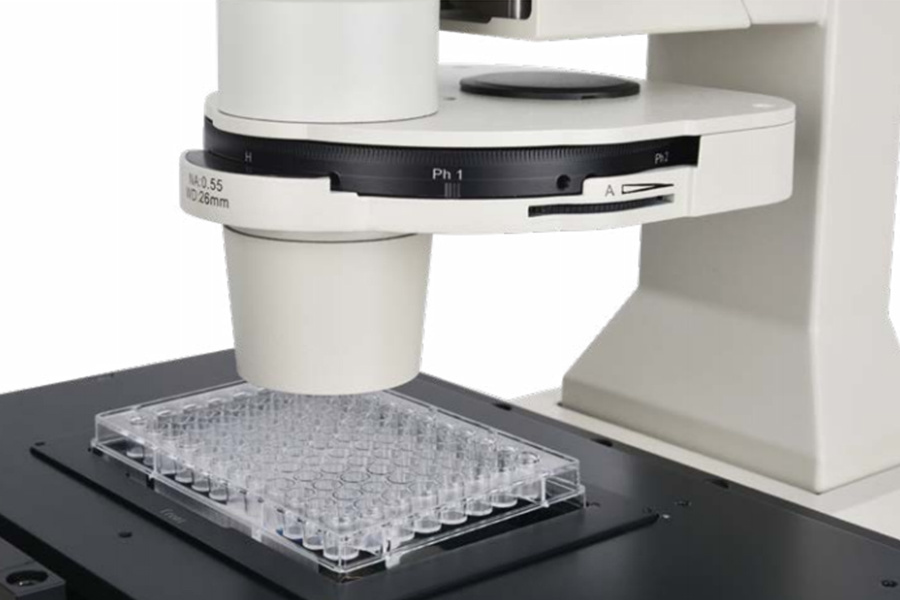

The system condenser
Brightfield observation,phase contrast observation and DIC observation provide the maximum choice for your experimen.

Multi-end optical path exit
The left side of the microscope is provided with an optical output selection dial,which is convenient for distributing optical images to different ports and provides expanded space for more optical image applications.

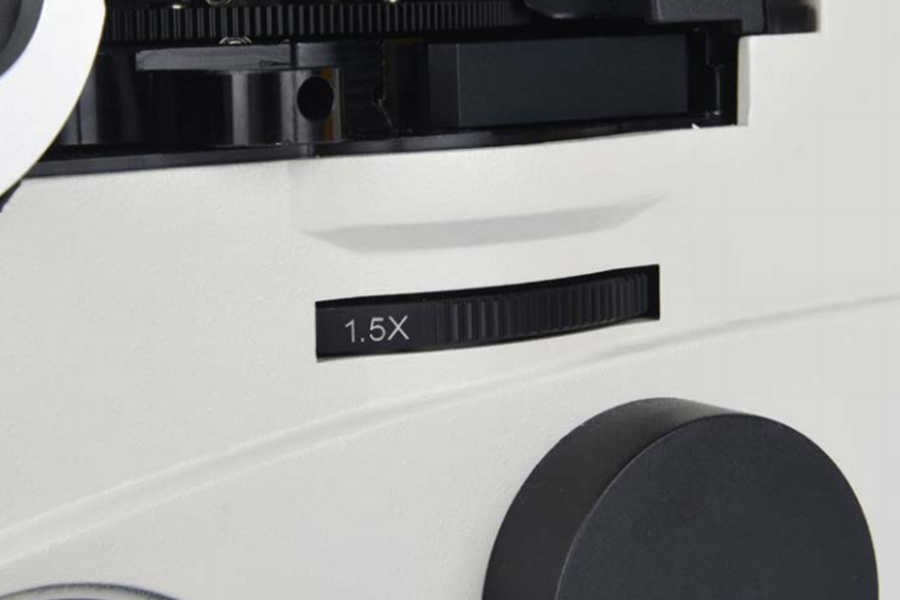

Switching intermediate magnification
Through smooth turntable operation,the intermediate magnification can be quickly switched between 1 and 1.5 times.

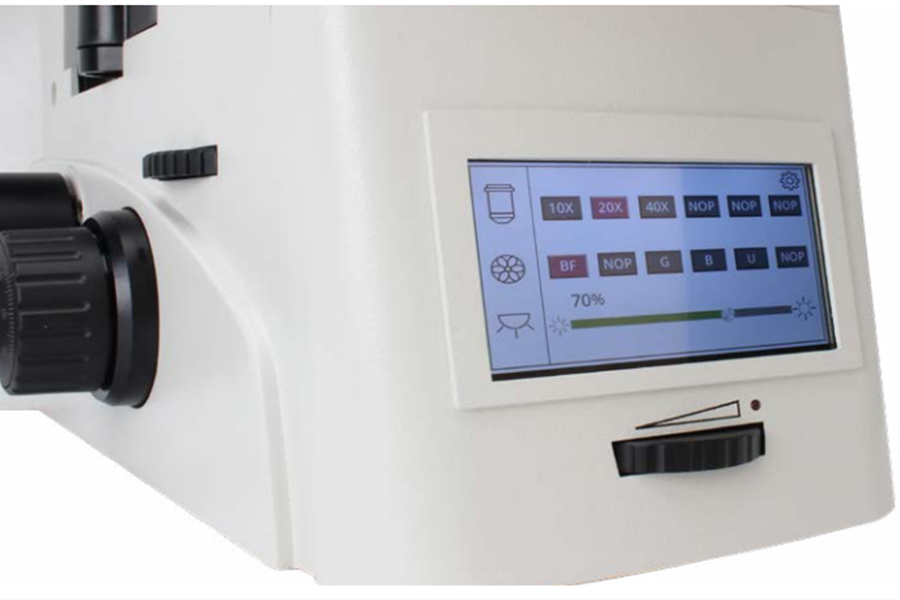

Microscope use status display screen
In order to facilitate the use of microscope in darkroom,OJC031 adds a 4.3-inchtouch screen on the front panel to show the use status of microscope.

▍System Layout

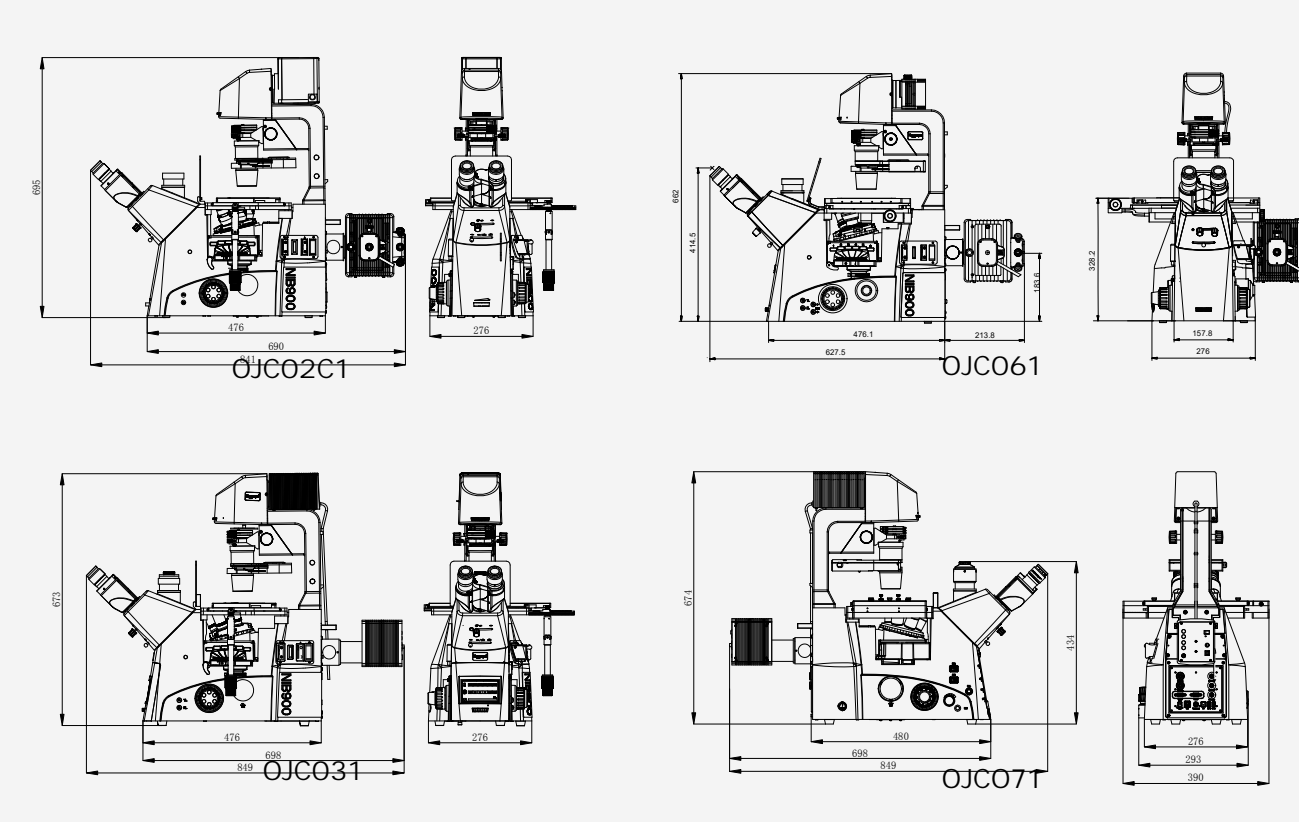

▍Dimension Figure

(Unit：mm)

▍Specifications

OJC011 Series Inverted Microscope Specifications
	OJC02C1	OJC031	OJC061	OJCO71
Optical System	NIS Infinite Optical System
Eyepiece	·SW10X122 ·SW10X125 ·EW12.5X/17.5 ·WF15X/16 ·WF20X/12
Viewing Head	Seidentopf Trinocular Head(build-in bertrand lens),inclined at 45°,Interpupilary Distance 47-78mm
Objective	·N-iPLFN PH Plan S-APO Phase Contrast Objective 4X,10X,20 X,40X,60X ·N-iPLFN Plan S-APO Objective 4X,10X,20X,40X,60X ·N-PLAPO Plan APO Objective10X,20X,40X,60X,100X
Nosepiece	Sextuple Nosepiece with DIC Prism Slot	Encoded Sextuple Nosepiece with DIC Prism Slot	Electric Sextuple Nosepiece with DIC Prism Slot	Electric Sextuple Nosepiece with DIC Prism Slot
Condenser	Long Working Distance Turret Condenser,NA0.55,WD=26mm, with 6 Modules for Phase Contrast,DIC and Brightfield		Long work distance electric Turret condenser,NA 0.55, WD=26mm,with 6 Modules for Phase Contrast,DIC and Brightfield	Long work distance electric Turret condenser,NA 0.55, WD=26mm,with 7 Modules for Phase Contrast,DIC and Brightfield
Transmission lighting	Kohler illumination 12V100W halogen lamp	·Kohler illuminatior 5WLED	Kohler llumination,10W LED	Kohler illumination 5W LED
Epi-illumination	· 100W mercury lamp ·LED fluorescent lighting			LED fluorescent lighting
Focusing System	Coaxial Coarse and Fine Adjustment		Electric coaxial coarse inching lifting mechanism
Stage	3 Layers Mechanical Stage,Moving Range 130x85mm, Flexible Knob,available for Different Size Small Stage		The moving range is 130×100mm,the maximum speed is 50mm/s,and the resolution is 0.1um.Small worktables with different sizes can be installed on the top stage as required.	The moving range is 115×75mm,the maximum speed is 71mm/s,and the resolution is 0.1um.Small worktables with different sizes can be installed on the top stage as required.
Auxillary Stage	Terasaki plate,φ38mm,φ54mm plate,General support plate,96-hole plate tray
Intermediate magnification	Multiplier 1X,1.5x		Multiplier 1X,1.5x,CF file	Multiplier 1X,1.5x
Display		Microscope use status display screen		Touch screen,touch and display microscope status
Observation Method	Bright field,Phase contrast,DIC,Fluorescence,Hoffman phase contrast
Filter Turntable	Epi-fluorescent filter turntable	Encoded Epifluorescent turntable	Electric Epi-fluorescent filter turntable
Fluorescent Illuminator	With high-performance filter Can be equipped with up to six Epifluorescent filters, Use one position during bright field observation center align reflected light field of view stop of aperture stop

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
