(MSS-M-OJC711) Series Inverted Biological Microscope

Commodity name： (MSS-M-OJC711) Series Inverted Biological Microscope

Category:

Email:

Description

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

▍Description
1.Make Reasonable improvement on basis of scientific researchmicroscope.More suitable for laboratory observation of cells.
2.Adopt long life LED light source and infinity optical system,easyto obtain high-definitionand high contrast wide viewing images.
3.The body is compact and stable,and the operationbuttons are well arranged,the cells can be observed,sampled and processed in the super clean bench freely.
4.Using 3 different color filter,it widely enlarges selectivity for dye.LED illumination with large intensity and even brightnessprovides support for high quality fluorescence observation.
5.With standard camera port,Nexcope camera and imageprocessing software,providing low noise,high sensitivity and resolution imageity and resolution image

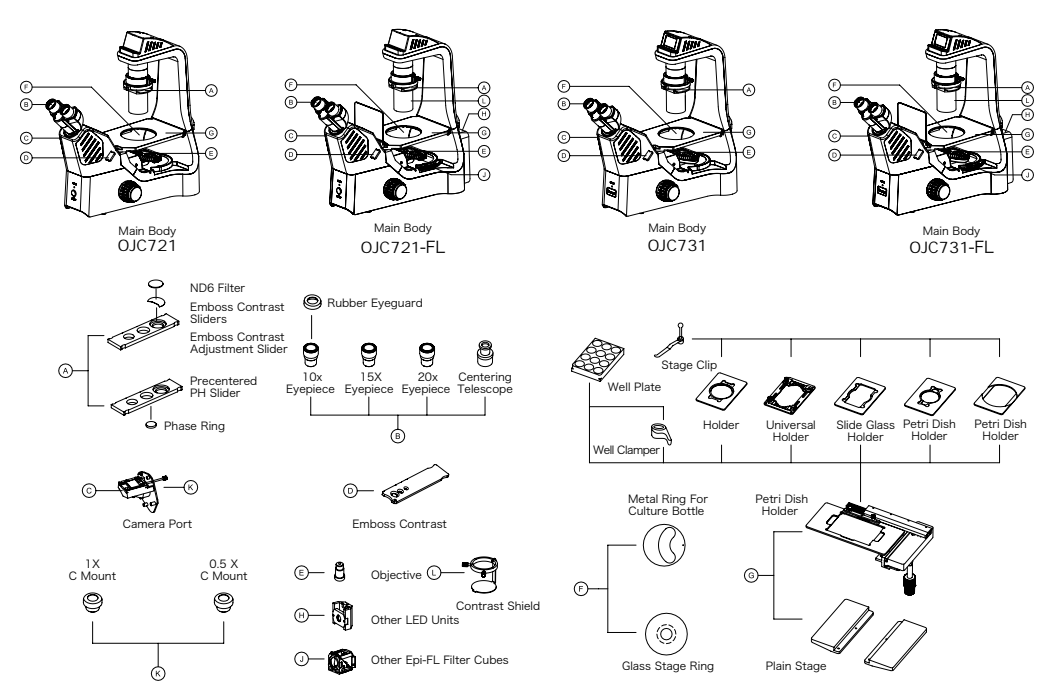

▍System Layout

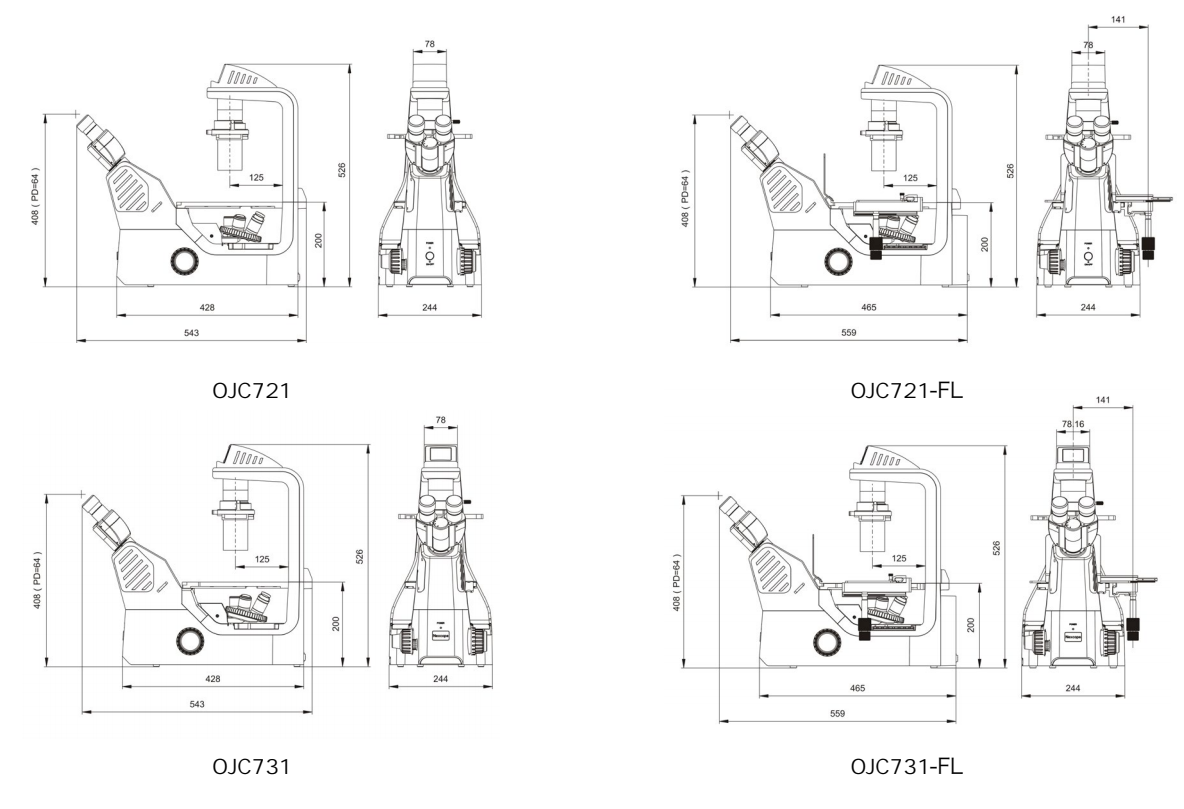

▍Dimension Figure

▍Specifications

OJC711 Microscope Specification
			OJC721	OJC721--FI	OJC731	OJC731-FI
Optical System			NIS Inpnite Optical System (F200)
Observation method			Brightpeld,Phase Contrast, Hoffman phase Contrast Emboss Contrast	Brightpeld,Phase Contrast, Hoffman,phase Contrast, Emboss Contrast,Epi Fluorescence	Brightpeld,Phase Contrast,Hoffman phase Contrast Emboss Contrast	Brightpeld,Phase Contrast,Hoff- man,phase Contrast,Emboss Contrast,Epi-Fluorescence
Illumination	Tramsmitted llumination		3W S-LED		3W S-LED Kohler llumination
	Episcopic illumination			LED illuminator,built-in Fly-eye lens,Can be conppgured with up to 3 different Buorescence LED units;available wave- lengths:365,405,485,525nm		LED illuminator,built-in Fly-eye lens,Can be conppgured with up to 3 different ßuorescence LED units;available wavelengths:365,405,485,525nm
Viewing Head			Seidentopf Viewing Head,Inclined at 45°,Interpupillary 48-75mm; Additional camera port eyepiece /port 100/0:0/100
Eyepiece(F.O.V)			SW10×(22),WF15×(16),WF20×(12)
Focusing			Coaxial coarse and pne adjustment,the function of coarse tightness adjustment, Fine Division 1um,Fine stroke 0.2mm per rotation,Coarse stroke 37.5mm per rotation.Up 7mm,down1.5mm.
Nosepiece		Quintuple Nose-piece
		Coded Quintuple Nosepiece
LCD Screen					Function display magnipcation,timing sleep,brightness indication and lock,etc.
Condenser			Condenser NA 0.3,WD 75mm,without Condenser WD 187mm
Stage			Stage:170(X)×250(Y)mm Attachable Mechanical Stage:128(X)×80(Y), Accepts 5 types of micro-testplate,well clamper and stage clip.
Phase System			Condener with 4x Phase Annulus Plate 10x,20,40x Universal Phase Annulus Plate
Hoffman Phase			10×,20×,40×Hoffman Condenser,Special objective
Relief 3D Contrast			Condenser and Eyepiece with Emboss Contrast 10×,20×,40×,Universal Emboss contrast slide
Epi-Fluorescence Attachment				Filter cubes with noise termi- nator mechanism Conpgure with up to 3 Epi-Buorescence pplter cubes, Attachable Contrast Shield		Filter cubes with noise terminator mechanism Conpgure with up to 3 Epi- Buorescence pplter cubes, Attachable Contrast Shield.
Dimensions			244 (W)×543 (D)×526(H)mm	244(W)×559(D)×526(H) mm	244(W)×543(D)× 526(H)mm	244(W)×559(D)×526(H) mm
Video Adapter			1×,0.5×,C Mount
Accessories			ECO(No operator,turn off the light source automatically in 15 minutes);Heating Stage

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
