OJC2111 series inverted microscope specification

ltem

Specification

Optical system

NIS60 infinite optical system

Eyepiece

10×(22),with diopter adjustment -5~+5 · 10×(25),with diopter adjustment -5~+5

viewing tube

Seidentopf binocular observation tube,10-40 degree tilt,pupil distance 47-78mm,eyepiece interface φ30

viewing tube base

eyepiece/camera(100/0,0/100),status inspection;eyepiece/camera(100/0,0/100),external phase contras;

Relay lens

0.5X,0.7X,1X

Objective

S-APO phase contrast objective,APO objective

Nosepiece

Code six-hole nosepiece(expansion slot),M25*0.75
         Motorized six-hole nosepiece(expansion slot),M25*0.75
  Motorized six-hole nosepiece(expansion slot),M25*0.75;AFS module included

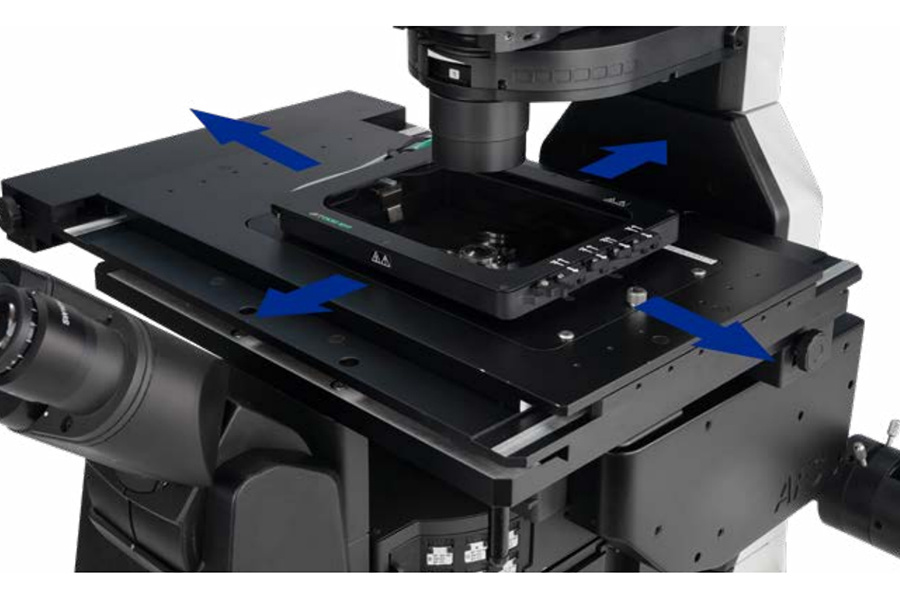

Motorized stage

Electric control (grating type):travel range 130 mmx100 mm (table 445 mm x 300 mm)Maximum speed:25mm/s;Min.:0.1μm-
Repetition accuracy:0.5μm,can be equipped with muilti-wellplate,35mm petri dish and slice three special sample clamp adapter;Well
Clamper is optional;

Manual stage

Three-layer mechanical moving stage,stage size:340X230mm,moving range 130×85mm,

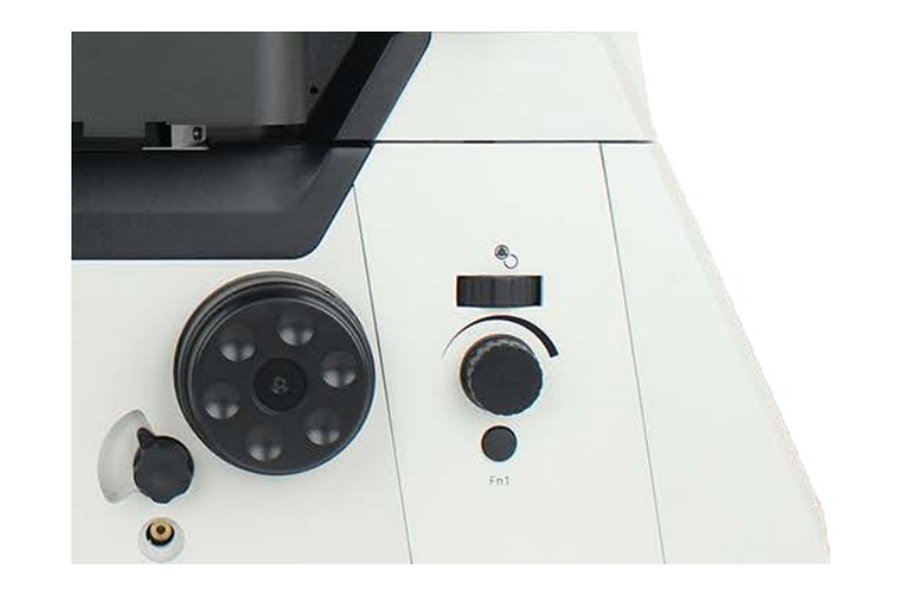

Focusing system

Electric control drive,coarse fine tuning 3-gear switch((2um80um800um),stroke:8.5mm above the focus and 1.5mm below;Minimum step 0.01um;

Electric control drive,coarse fine tuning 3-gear switch((2um80um800um),stroke:8.5mm above the focus and 1.5mm below;Minimum
step 0.01um,repeat accuracy 0.1um(grating type)

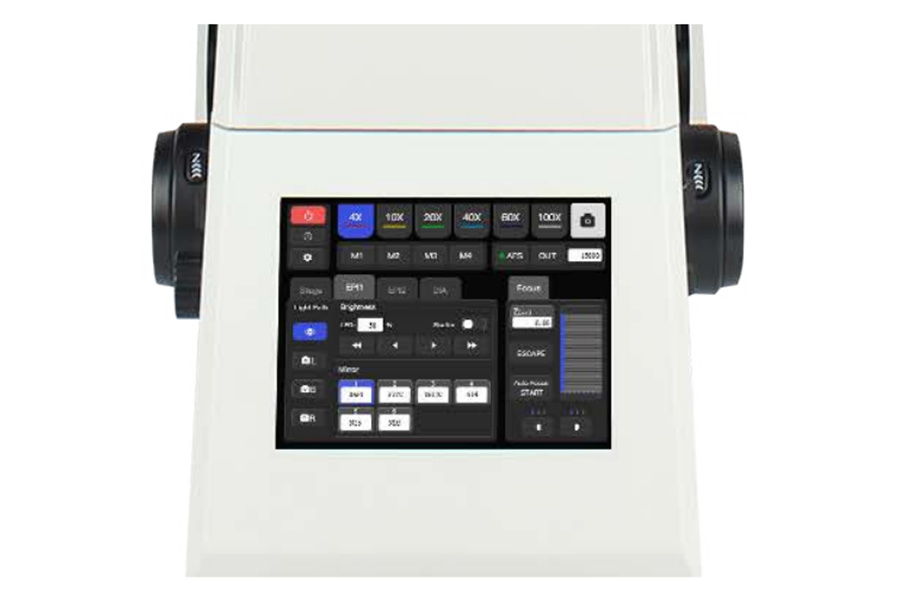

Touch LCD

In front of main body,display control light source intensity,objective magnification,fluorescence band,intermediate magnification,turnable
position,bertrand lens etc. ;

Intermediate magnification switching

Manual 1x,1.5x switching

Bertrand lens

Manual switch in and out of light path,focus adjustable

Port

Electric switching spittingl ratio:left side:visual=100:0;Right side:Visual=100:0;Bottom:Visual=100:0;

llumination system

Transmitted kohler llumination,3WLED illumination;Field of viewlaperture diaphragm;bend arm can tit 25°;Electric optical brake optional.

EPIilumination:LED optical iber(wavelength:485nm,525nm,365nm,405nm);Field of view/aperture diaphragm;2 hole filter insert plate;
Lamp source controller;Electric brake (software control)optional.

Condenser

7-hole electric turntable for phase contrast,Hoffmann phase contrast,DIC,ND filter,condenser NA=0.52,WD=30mm
7-hole manual turntable,condition detection,for phase contrast,Hoffmann phase contrast,DIC,ND filter,condenser NA=0.52,WD=30mm

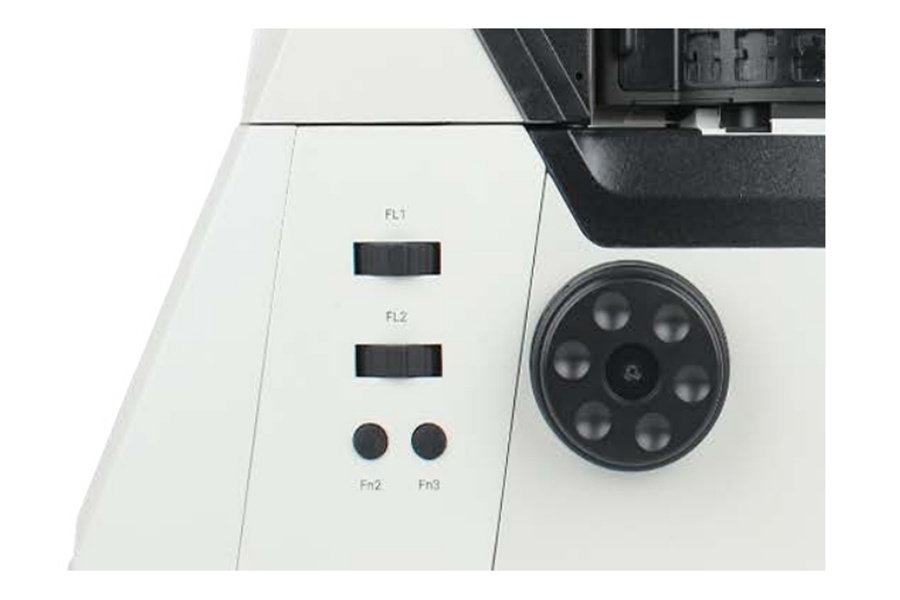

Fluorescent turntable

6-hole electric fluorescent turntable(B,G,U,R standard);φ25/30 light pass;Electric optical brake;
6-hole manual fluorescent turntable(B,G,U,R standard);φ25/30 light pass;Manual optical brake;

Double-layer fluorescence
heighter

Z-axis heightening base;Fluorescent turntable heightening seat;stage heightening seat

DIC attachment

DIC prism insert can be placed in nosepiece slot;DIC polarizer;analyzer slide plate;

Controller

 XYZ electric control;Display objective magnification,fluorescence band and other states;Shortcut key setting;

Software

NOMIS Pro Ximage analysis software

Host side port

1×/M52 relay lens Confocal left port;1.8x M52 camera relay lens
