Computer-based high-definition video microscope with 2/3" large-target HDMI industrial camera, 1080P, with measurement function, local digital zoom, color saturation and 3 levels of HDR adjustable, c-mount

▍Product Features
Equipped with 2/3" inch super large target surface, 1080P, HDMI industrial camera, c-mount
with measurement function, local digital magnification, color saturation and 3-level HDR adjustable
computer-type high-definition video microscope PNU-3911D1 is based on customer needs to improve the traditional stereo microscope observation method, and present the image under the microscope to the observer in the form of digital display, reducing the fatigue intensity of the inspectors' eyes during long-term inspections and the damage to the neck, shoulders and waist caused by a long posture. At the same time, it can achieve simultaneous observation and monitoring by multiple people. The camera is connected to the computer host and has built-in image measurement software. It can realize functions such as scanning code upload and taking pictures, measurement, and data storage to improve the inspection quality.
The computer-type high-definition video microscope PNU-3911D1 is a combined microscope that can be matched according to customer on-site needs or customized according to requirements. It is mainly composed of five parts: optical system, industrial CCD imaging system, bracket system, lighting system and display part.

▍Technical Parameters

model	PNU-3911D1
Optical magnification	0.67-4.5 times
Optional optical magnification	6.7-45 times
Digital magnification	16X-108X
Optional digital magnification	10X-300X (optional 0.5X objective lens and 2X objective lens)
Features	Must be connected to a computer host, scan code, take photos, depth of field fusion, image stitching, video recording, measurement, data output

System detailed parameters
Optical system MSS-72TR fixed frame and fixed magnification (fixed magnification lens specially designed for measurement, accurate measurement is guaranteed)
Zoom ratio	1.：6.7
Zoom range	0.67 times --- 4.5 times
Objective lens fixed zoom position	0.67X, 0.8X, 1.0X, 1.2X, 1.5X, 2.0X, 2.5X, 3.0X, 3.5X, 4.0X, 4.5X, 11 gears for precise frame setting
Main objective	1x
CCD interface	0.5x
Working distance	105mm
Center distance	150mm
eyepiece	Large field flat eyepiece EPA10×/Φ22
Optional eyepiece	WF15X/Φ16 /WF20X/Φ12 /WF30X/Φ8
Bracket system
Focusing lens frame	Coarse focus hand wheel, the focus hand wheel is adjustable in tightness, and the lifting range is 50mm
Column type stand	Φ32*350（mm）
Work Platform	Size 380×260×16mm Black metal
Lighting system
External light source	LED ring light, input voltage: AV100~240V wide voltage, brightness continuously adjustable
Optional
Work Platform	Customized according to required size
Focusing lens frame	Coarse and fine focusing hand wheel, coarse adjustment stroke 45mm, fine adjustment accuracy 0.02mm
light source	White LED ring light
monitor	Customized according to required size

▍CCD imaging system

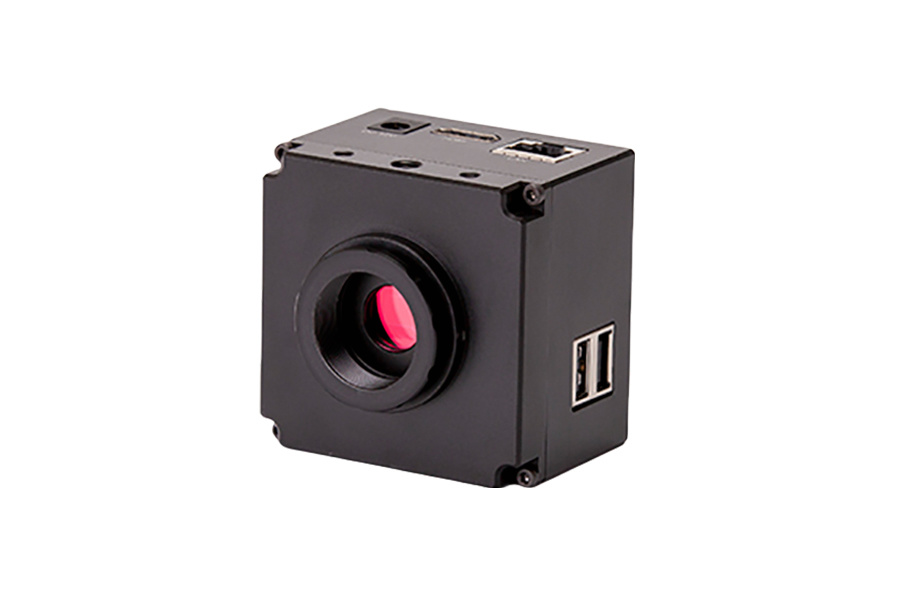

model	HDMI-311WO-IFQ-10
Resolution	1920*1080
Pixel size	5.0μm
Optical size	2/3"
Color Depth	12:12:12 RGB
Frame rate	Real acquisition 60fps
Color Adjustment	Manual/Automatic
Brightness adjustment	Manual/Automatic
Photo storage method	USB storage
Measurement functions	Circle, sector, straight line, line spacing, arbitrary polygon, etc.
power supply	DC 12V, 2A
Dimensions	65 mm x 65 mm x 50 mm
Operating humidity	5%～85%
Operating temperature	0~60°C
Output method	HDMI output

▍Microscope configuration list

sequence	Parts Name	quantity
1	Lenses	1
2	Industrial Cameras	1
3	light source	1
4	USB3.0 data cable	1
5	Scale 0.01mm	1

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
