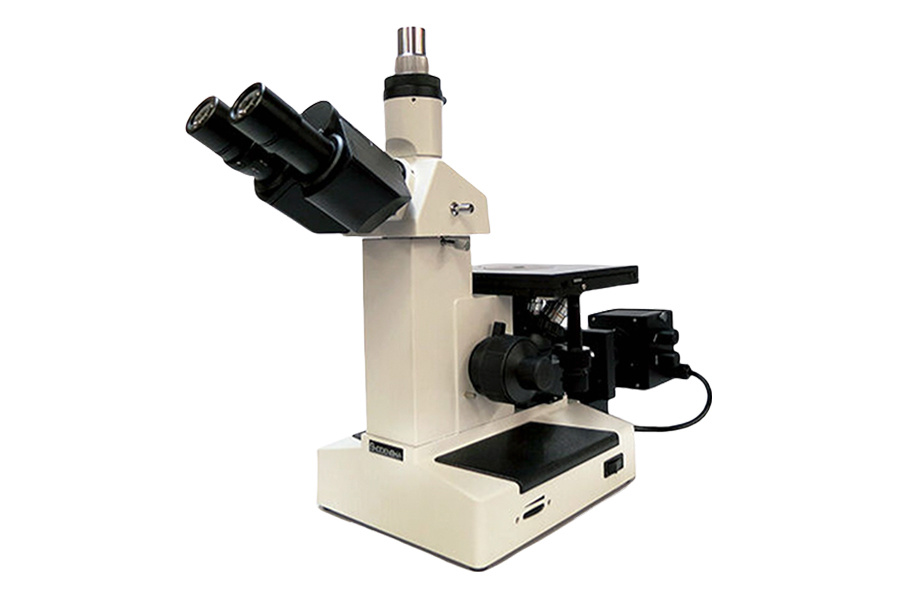

our inverted-type metallographic microscope MSS-M-D4K, high quality of wide angle graphic can be observed by using the plan apochromat object lens or wide angle's eyepiece lens.

It also can be use the for quality control of mineralogy, precision machinery industry or even chemical industry etc..Because object can be observed from below, it is conveniance for thick object's observation.

▍Product features
Metallographic microscope(ultra HD microscope) is a microscope that is suitable for observation of the surface of metal or non translucent object.For our inverted-type metallographic microscope MSS-M-D4K, high quality of wide angle graphic can be observed by using the plan apochromat object lens or wide angle's eyepiece lens.
It also can be use the for quality control of mineralogy, precision machinery industry or even chemical industry etc..Because object can be observed from below, it is conveniance for thick object's observation.
Epi-illumination for polorized observation.
It is possible to attach either C mount camera or microscope camera.
※100x object lens (Oil immersion lens),

▍Technical Parameters

Total magnification	Eyepiece lens	Object lens	Focus point's adjustment
50x,100x,200x,400x,1000x	10ｘ （18mm）	Plan apochromat object lens（No cover glass） 5x, 10x, 20x, 40x, 100x	Coaxial Coarse/Fine Focus System （Tension adjustment mechanism, limit stopper, minimum scale 0.002mm）
Revolver	Interpupillary distance	Lens barrel	Filter
Revolver（5 pins）	53-75mm	Triple lens head	Filter（yellow、blue、green、frosted glass）
Stage	Lighting	Power supply	Dimension
Mechanical stage 180x150mm	6V 20W Halogen lamp（With dimming mechanism）	AC100V　50/60Hz	200x580x360（H）mm
Weight
8.5kg
