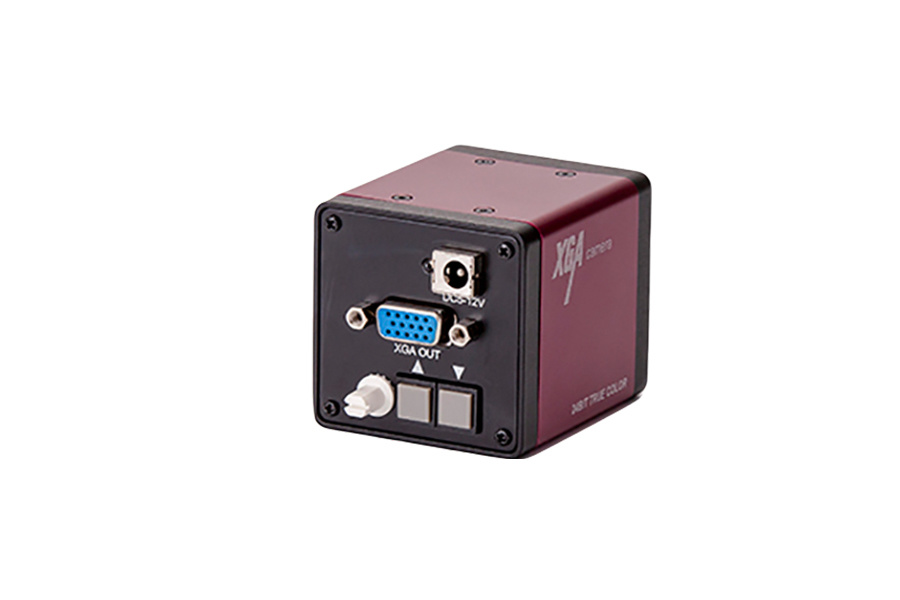

1.3 MP XGA/VGA high definition Industrial camera 1280x1024 resolving power Auto Exposure Automatic white balance C-mount

▍Features
Camera directly  to PC displayer，XGA  Format , Digital processing core, No computer needed.
Inside Overlay Graphic :  4 horizontal and 4 vertical lines; each single line can be changed into 6
different colors and full screen shifted by manual operation;every line in one pixel width make it
more precise for alignment.
Full frame 60fps@1024×768,@1280*1024,@1280*720,progressive scan; RGB 8:8:8, 24bit  color
depth; High speed real-time vivid image greatly decrease operation fatigue ;
1280x720（match16:9 displayer）;
1280x1024（match 5:4 displayer）;
1024x768（match 4:3 displayer）。

▍Application Field

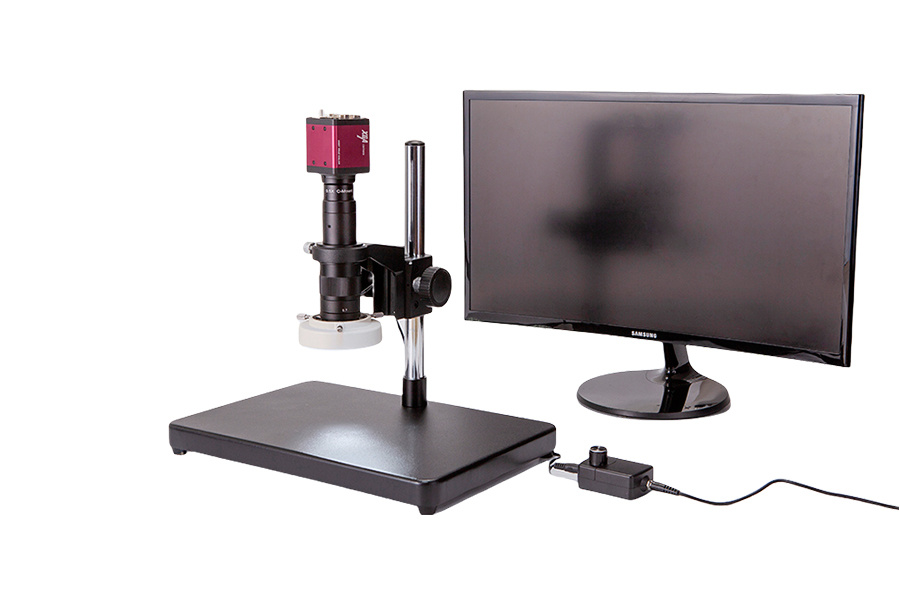

PCB inspection, Semiconductor and other components inspection, Medical Image ,Microscope Image,Product Package，Quality Inspection, Robot Vision and so on.

Cross line display / hide possible.
(both white and black lines can be displayed)

Arbitrary line display
Capable of displaying or hiding up to 4 arbitrary lines

Line color change.
Display / hide free setting.
Line position.



Cross line display / hide possible.
(both white and black lines can be displayed)

▍Technical Parameters

Model	XGA-241WN-U
Resolution	1024*768, 1280*720, 1280*1024
Pixel Size	4.4μm×4.4μm
Optical Size	1/2.5"
Color Depth	8:8:8 RGB ( 24bit True Color)
Frame Rate	30fps
Color Adjust	Manual/Auto
Luminance Adjust	Manual/Auto
OSD	Yes
Overlay Graphic	8 Crosshairs
Power Input	DC 12V, 2A
Dimension	70mm x 52mm x 52mm
Operation Moisture	5%～85%
Operation Temperature	0~60°C
Output Interface	VGA Output
Reticle Function	8 Lines Can move all screen，They can be changed six colors
