Industrial camera with large field of view. Built-in precise optical focus system, combined with fast software algorithm, can automatically focus in real time. Within the adjustable range, no adjustment is required, automatic focus, and the picture is clear.
This camera outputs high-definition HDMI video signal, automatic exposure, automatic white balance, automatic adjustment of saturation, and automatic wide dynamic range. The camera has functions such as image storage, video recording, and reference judgment. The operation is simple, and all operations can be completed with a mouse.
Built-in patented image processing technology developed by our company, the color restoration is true, the details are rich, and it is very helpful for industrial special detection.
This product is widely used in industrial detection, medical observation, teaching and scientific research, automation systems and other fields.

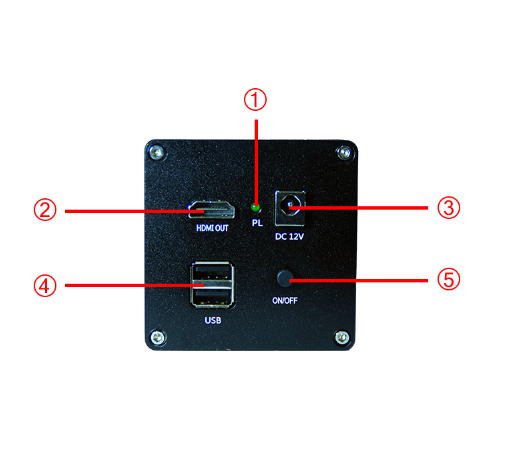

①—Power indicator light
②—HDMI output
③—12V power port
④—USB port
⑤—Start/shutdown button

▍Technical Parameters

HDMI Camera 4611
Chip structure	HIS+ARM
operating system	LINUX 3.10
Kernel structure	Dual-core Cortex-A9
Clock speed	1Ghz
Optical size	1/3”
Resolution	1920×1080
Frame rate	60fps
USB interface	2 USB ports, can be connected to USB flash drive, wireless mouse or keyboard
How to operate	Mouse Operation
Operating voltage	DC 12V
Operating temperature	-10 degrees -70 degrees
Dimensions	70*70*140
weight	300g
