eyepiece

standard layout

Auxiliary objective 0.5X

Auxiliary objective 1.5X

Auxiliary objective 2X

Working distance is 100mm

Working distance is 165mm

Working distance is 45mm

Working distance of 30mm

amplified factor

field range

amplified factor

field range

amplified factor

field range

amplified factor

field range

10X/20mm

7X

28.6mm

3.5X

57.1mm

10.5X

19mm

14X

14.3mm

45X

4.4mm

22.5X

8.9mm

67.5X

3mm

90X

2.2mm

15X/15mm

10.5X

21.1mm

5.25X

42.8mm

15.75X

14.3mm

21X

10.7mm

67.5X

3.3mm

33.75X

6.7mm

101.25X

2.2mm

135X

1.7mm

20X/10mm

14X

14.3mm

7X

28.6mm

21X

9.5mm

28X

7.1mm

90X

2.2mm

45X

4.4mm

135X

1.5mm

180X

1.1mm

25X/9mm

17.5X

12.9mm

8.85X

25.4mm

26.2X

8.6mm

35X

6.4mm

112.5X

2.0mm

56.3X

4.0mm

168.8X

1.3mm

225X

1.0mm

30X/8mm

21X

11.4mm

10.5X

22.9mm

31.5X

7.6mm

42X

5.7mm

135X

1.8mm

67.5X

3.6mm

202.5X

1.2mm

270X

0.9mm

enlargement factor

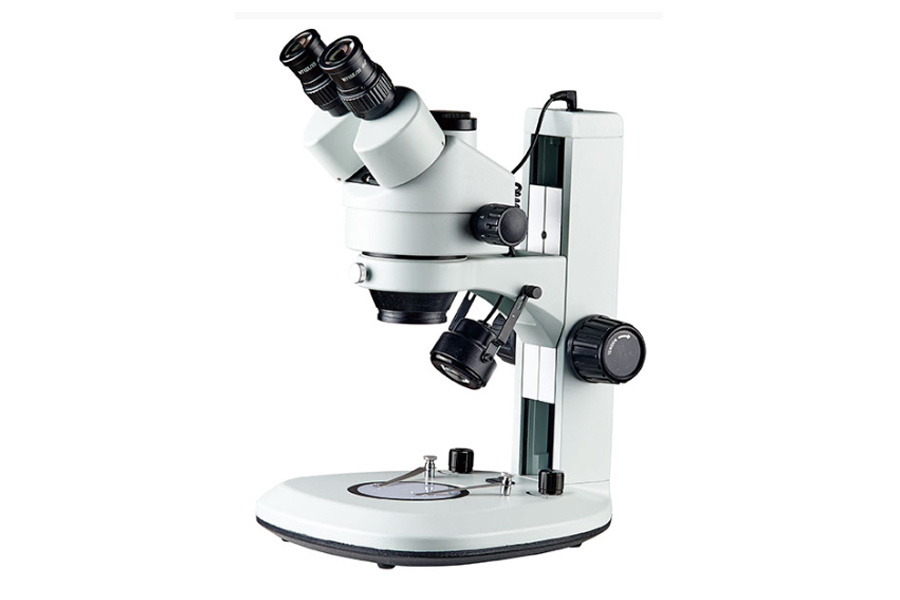

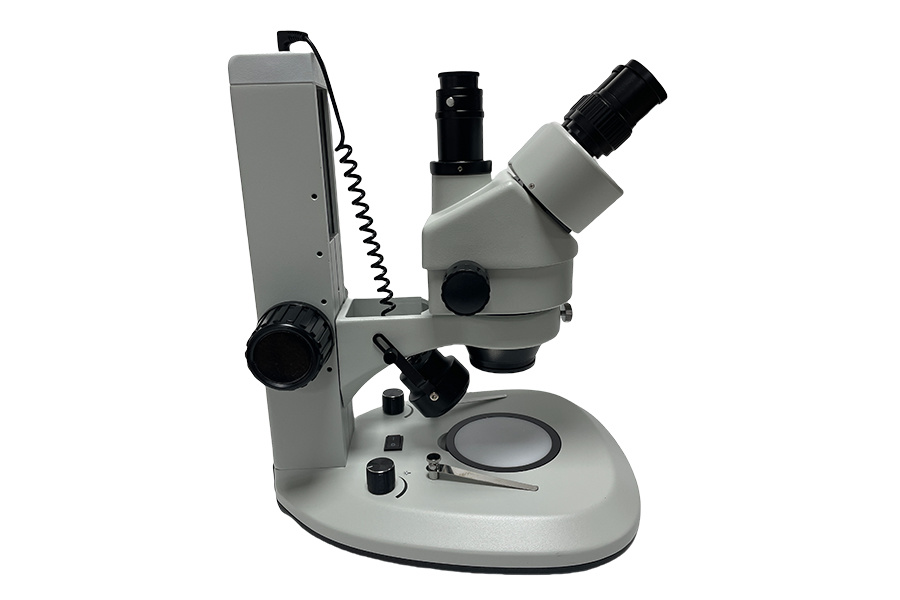

Standard configuration: 7X-45X, optional eyepiece and auxiliary objective lens can be extended to 3.5X-270X, continuous doubling

eyepiece

Standard configuration: 10X / 20mm, large field of vision, wide Angle, high eye point, to provide convenience for observers wearing glasses

Optional lens

10X/20mm,15X/15mm,20X/10mm,25X/9mm,30X/8mm

viewing head

45° tilt, 360° rotation, pupil distance 54-76mm; bilateral visual adjustment (± 5)

Hinged mesh, spectral ratio 0% / 100%, 50% / 50%, 20% / 80%

objective

0.7X-4.5X Continuous change zoom, objective lens change zoom ratio 6.4:1 to ensure that the image plane focus

attachment objective

Optional 0.3X,0.5X,0.7X,0.75X,1.5X, 2X

Focused bracket

Vertical arm adjustable focus bracket, hand wheel loose and tight adjustable, lifting range of 106mm

lampstand

J3L vertical arm LED lighting base, optional other base, see the base component drawing

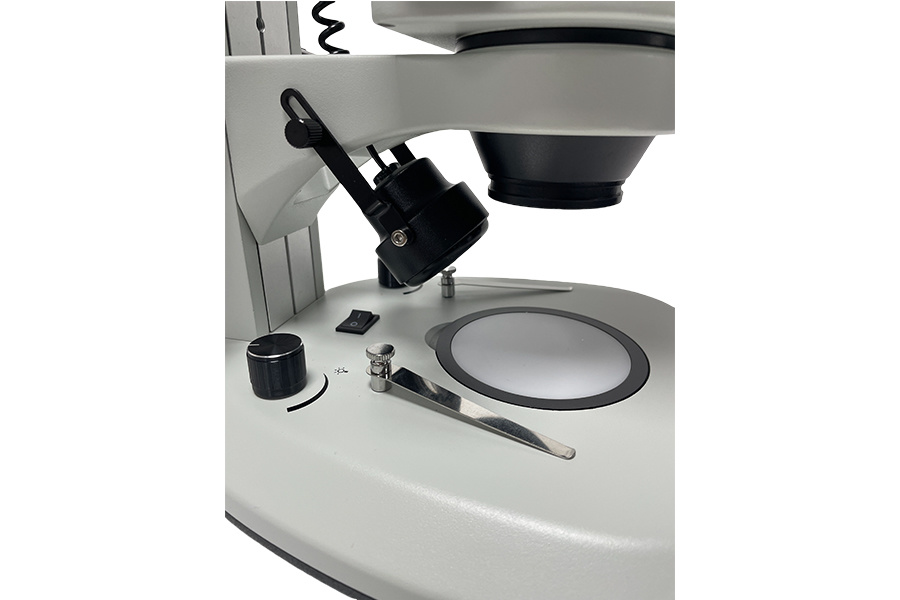

lighting

Up and down LED lighting, independent switch brightness is adjustable

Three eye interface

With the three-eye rod and CTV, it can be connected to ordinary camera, digital camera, industrial camera, CCD
