▍Product Introduction

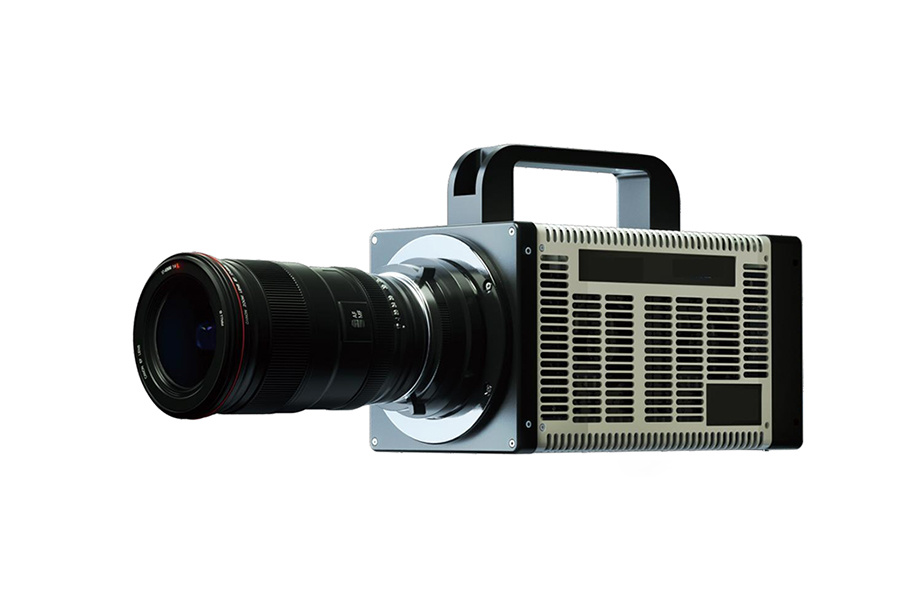

A comprehensive high-speed camera designed for high-end scientific research, national defense and military industry, aerospace, high-speed industry and other fields, inheriting the excellent gene of strict quality control of the Deepview product family. Through meticulous polishing of the product, it presents the ultimate in appearance, structure, and performance. It not only has a data bandwidth of 100 Gbps, but also supports up to 24TB of optional memory to meet long-term recording needs.

▍Characteristic

•Supports up to 64 memory partitions
•Design of dual power redundant power supply interface
•Standard 10 Gigabit Ethernet data transmission interface, compatible with Gigabit Ethernet
•Support intelligent image triggering: automatically triggered as the image changes
•Support AE/ADR, quickly locate keyframes in 5 seconds
•PIV dual exposure interval 210ns

▍Classic applications

Blasting research Fragment analysis and bore testing

Discharge research Flow column discharge, plasma

Destructive testing Impact and fall Vibration and fracture

Process Improvement Mechanical motion and fault monitoring

Fluid analysis Jet, bubble PIV/PLIF/PTV

▍Specifications

Type
Full Resolution	1280×1024
Full Frame Rate	15800fps
Maximum Frame Rate	1150000fps
Minimum Exposure Time	100ns
Pixel Size	14.6um
Standard RAM	40/80/160/320GB selectable
Extended Memory	4/12/24TB selectable
Dynamic Range	60dB
Analog Gain	×2、×4、×8
Bit Resolution	8bit/10bit/12bit
PIV Shutter	≥210ns
Color	Monochrome (M)/Color (C)
ROI	support
Lens Mount	E interface, can be converted to F interface, C interface, EF interface
Data   Interface	10 Gigabit Ethernet, adaptive 2.5Gbps 1Gbps
Sensitivity	ISO67000(M)，ISO23000(C),
Fan   Control	Support on/off, adaptive speed based on temperature
Operating Temperature/Humidity	Standard -10~50 ℃, below 95% (no condensation), customizable -40~65 ℃ wide temperature version
Video  Signal Output	SDI、Ethernet
Recording  Mode	Start, End, Center, Random, Manual
Trigger   Mode	Manual IO、 image
External   Signal	Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal; Output: Trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal
Power  Supply	Dual power supply DC24V
Dimensions(excluding   lens)	217D×110W×110H, excluding protruding parts
Weight	3.8kg
Power   Consumption	55W
Standard Accessories	Power cord x 1, AC adapter x 1, Ethernet cable x 1, camera control software x 1, user manual x 1, factory certificate x 1



▍Performance

Resolution	Frame rate	Record time (memory)			Record time (hard drive)
		40GB	80GB	160GB	4TB	12TB	24TB
1280×1024	15800FPS	2s	4s	8s	3.4min	10min	20min
1280×768	2000FPS	2s	4s	8s	3.4min	10min	20min
1280×512	31500FPS	2s	4s	8s	3.4min	10min	20min
1280×256	62500FPS	2s	4s	8s	3.4min	10min	20min
1280×128	121000FPS	2s	4s	8s	3.4min	10min	20min
1280×164	221000FPS	2.3s	4.7s	9.5s	3.9min	11.8min	23.7min
1280×8	1150000FPS	3.6s	7.2s	14.4s	6min	18min	36min

※When the recording time is 8-bit grayscale color code, the 320GB version has twice the recording time of 160GB.

※The hard drive version is limited to frame rate real-time storage.
