▍Product Introduction

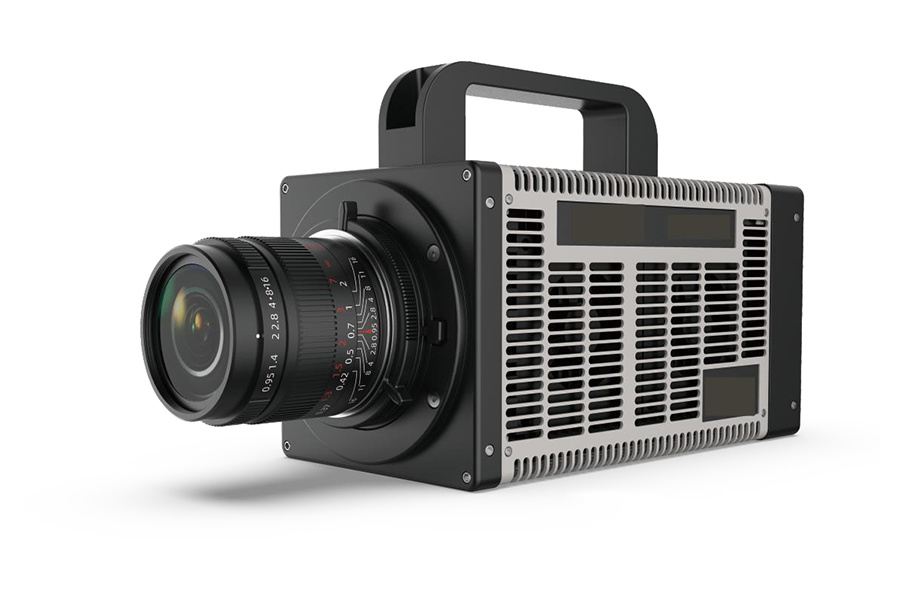

A comprehensive high-speed camera designed for high-end scientific research, national defense and military industry, aerospace, high-speed industry and other fields. It adopts special customized sensors and unique circuit design, which enables it to have an effective bandwidth of 170Gbps and excellent imaging quality. At the same time, it has rich expandable interfaces, providing more possibilities for high-speed imaging applications.

▍Characteristic

•Design of dual power redundant power supply interface
•Non volatile large capacity storage inside the body, supporting up to 24TB
•Rich ISP processing, high-definition and excellent color picture quality
•Standard 10 Gigabit Ethernet data transmission interface, compatible with Gigabit Ethernet
•Support intelligent image triggering: automatically triggered as the image changes
•Support AE/ADR, quickly locate keyframe data in 5 seconds

▍Classic applications

Welding research Observation of molten pool and transition of molten droplets

Process Research Mechanical motion and fault monitoring

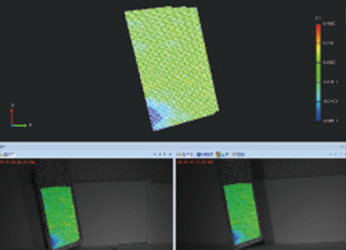

Mechanics research Strain testing, modal testing

Destructive testing Impact and fall Vibration and fracture

Fluid analysis Microfluidics, bubbles, droplets

▍Specifications

Type
Full Resolution	2560×2016
Full Frame Rate	3600fps
Maximum Frame Rate	50000fps
Minimum Exposure Time	1us
Pixel Size	9um
Standard RAM	40/80/160/320GB selectable
Extended Memory	4/12/24TB selectable
Dynamic Range	64dB
Analog Gain	×2、×4、×8
Bit Resolution	8bit/10bit/12bit
Shutte Mode	Global shutter
Color	Monochrome (M)/Color (C)
ROI	support
Lens Mount	E interface, can be converted to F interface, C interface, EF interface
Data   Interface	10 Gigabit Ethernet, adaptive 2.5GigE 1GigE
Sensitivity	ISO10000(M)，ISO3000(C)
Fan   Control	Support opening and closing, according to Temperature adaptive speed
Operating Temperature/Humidity	Standard -10~50 ℃, 95% The following (without condensation) can be customized -40-65 ℃ wide temperature version
Video  Signal Output	SDI、Ethernet
Recording  Mode	Start, End, Center, Random, Manual
Trigger   Mode	Manual IO、 image
External   Signal	Input: trigger (TTL/switch) signal, synchronization signal, ready signal, event signal, IRIGB code signal; Output: Trigger (TTL/switch) signal, synchronization signal, ready signal, exposure signal, recording signal
Power  Supply	Dual power supply DC24V
Dimensions(excluding   lens)	217D×110W×110H, excluding protruding parts
Weight	3.8kg
Power   Consumption	55W
Standard Accessories	Power cord x 1, AC adapter x 1, Ethernet cable x 1, camera control software x 1, user manual x 1, factory certificate x 1



▍Performance

Resolution	Frame rate	Record time (memory)			Record time (hard drive)
		40GB	80GB	160GB	4TB	12TB	24TB
2560×2016	3600FPS	2.3s	4.6s	9.2s	3.8min	11min	23min
2560×1536	4800FPS	2.3s	4.6s	9.2s	3.8min	11min	23min
2560×1280	5600FPS	2.3s	4.6s	9.2s	3.9min	11min	35min
2560×512	11000FPS	2.9s	5.8s	11.6s	4.9min	14min	28min
2560×256	17000FPS	3.8s	7.7s	15.2s	6.5min	19min	38min
2560×128	23000FPS	5.5s	11s	22s	9.5min	28min	56min
2560×32	50000FPS	10.4s	22.8s	45.6s	17min	52min	104min

※When the recording time is 8-bit grayscale color code, the 320GB version has twice the recording time of 160GB.

※The hard drive version is limited to frame rate real-time storage.
