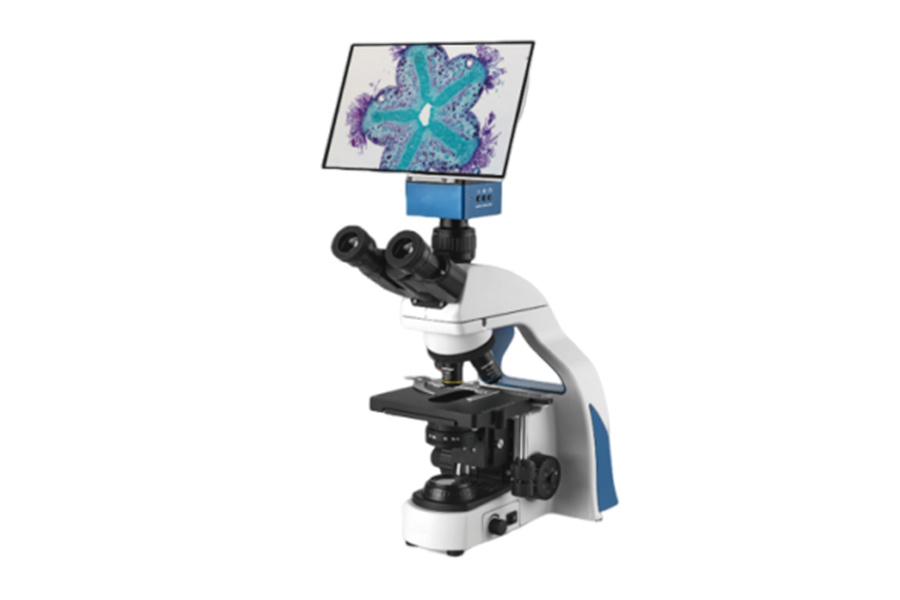

MSS-C-EX32

Category:

Email:

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

	Specification and description
Model	MSS-C-EX32
Eyepiece	High point Wide field plan eyepiece PL10X/20mm,diapter adjustable
Objectives	plan Achromatic objective 4X/0.10,WD=15mm
	plan Achromatic objective 10X/0.25,WD=10.8mm
	plan Achromatic objective 40X/0.65,WD=0.8mm
	plan Achromatic objective 100X/1.25,WD=0.21mm
Viewing Head	30°inclined,gemel trinocular viewing head,diapter range:47~75mm,splitting ratio R:T=8:2
	Low position Coaxial coarse and fine adjustment,range 25mm,precision:0.002mm,with coarse adjustment stop and tightness adjustment,with condenser braket(Preset Center,center elevated),100V-240V_AC input,highpower single 3W LED(cool/warm optional,cool light 4750K-5500K,warm light 2850K- 3250K,center preset),intensity adjustable,with back storage space
Nosepiece	Quadruple nosepiece
Stage	150mmX140mm double layer mechanical stage,double section(slide glass)clamp,moving range:76mm- 50mm,precision 0.1mm(Triangular guide rail)
	N.A.1.25condenser,fly eyes illumination system,phase contrast slot,dark field connector,ajustable field aperture,collecting mirror preset center.
	Inner hexagon spanner M3
	Inner hexagon spanner M1.6 (to use for phase contrase slide board)
	Spanner for coarse wheel tightness
Packing	EPE and paper carton,1pc/carton,carton size: 52.0X49.0X27.0cm,G.W./N.W.9.5/7.2kgs

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.
Thank you! Have a nice day!
