MSS-C-M227

Category:

Email:

Welcome to Shanghai Mengsheng Sheng International Trade

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

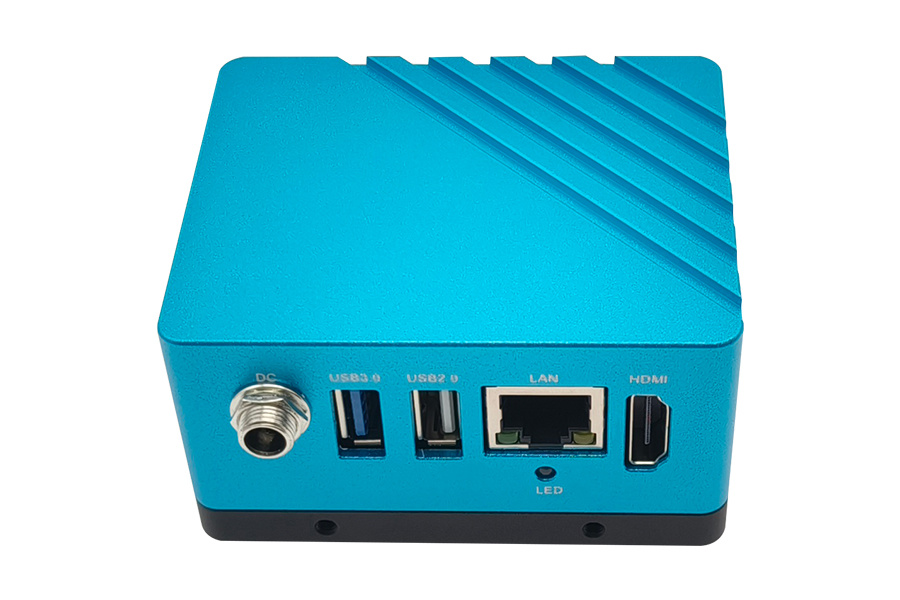

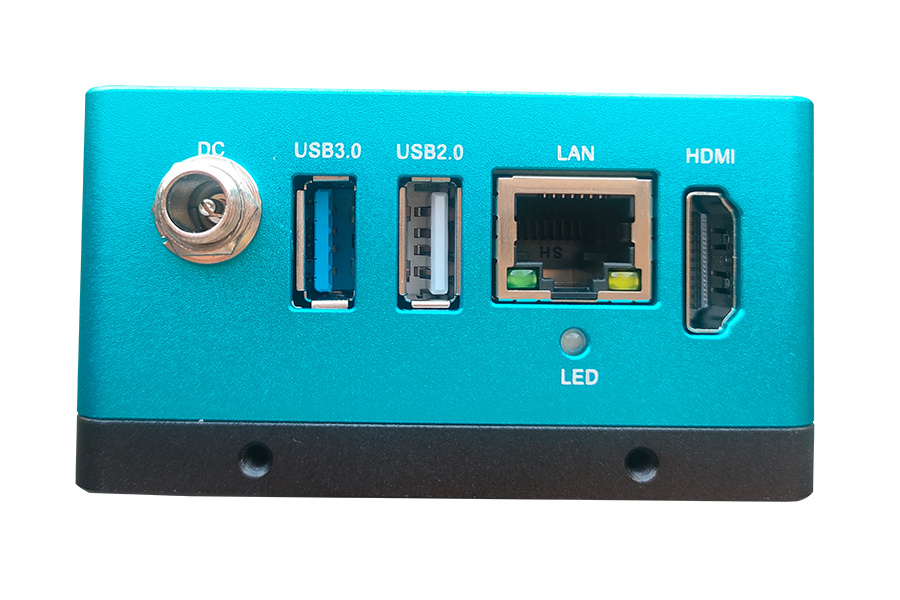

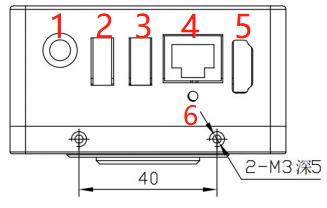

Introduction to camera interface

Camera matching device

1.Front matching: C port microscope or C port lens.

2.Backend matching: HDMI is supported for 4K@60Hz, 4K@50Hz, 1080P@60Hz or 1080P@50Hz displays.

Camera installation instructions

1. Connection between M227 camera and C lens.

2. Connect the display to the camera with HDMI cable.

3. Connect the computer and camera with RJ45 network cable.

4. Mouse can be connected.

5. Use the adapter power supply to power the camera.

Camera specifications

imaging sensor	CMOS multicolour
Effective pixels	Eight megapixels
Target size	1/1.8〞
Image size	2.0
The boot screen appears	Enable the boot screen
menu	Full digital UI design
mode of operation	mouse action /PC
Camera interface	C mould
source DC	DC12V
Output mode	HDMI/ internet access
white balance	Manual/automatic
How it's exposed	Manual/automatic
display resolution	4K@60fps/4K@50fps/1080P60@fps/ 1080P50@fps
scanning mode	line by line scan
Electronic shutter speed	1/50s(1/60s)～1/10000s
working temperature	0℃～50℃
Digital amplification	support
memory function	Support USB2.0/3.0 disk external storage and PC Supports camera internal storage

Precautions for use

1. The equipment needs to use DC12V power supply.

2. Support pedal and controller operation.

* All accessories are subject to physical goods

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
